Art Photonics  |  SKU: AP11380

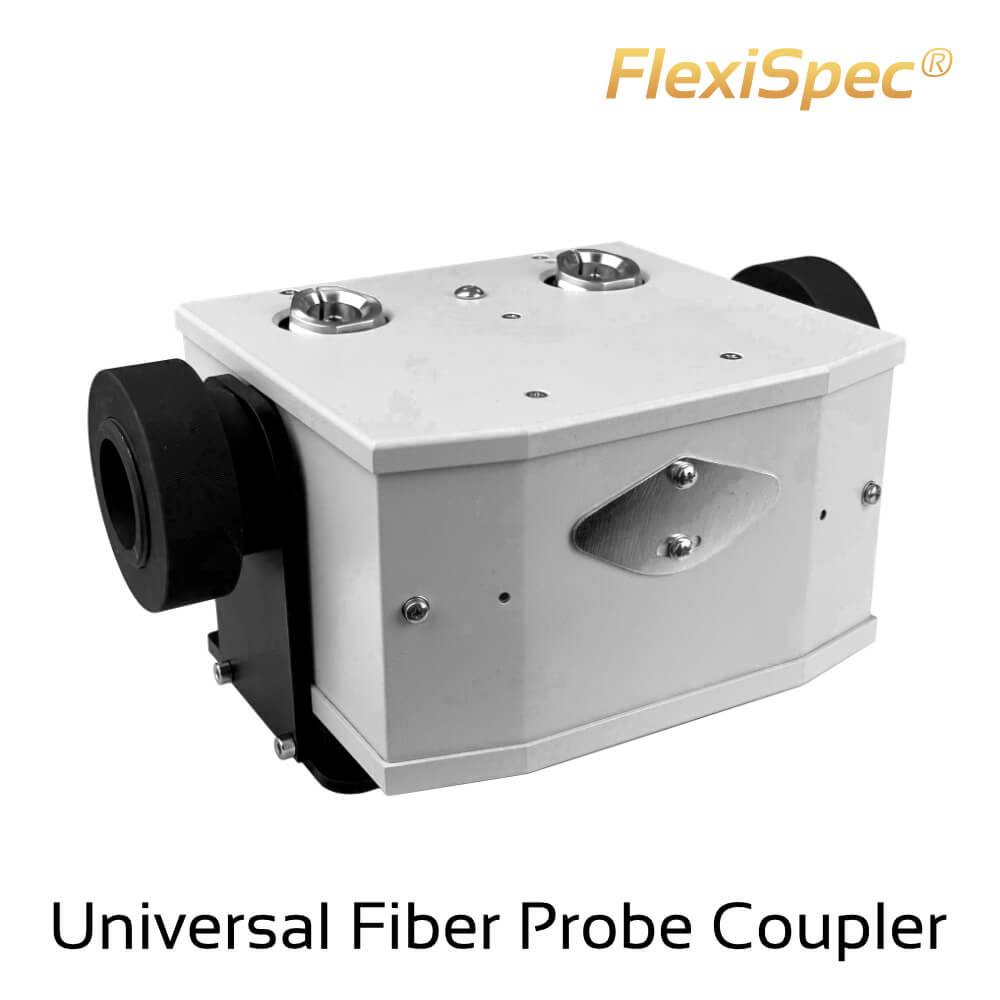

Universal Fiber Probe Coupler

Shipping calculated at checkout.

Fiber Probe Couplers are designed to connect Fiber Optic Probes with FTIR spectrometers and to perform the remote analysis and reaction monitoring. Mirror design of FlexiSpec® Fiber Probe Couplers provides high coupling efficiency for any probe used for process-spectroscopy in broad spectral range 0.2-18µm.

Main Features:

  • Efficient coupling of fiber probe to FTIR-spectrometer
  • Mirror optics for a broad spectral range
  • In/Out ports compatible with SMA-terminated fiber probes
  • Adjustable mirrors to maximize coupling efficiency
  • Easy to install in sample chamber

Applications:

  • Upgrading FTIR instruments with fiber optic probe for remote reaction monitoring
  • Process-control with robust fiber probe terminated by SMA or other connectors

Specifications:

Fiber Probe Coupler Model Number of Mirrors Compatible FTIR-Spectrometer Model
Universal Fiber Probe Coupler
 6
  • VERTEX 70v serie (Bruker™)
  • Tensor 27, 37 (Bruker™)
  • FP-8600 (JASCO™)
  • IRSpirit (Schimadzu™)

    customized baseplate for any model
