SurveyIR Reflection/Transmission Dia ATRDeluxe

Red WaveSKU: 101-00-0003

Sale price$22,250


The SurveyIR™ is a new FT-IR Microspectroscopy accessory designed to deliver the ultimate user experience for a broad range of microanalysis techniques. The unique ergonomic design allows seamless interaction between operator and instrument. SurveyIR’s compact configuration and alignment free optical design facilitates simple mounting in the FT-IR spectrometer sample compartment.

Unit is pre-configured for all Thermo Nicolet FTIR models.  Requires a standard FTIR configuration with a room temperature DTGS detector.  The ATR attachment allows analysis of millimeter sized objects where contact is viewed through the diamond crystal.

The typical range (for most FTIR models) is 6000-400 cm-1.  However for research grade FTIRs such as the Nicolet 6700 or IS50 the Reflection and Transmission applications can range from 12,000-100 cm-1, depending on the source, beam splitter, and detector type(s) used.

Applications include:

  • FT-IR microspectroscopy of fibers, paints, polymers, fabrics, pharmaceutical active ingredients, excipients, narcotics, explosives and minerals
  • Analytical Services
  • Quality Assurance
  • Science Education
  • Forensic Labs
  • Drug Characterization
  • Fiber Analysis
  • Contaminant Identification
  • Surface Defect Characterization
  • Art Conservation

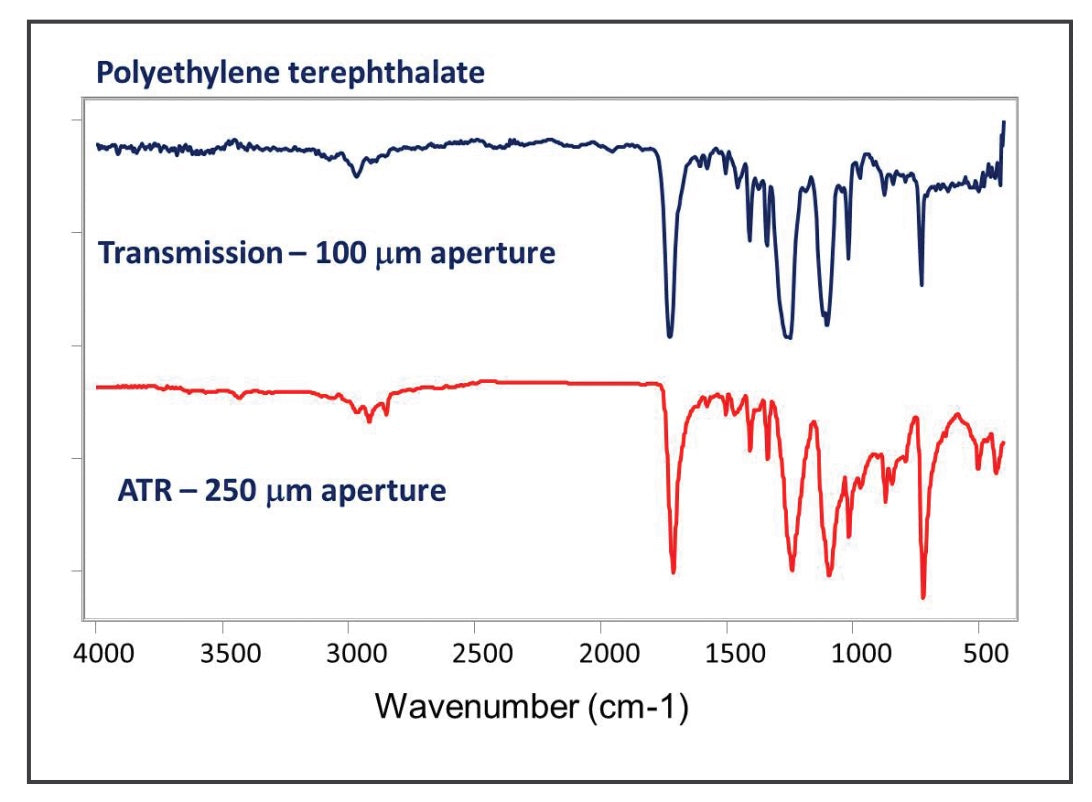

Transmission, Reflection and Diamond ATR
Transmission, Reflection, and Oblique Illumination
Manual x, y stage fits 1” x 3” standard microscope slides
Contact Alert for ATR sample measurements
Course/Fine Z focus adjust
Diamond ATR Snap-on plate
Integrated Digital 5 mega pixel CMOS color video camera
eSpotTM Software (USB 2.0) control and image capture software.
Compatible with WindowsTM 7, 8, 8.1, and 10.
USB Cable 2.0 cable for software communication and power
Visible Illumination in Reflection, Transmission, and Oblique
Box of 10 low e glass 1x3 reflective slides
2 1x3 13mm 3 hole slides
