SurveyIR Microscope Unit for Reflection and Transmission

White Bear PhotonicsSKU: 101-00-0002RT

Sale price$15,000



The SurveyIR™ is a new FT-IR Microspectroscopy accessory designed to deliver the ultimate user experience for a broad range of microanalysis techniques. The unique ergonomic design allows seamless interaction between operator and instrument. SurveyIR’s compact configuration and alignment free optical design facilitates simple mounting in the FT-IR spectrometer sample compartment.

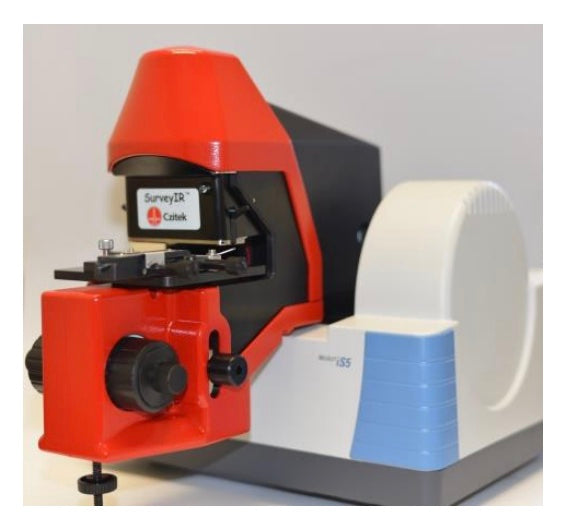

While the picture is shown with a Thermo Nicolet IS5 FTIR, it can be pre-configured for all Thermo Nicolet FTIR models.  Minimum requirement is a standard FTIR configuration with a room temperature DTGS detector.

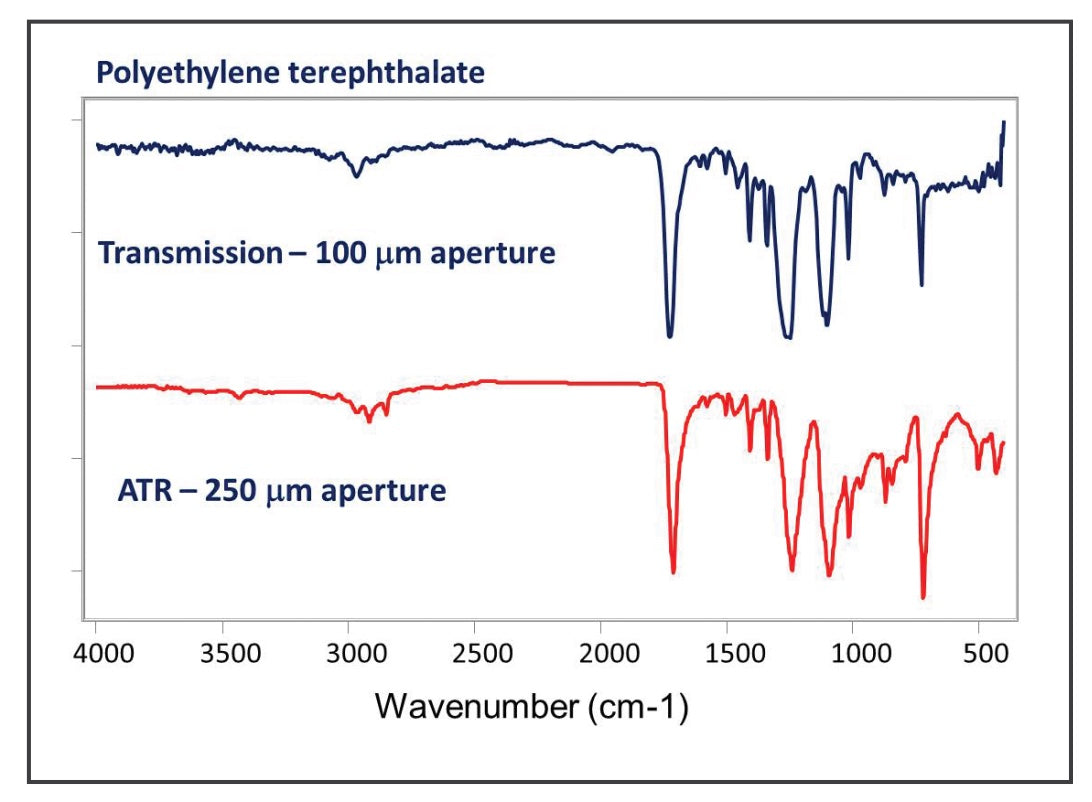

The typical range (for most FTIR models) is 6000-400 cm-1.  However for research grade FTIRs such as the Nicolet 6700 or IS50 the Reflection and Transmission applications can range from 12,000-100 cm-1, depending on the source, beam splitter, and detector type(s) used.

Applications include:

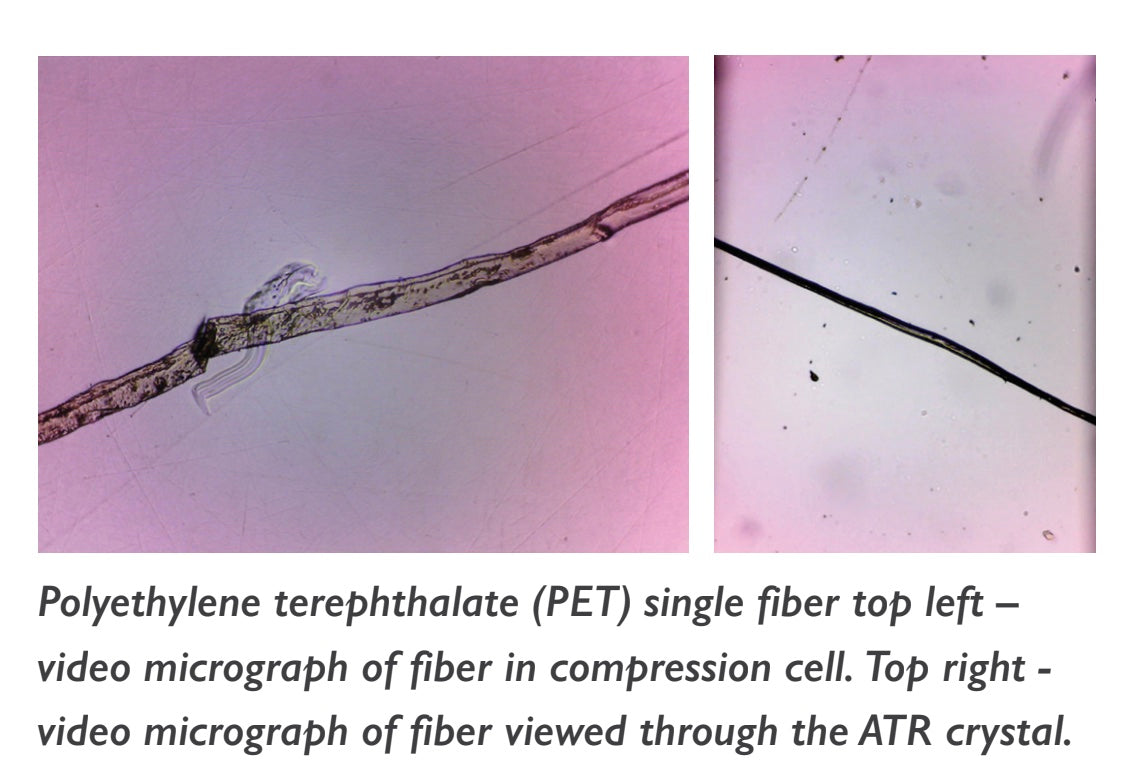

  • FT-IR microspectroscopy of fibers, paints, polymers, fabrics, pharmaceutical active ingredients, excipients, narcotics, explosives and minerals
  • Analytical Services
  • Quality Assurance
  • Science Education
  • Forensic Labs
  • Drug Characterization
  • Fiber Analysis
  • Contaminant Identification
  • Surface Defect Characterization
  • Art Conservation

SurveyIRTM Base Optical Unit Reflection and Transmission
Part Number Includes:
Optical Unit for transmission and reflection spectroscopy
Manual x, y stage fits 1” x 3” standard microscope slides
Course/Fine sample focus adjust
Integrated Digital 5 mega pixel CMOS color video camera, 2592 x 1944 maximum
Czitek eSpotTM Software (USB 2.0) microscope control and image capture software.
Compatible with WindowsTM 7, 8, 8.1, and 10.
USB Cable 2.0 cable for software communication and microscope power
Transmission, Reflection, and Oblique Illumination
Box of 10 lowE glass 1x3 reflective slides
2 1x3 13mm 3 hole slides
