Description

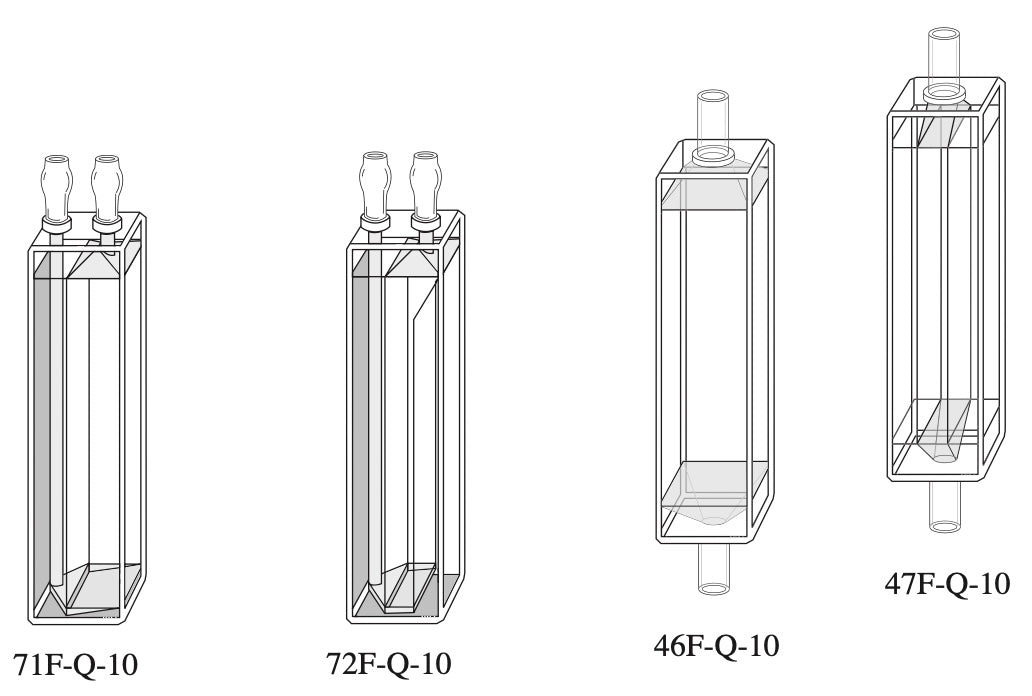

Fluorometer cells Type 46F (standard) and 47F (semi-micro) are for in-line continuous flow type applications, usually measuring at one wavelength. Samples normally flow from the bottom to the top.
Types 71F (standard) and 72F (semi-micro) fluorescent cells have long windows and will fit normal cell holders. They can be used with instruments of any 'Z' dimension and are particularly suit-able for any application where sample volume is not critical.
Starna 46F, 47F, 71F, 72F Flow Through Fluorometer Cells / Window Material: Spectrosil Quartz, Usable Range: 170-2700nm
|
Starna Catalog No |
Path Length (mm) |
Ext Width (mm) |
Ext Length (mm) |
Ext Height (mm) |
Sample Chamber Width (mm) |
Sample Chamber Length (mm) |
Sample Chamber Height (mm) |
"Z" Dim- ension (mm) |
Nominal Volume (ml) |
Number Polished Windows |
|
46F-Q-10 |
10 |
12.5 |
12.5 |
45 |
10 |
10 |
40 |
all |
4.000 |
4 |
|
47F-Q-10 |
10 |
12.5 |
12.5 |
45 |
4 |
10 |
40 |
all |
1.600 |
4 |
|
71F-Q-10 |
10 |
12.5 |
12.5 |
48 |
7 |
10 |
40 |
all |
3.000 |
3 |
|
72F-Q-10 |
10 |
12.5 |
12.5 |
48 |
4 |
10 |
40 |
all |
1.800 |
3 |
