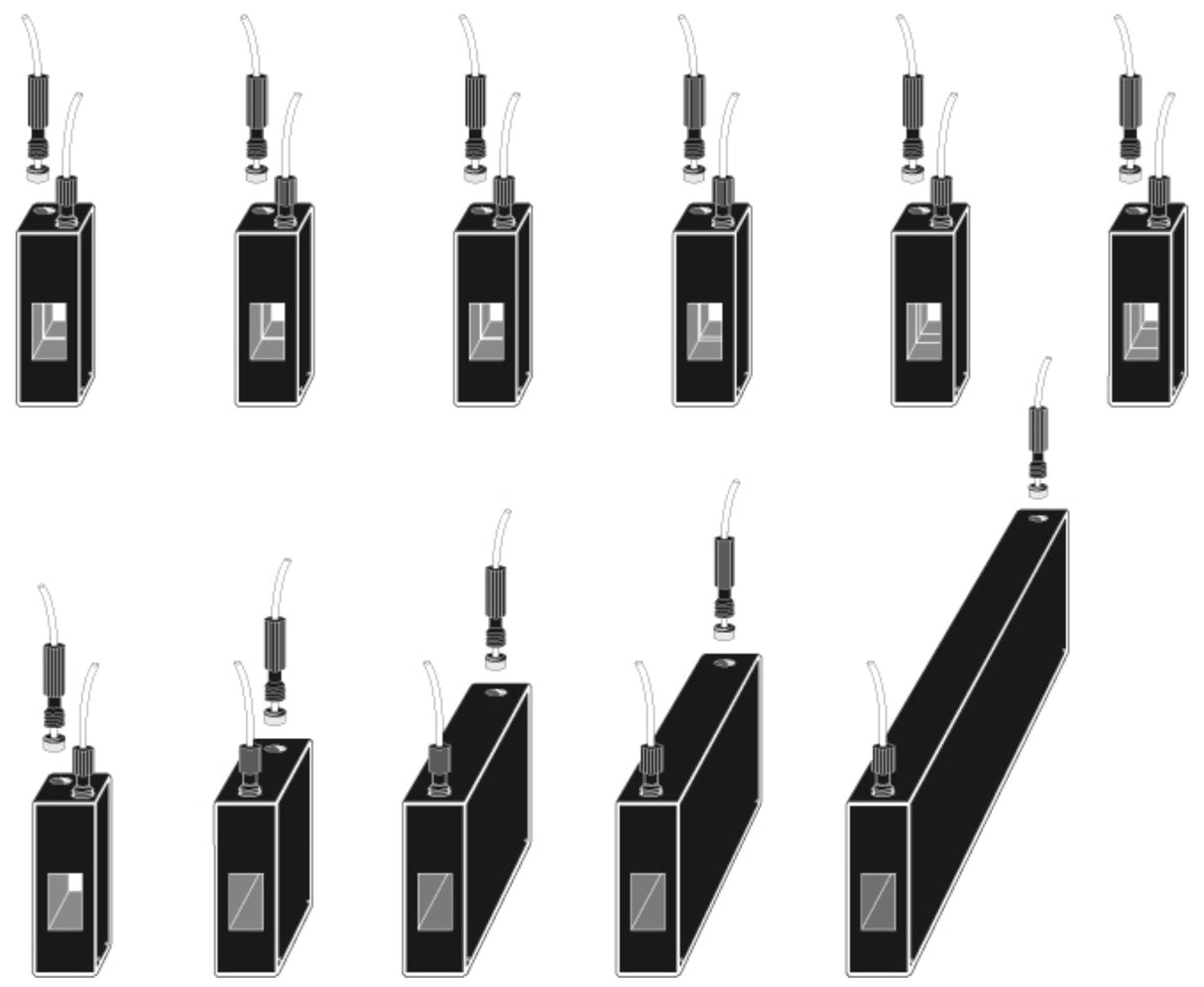

583.65-Q Series M6 Threaded Wide Aperture Quartz Flow Cells, 0.1-100mm

StarnaSKU: 583.65-Q-0.1/Z15

SKU: 583.65-Q-0.1/Z15
Price:
Sale price$986

Description

The Type 583.65 series of flow cells have a wide aperture (6.5mm) that are optimized for instruments with a wide light beam. They have a rectangular window in a black self masking configuration and are widely used for many stan- dard applications including Tablet dissolution. The sample chamber width of 6.5mm is available with path lengths of 0.1, 0.2, 0.5, 1, 2, 5, 10, 20, 40, 50, and 100mm. The inlet and outlet tubes are con- nected into the flow cell with a M6 threaded connector. The PTFE tubing has an outer diameter of about 1.6mm and an inner diam- eter of about 1mm. The length of the tubing is approximately 400mm. Each cell is supplied with an inlet and an outlet tube. Extra tubing sets may be purchased: Starna M6-SET Pair of M6 Fittings.

Starna 583.65-Q Series M6 Threaded Wide Aperture Flow Cells / Window material: Quartz, 170-2700nm

Starna

Catalog

No

Path

Length

(mm)

Ext

Width

(mm)

Ext

Length

(mm)

Ext

Height

(mm)

Int

Width

(mm)

Int

Length

(mm)

Int

Height

(mm)

"Z" Dim-

ension

(mm)

Nominal

Volume

(ml)

Number

Polished

Windows

583.65-Q-0.1/Z15

0.1

12.5

12.5

35

6.5

0.1

11

15

0.029

2

583.65-Q-0.2/Z15

0.2

12.5

12.5

35

6.5

0.2

11

15

0.036

2

583.65-Q-0.5/Z15

0.5

12.5

12.5

35

6.5

0.5

11

15

0.072

2

583.65-Q-1/Z15

1

12.5

12.5

35

6.5

1

11

15

0.072

2

583.65-Q-2/Z15

2

12.5

12.5

35

6.5

2

11

15

0.290

2

583.65-Q-5/Z15

5

12.5

12.5

35

6.5

5

11

15

0.360

2

583.65-Q-10/Z15

10

12.5

12.5

35

6.5

10

11

15

0.720

2

583.65-Q-20/Z15

20

12.5

22.5

35

6.5

20

11

15

1.400

2

583.65-Q-40/Z15

40

12.5

22.5

35

6.5

40

11

15

2.900

2

583.65-Q-50/Z15

50

12.5

52.5

35

6.5

50

11

15

3.600

2

583.65-Q-100/Z15

100

12.5

102.5

35

6.5

100

11

15

7.200

2

583.65-Q-0.1/Z20

0.1

12.5

12.5

35

6.5

0.1

11

20

0.029

2

583.65-Q-0.2/Z20

0.2

12.5

12.5

35

6.5

0.2

11

20

0.036

2

583.65-Q-0.5/Z20

0.5

12.5

12.5

35

6.5

0.5

11

20

0.072

2

583.65-Q-1/Z20

1

12.5

12.5

35

6.5

1

11

20

0.072

2

583.65-Q-2/Z20

2

12.5

12.5

35

6.5

2

11

20

0.290

2

583.65-Q-5/Z20

5

12.5

12.5

35

6.5

5

11

20

0.360

2

583.65-Q-10/Z20

10

12.5

12.5

35

6.5

10

11

20

0.720

2

583.65-Q-20/Z20

20

12.5

22.5

35

6.5

20

11

20

1.400

2

583.65-Q-40/Z20

40

12.5

22.5

35

6.5

40

11

20

2.900

2

583.65-Q-50/Z20

50

12.5

52.5

35

6.5

50

11

20

3.600

2

583.65-Q-100/Z20

100

12.5

102.5

35

6.5

100

11

20

7.200

2
