Description

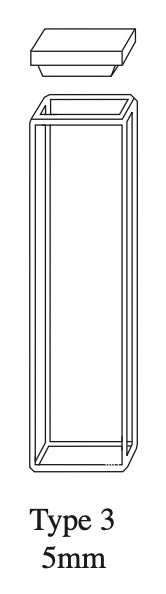

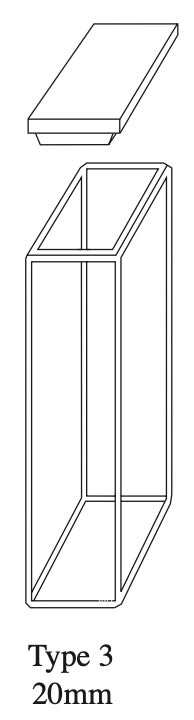

Standard rectangular fluorometer cells Type 3 are the most popular cells for general fluorescence measurement and they will fit virtually every fluorometer instrument. All four windows and the bottom of the cell are polished and because of the technique used in their construction they remain extremely flat, right to the very edge of the window, allowing them to be used in some laser applications. Each cell is supplied with a PTFE cover.
Starna 3-G Series Standard Rectangular Fluorometer Cells / Window Material: optical glass, Usable Range: 334-2500nm
|
Starna Catalog No |
Path Length (mm) |
Ext Width (mm) |
Ext Length (mm) |
Ext Height (mm) |
Int Width (mm) |
Int Length (mm) |
Nominal Volume (ml) |
Number Polished Windows |
Polished Base |
|
3-G-5 |
5 |
12.5 |
7.5 |
45 |
10 |
10 |
1.700 |
4 |
1 |
|
3-G-10 |
10 |
12.5 |
12.5 |
45 |
10 |
10 |
3.500 |
4 |
1 |
|
3-G-20 |
20 |
12.5 |
22.5 |
45 |
10 |
10 |
7.000 |
4 |
1 |
|
3-G-40 |
40 |
12.5 |
42.5 |
45 |
10 |
10 |
14.000 |
4 |
1 |
Starna 3-SOG-10 Standard Rectangular Fluorometer Cell / Window Material: Special Optical Glass, Usable Range: 320-2500nm
|
Starna Catalog No |
Path Length (mm) |
Ext Width (mm) |
Ext Length (mm) |
Ext Height (mm) |
Int Width (mm) |
Int Length (mm) |
Nominal Volume (ml) |
Number Polished Windows |
Polished Base |
|
3-SOG-10 |
10 |
12.5 |
12.5 |
45 |
10 |
10 |
3.500 |
4 |
1 |
Starna 3-Q Series Standard Rectangular Fluorometer Cells / Window Material: Spectrosil Quartz, Usable Range: 170-2700nm
|
Starna Catalog No |
Path Length (mm) |
Ext Width (mm) |
Ext Length (mm) |
Ext Height (mm) |
Int Width (mm) |
Int Length (mm) |
Nominal Volume (ml) |
Number Polished Windows |
Polished Base |
|
3-Q-5 |
5 |
12.5 |
7.5 |
45 |
10 |
5 |
1.700 |
4 |
1 |
|
3-Q-10 |
10 |
12.5 |
12.5 |
45 |
10 |
10 |
3.500 |
4 |
1 |
|
3-Q-20 |
20 |
12.5 |
22.5 |
45 |
10 |
20 |
7.000 |
4 |
1 |
|
3-Q-40 |
40 |
12.5 |
42.5 |
45 |
10 |
40 |
14.000 |
4 |
1 |
Starna 3-I Series Standard Rectangular Fluorometer Cells / Window Material: Infrasil Quartz, Usable Range: 220-3800nm
|
Starna Catalog No |
Path Length (mm) |
Ext Width (mm) |
Ext Length (mm) |
Ext Height (mm) |
Int Width (mm) |
Int Length (mm) |
Nominal Volume (ml) |
Number Polished Windows |
Polished Base |
|
3-I-5 |
5 |
12.5 |
7.5 |
45 |
10 |
5 |
1.700 |
4 |
1 |
|
3-I-10 |
10 |
12.5 |
12.5 |
45 |
10 |
10 |
3.500 |
4 |
1 |
|
3-I-20 |
20 |
12.5 |
22.5 |
45 |
10 |
20 |
7.000 |
4 |
1 |
|
3-I-40 |
40 |
12.5 |
42.5 |
45 |
10 |
40 |
14.000 |
4 |
1 |
