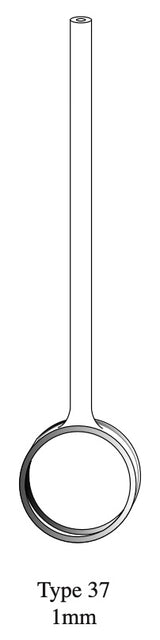

37-PX, 37-Q, 37-I Series Short Pathlength Cylindrical Cells with Fill Tube, Optical Pyrex / Spectrosil Quartz / Infrasil Quartz
Although a tube can be attached to virtually any cell, the Type 37 design already incorporates a tube so that the cell can be attached to other apparatus, or sealed off with a flame, depending on the application. The tube can also be specified 10mm as a quartz to pyrex graded seal. Where this is required, call us for a quotation.
Note: Liquids do not compress like gases and therefore excessive pressure applied to the stop per of an overfilled cell will cause damage to the cell.
Starna 37-PX Series Large Diameter Cylindrical Cells / Window Material: Optical Pyrex, Usable Range: 320-2500nm
|
Starna Catalog No |
Path Length (mm) |
Ext Width (mm) |
Ext Length (mm) |
Interior Width (mm) |
Interior Length (mm) |
Nominal Volume (ml) |
Tube Length (mm) |
Number Polished Windows |
|
37-PX-1 |
1 |
22 |
3.5 |
19 |
1 |
0.280 |
70 |
2 |
|
37-PX-2 |
2 |
22 |
4.5 |
19 |
2 |
0.560 |
70 |
2 |
|
37-PX-5 |
5 |
22 |
7.5 |
19 |
5 |
1.400 |
70 |
2 |
|
37-PX-10 |
10 |
22 |
12.5 |
19 |
10 |
2.800 |
70 |
2 |
Starna 37-Q Series Large Diameter Cylindrical Cells / Window Material: Quartz, Usable Range: 170-2700nm
|
Starna Catalog No |
Path Length (mm) |
Ext Width (mm) |
Ext Length (mm) |
Interior Width (mm) |
Interior Length (mm) |
Nominal Volume (ml) |
Tube Length (mm) |
Number Polished Windows |
|
37-Q-1 |
1 |
22 |
3.5 |
19 |
1 |
0.280 |
70 |
2 |
|
37-Q-2 |
2 |
22 |
4.5 |
19 |
2 |
0.560 |
70 |
2 |
|
37-Q-5 |
5 |
22 |
7.5 |
19 |
5 |
1.400 |
70 |
2 |
|
37-Q-10 |
10 |
22 |
12.5 |
19 |
10 |
2.800 |
70 |
2 |
Starna 37-I Series Large Diameter Cylindrical Cells / Window Material: Infrasil Quartz, Usable Range: 220-3800nm
|
Starna Catalog No |
Path Length (mm) |
Ext Width (mm) |
Ext Length (mm) |
Interior Width (mm) |
Interior Length (mm) |
Nominal Volume (ml) |
Tube Length (mm) |
Number Polished Windows |
|
37-I-1 |
1 |
22 |
3.5 |
19 |
1 |
0.280 |
70 |
2 |
|
37-I-2 |
2 |
22 |
4.5 |
19 |
2 |
0.560 |
70 |
2 |
|
37-I-5 |
5 |
22 |
7.5 |
19 |
5 |
1.400 |
70 |
2 |
|
37-I-10 |
10 |
22 |
12.5 |
19 |
10 |
2.800 |
70 |
2 |
