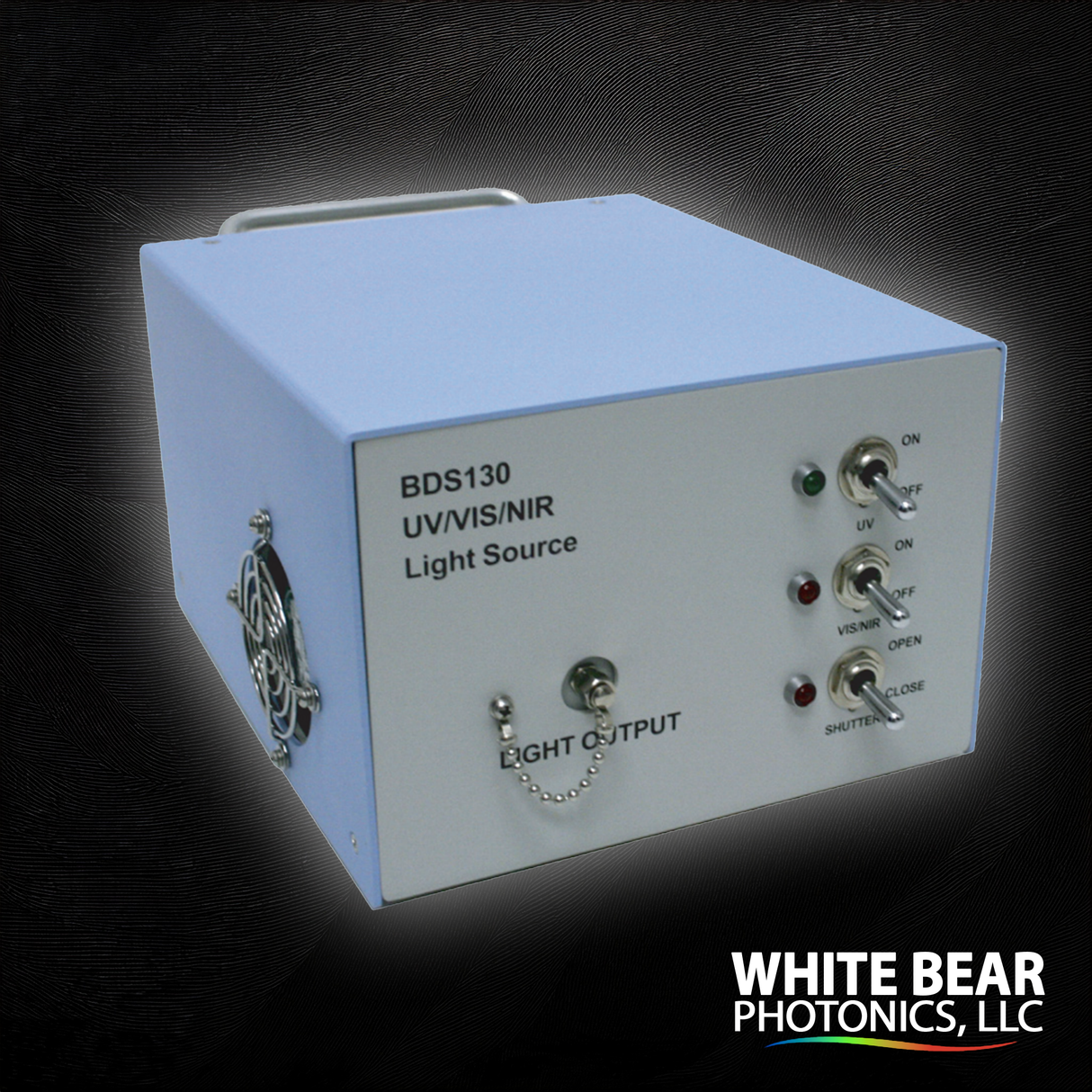

UV / VIS / NIR Fiber Coupled Light Source, High Power

The BDS130A is a robust, turnkey fiber-coupled light source designed for demanding spectroscopic applications in the UV, Vis, and NIR ranges (190–2500 nm). Utilizing a 30W deuterium lamp for UV/Vis and a tungsten halogen lamp for VIS / NIR, this unit delivers broad spectral coverage and high stability—with each lamp individually controllable for maximum experimental flexibility. TTL/manual shutter and lamp control offer precise operation, while the SMA 905 connector ensures simple, direct fiber coupling. Its compact, durable design makes the BDS130A excellent for transmission and reflection experiments in research, QA/QC, or material science.

Key Features:

• Spectral output: 190–2500 nm
• Fiber-coupled via SMA 905
• TTL/manual control, electronic shutter
• High stability, low heat, and long lamp lifetimes (>2000 hrs D2, >10,000 hrs tungsten)
• Compact (220 × 187 × 130 mm) and easy to integrate
