Art Photonics

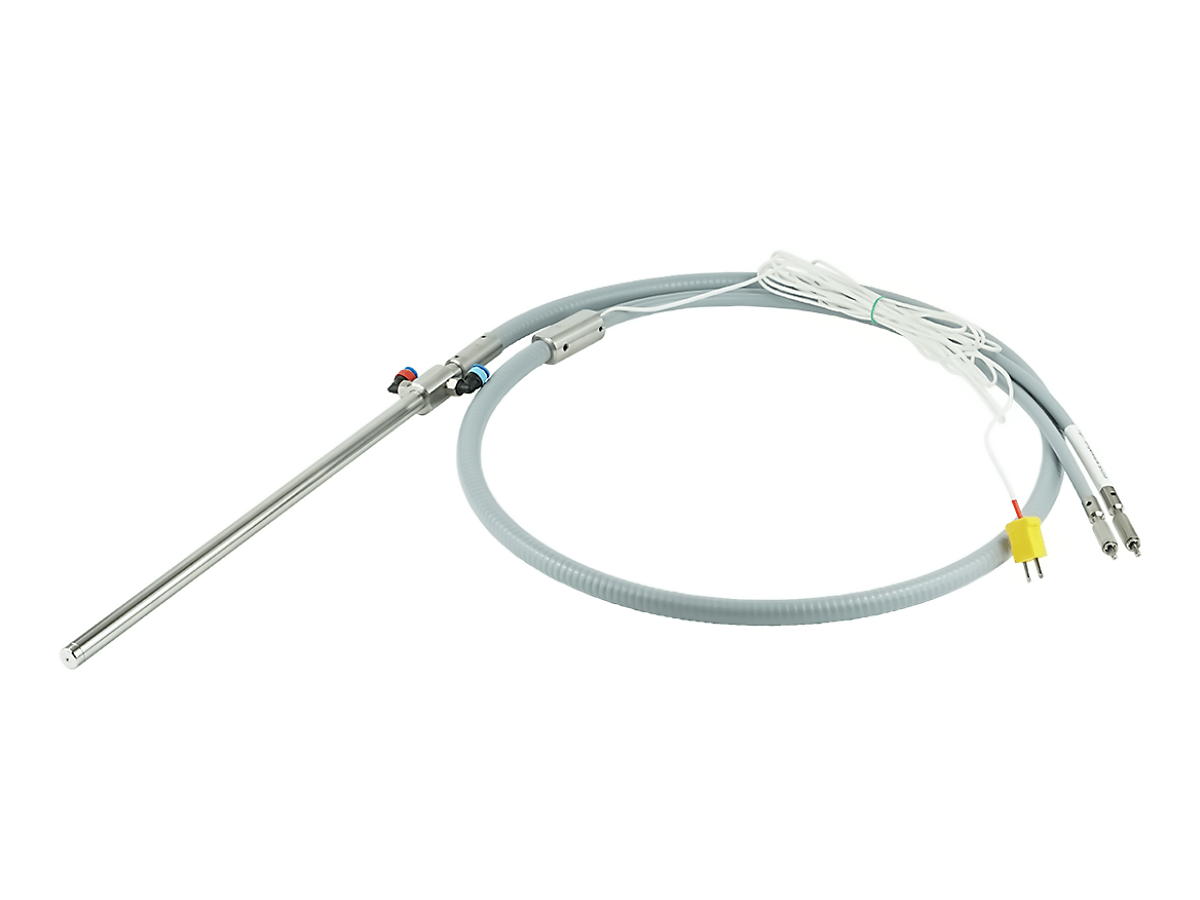

High Temperature ATR-Probes for Harsh & Hazardous Environments

Fiber Optic ATR-Probes for harsh environment can be used for process-spectroscopy in Near & Mid IR range to monitor reactions in-line in a broad temperature range from -150° to +250°C. They can resist to high pressures up to 200 Bar and used with FTIR or any other IR-spectrometers and spectral sensors in automated process control with process-interfaces.

Main Features:

  • High throughput in selected parts of Near & Mid InfraRed-spectra
  • ATR-tip shaped for immersion in liquid flow without dead zone
  • Robust for industrial applications in harsh environment up to 250°C
  • Resistant to high pressure
  • Compatible with all spectrometers and automated process-interfaces

Applications:

  • Remote Reaction Monitoring in-line in temperature range -100/+250°C
  • PAT applications in lab, pilot plant or industry with process-interfaces for automated process control
  • Polymerization Process Control
  • In-situ IR-Spectroscopy for PAT in Chemical, Petrochemical, Atomic, Biopharmaceutical & Food Industry

Specifications:

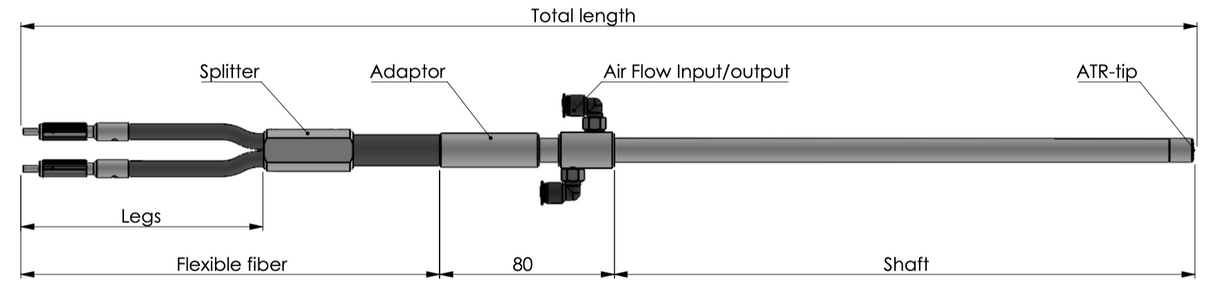

Probe Type ATR-probe with gas cooling design
Sealing Material PEEK

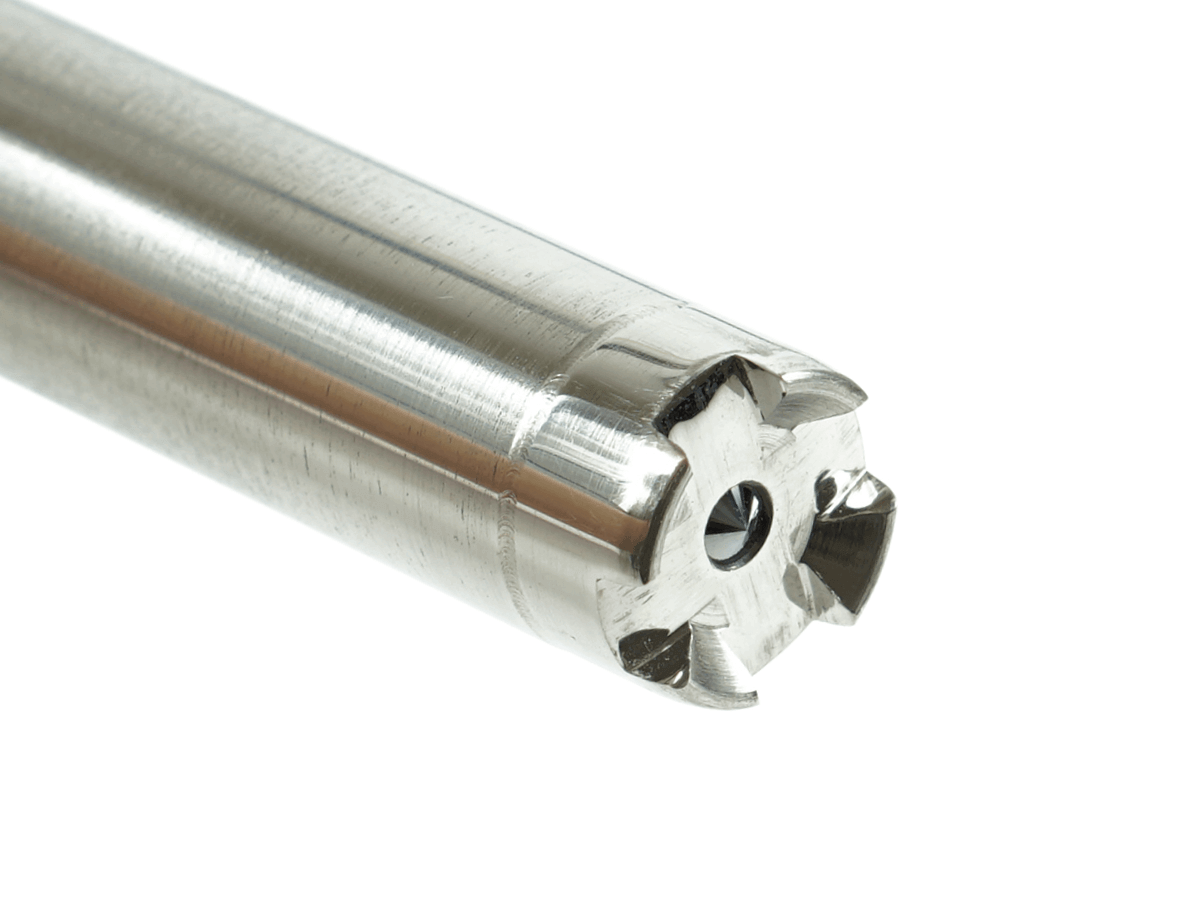

Tip Protection crown sized (optional)
Probe Shaft L = 300 ± 5 mm
Shaft Material Hastelloy C22
Total Length 2 ± 0.05 m
Flexible Fiber 1.7 m, 2 legs of 0.5 m length each
Terminations 2 x SMA905
Protection Tubing

Liquid Tight Protection (LTP)



Available SKUs:

Product Code
 Article-No. Tip Material Shaft OD Spectral Range Fiber Type Pressure Temperature
ATR-P-D-6-30-200/50-HT AP12114 Diamond 6.3 mm 600 - 1900cm-1 PIR 900/1000 200 Bar -150°- +230°C
ATR-P-DC-6-30-200/50-HT AP12xxx Diamond 6.3 mm 600 - 1900cm-1 PIR 900/1000 200 Bar -150°- +230°C
ATR-P-Si-6-30-200/50-HT AP12129 Silicon 6.3 mm 600 - 3100cm-1 PIR 900/1000 100 Bar -150°- +230°C
ATR-P-SiC-6-30-200/50-HT AP12xxx Silicon 6.3 mm 600 - 3100cm-1 PIR 900/1000 100 Bar -150°- +230°C
ATR-C-ZrO2-6-30-200/50-HT AP12xxx Cubic Zirconia 6.3 mm 1550 - 9000cm-1 CIR 500/550 100 Bar -150°- +180°C
ATR-C-ZrO2C-6-30-200/50-HT AP12xxx Cubic Zirconia 6.3 mm 1550 - 9000cm-1 CIR 500/550 100 Bar -150°- +180°C
Product Code Article-No.
 Tip Material Shaft OD Spectral Range Fiber Type Pressure Temperature
ATR-P-D-12-30-200/50-HT AP10344 Diamond 12 mm 600 - 1900cm-1 PIR 900/1000 200 Bar -150 - +250°C
ATR-P-DC-12-30-200/50-HT AP10928 Diamond 12 mm 600 - 1900cm-1 PIR 900/1000 200 Bar -150 - +250°C
ATR-P-Si-12-30-200/50-HT AP10932 Silicon 12 mm 600 - 3100cm-1 PIR 900/1000 100 Bar -150 - +250°C
ATR-P-SiC-12-30-200/50-HT AP10512 Silicon 12 mm 600 - 3100cm-1 PIR 900/1000 100 Bar -150 - +250°C
ATR-C-ZrO2-12-30-200/50-HT AP10935 Cubic Zirconia 12 mm 1550 - 9000cm-1 CIR 500/550 100 Bar -150 - +200°C
ATR-C-ZrO2C-12-30-200/50-HT AP10936 Cubic Zirconia 12 mm 1550 - 9000cm-1 CIR 500/550 100 Bar -150 - +200°C
