Description

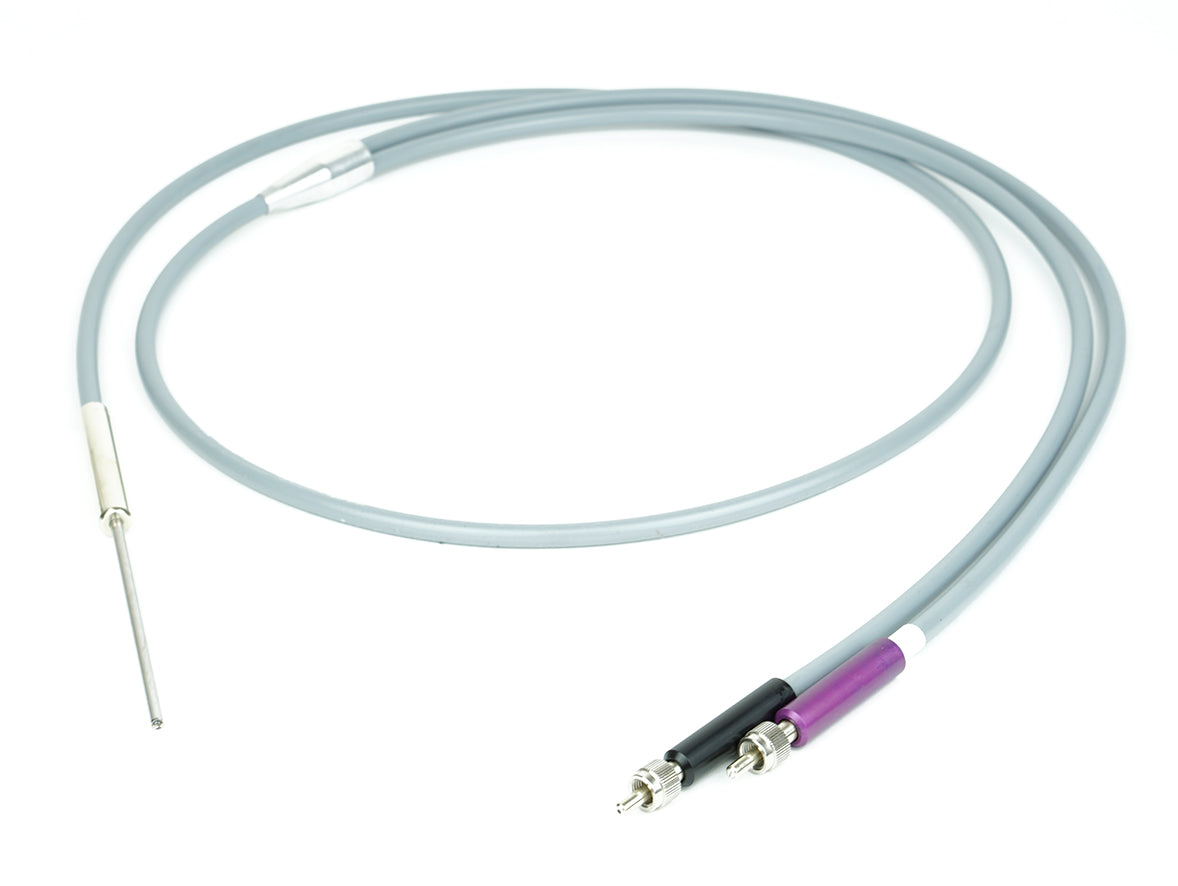

Specular Reflection Probes from FlexiSpec® product line are designed to measure Specular Reflectance, Backscatter or Fluorescence of solid, liquid, and powder samples.
Main Features:
- Sapphire window design without straight light
- Possible design with thinnest probe tips d=0.5 mm
- Dedicated design providing minimal cross talk due to using of Metal Coated Fibers
- Flat or angled tip design
- Round-to-Round or Round-to-Line design

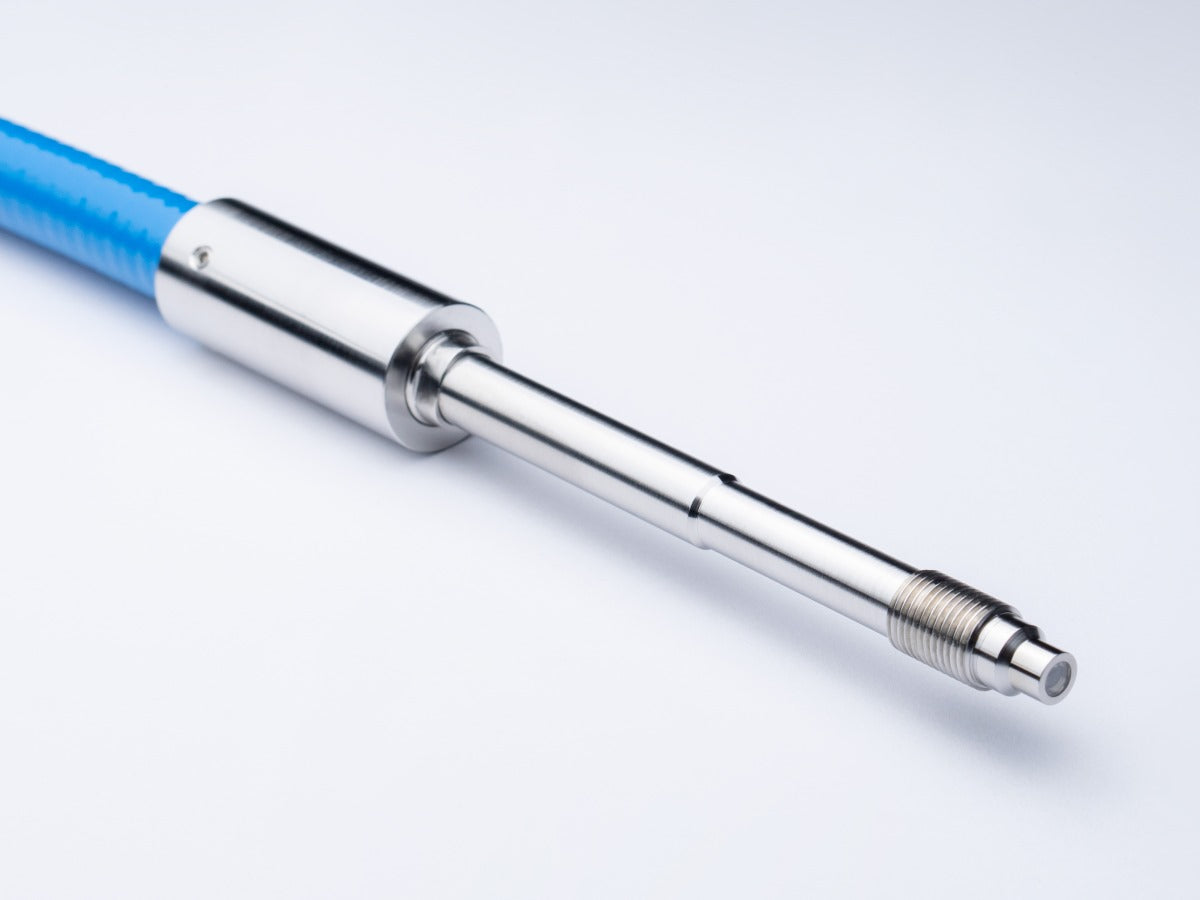

- Extruder design on request
Applications:
- Reaction monitoring in real time
- Process Analytical Technologies (PAT)
- Extrusion and Crystallization monitoring
- Biopharmaceutical analysis
- Biofuel development and production control
- Food and beverage processes monitoring
Specifications:
| Probe Type | Reflection |
| Sealing Material | Glue EPOTEK 353 ND |
| Window | No |

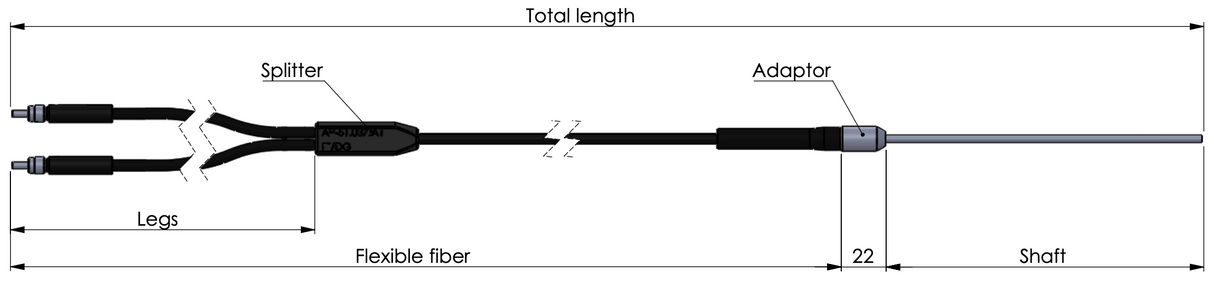

| Probe Shaft | OD = 3.5 mm, L = 150 mm |
| Shaft Material | Stainless Steel 316L |
| Total Length | 2 ± 0.05 m |
| Flexible Fiber | 1.55 m, legs of 0.3 m length each |
| Terminations | 2 x SMA905 87654321 |
| Protection Tubing | KSP-4N, OD = 7 mm |
| Temperature |
0 - +150 °C |
| Pressure | 0 - 10 Bar |
Available SKUs:
| Product Code | Article-No. | Bundle Arrangement | Spectral Range | Detection Fiber Type | Illumination Fiber Type |
| R-NIR-3-15-200/30 | AP10773 | 1 + 7 | 380 - 2500 nm | 1 x NIR400/440 | 7 x NIR 400/440 |
| R-UV-3-15-200/30 | AP12xxx | 1 + 7 | 200 - 1200 nm | 1 x UV-VIS/AL 400/440 | 7 x UV-VIS400/440 |
