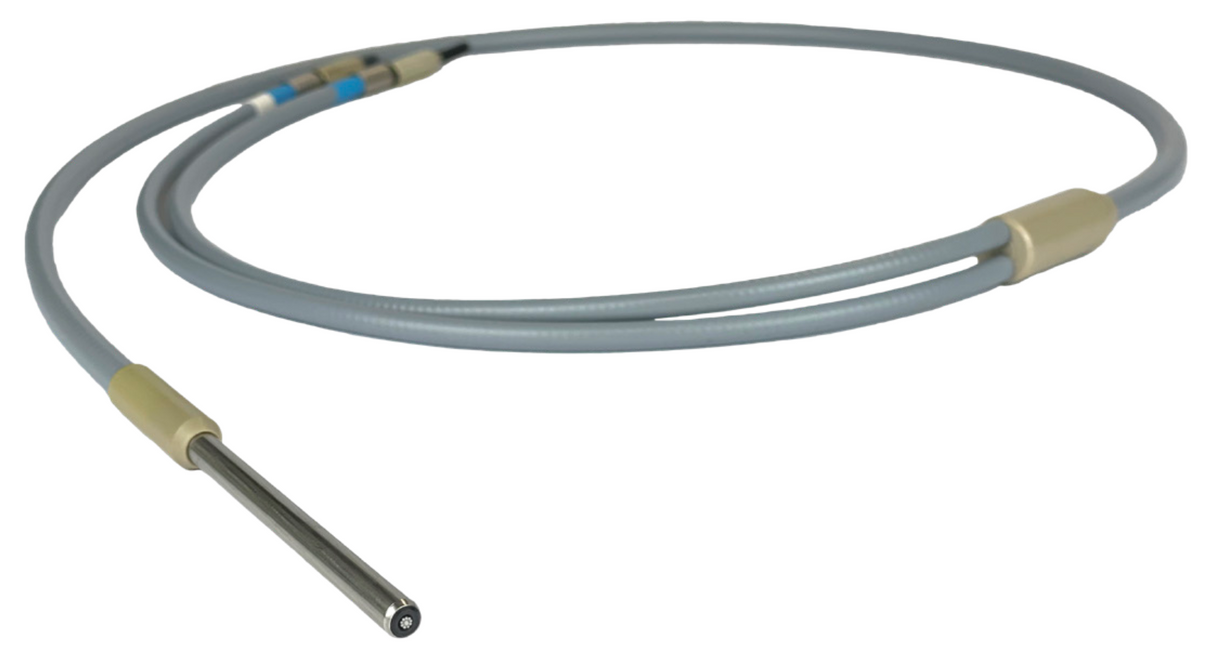

Reflection Mid-IR Probes


Description

Specifications:

Probe Type Mid-IR Reflection
Sealing Material No

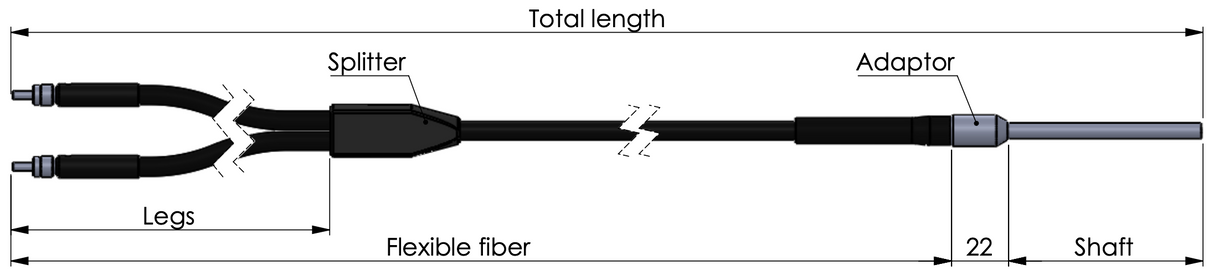

Probe Shaft OD = 6.3 mm, L = 75 mm
Shaft Material Stainless Steel 316L
Total Length 1.5 ± 0.05 m
Flexible Fiber 0.9 m, legs of 0.5 m length each
Terminations 2 x SMA905
Protection Tubing Stainless Steel, OD = 7 mm
Temperature 0 - +80 °C
Pressure 1 Bar


Available SKUs:

Product Code Article-No. Bundle Arrangement Spectral Range Detection Fiber Type Illumination Fiber Type
R-C55-6-7-150/50 AP12194 1 + 6 1600 - 7000 cm-1 1 x CIR 500/550 6 x CIR 500/550
R-C34-6-7-150/50 AP11789 1 + 7 1600 - 7000 cm-1 1 x CIR 500/550 7 x CIR 340/400
R-P67-6-7-150/50 AP12xxx 1 + 7 600 - 2500 cm-1 1 x PIR 900/1000 7 x PIR 600/700
R-P45-6-7-150/50 AP12317 1 + 7 600 - 2500 cm-1 1 x PIR 900/1000 7x PIR 400/500
