Art Photonics

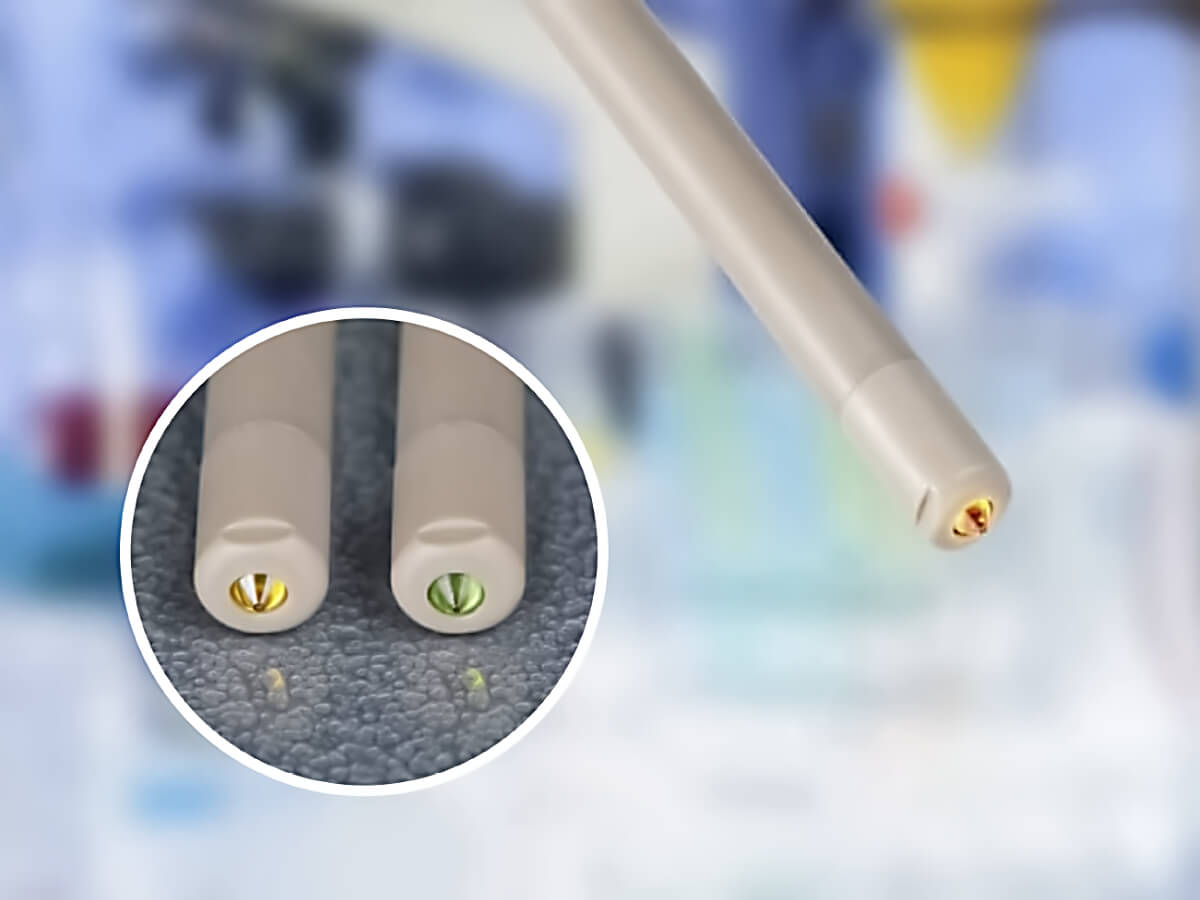

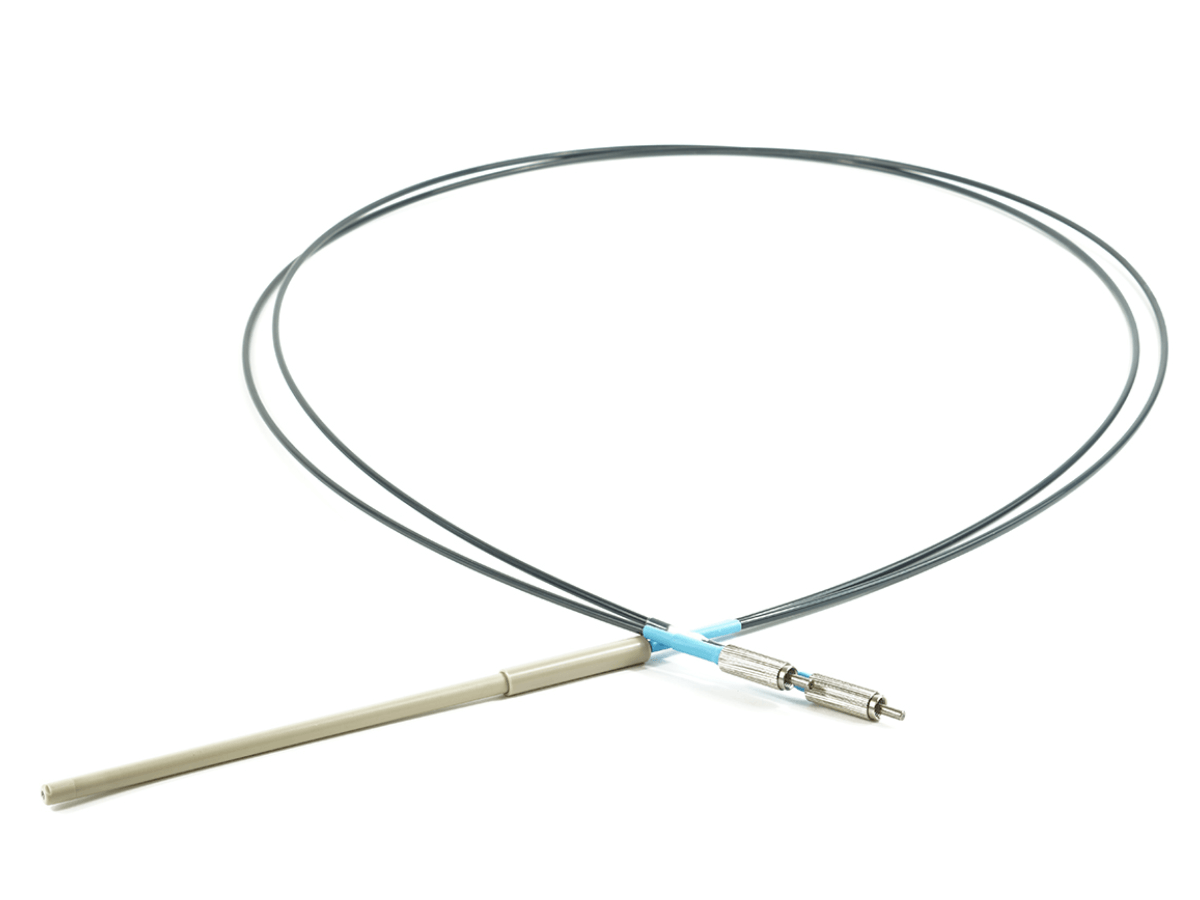

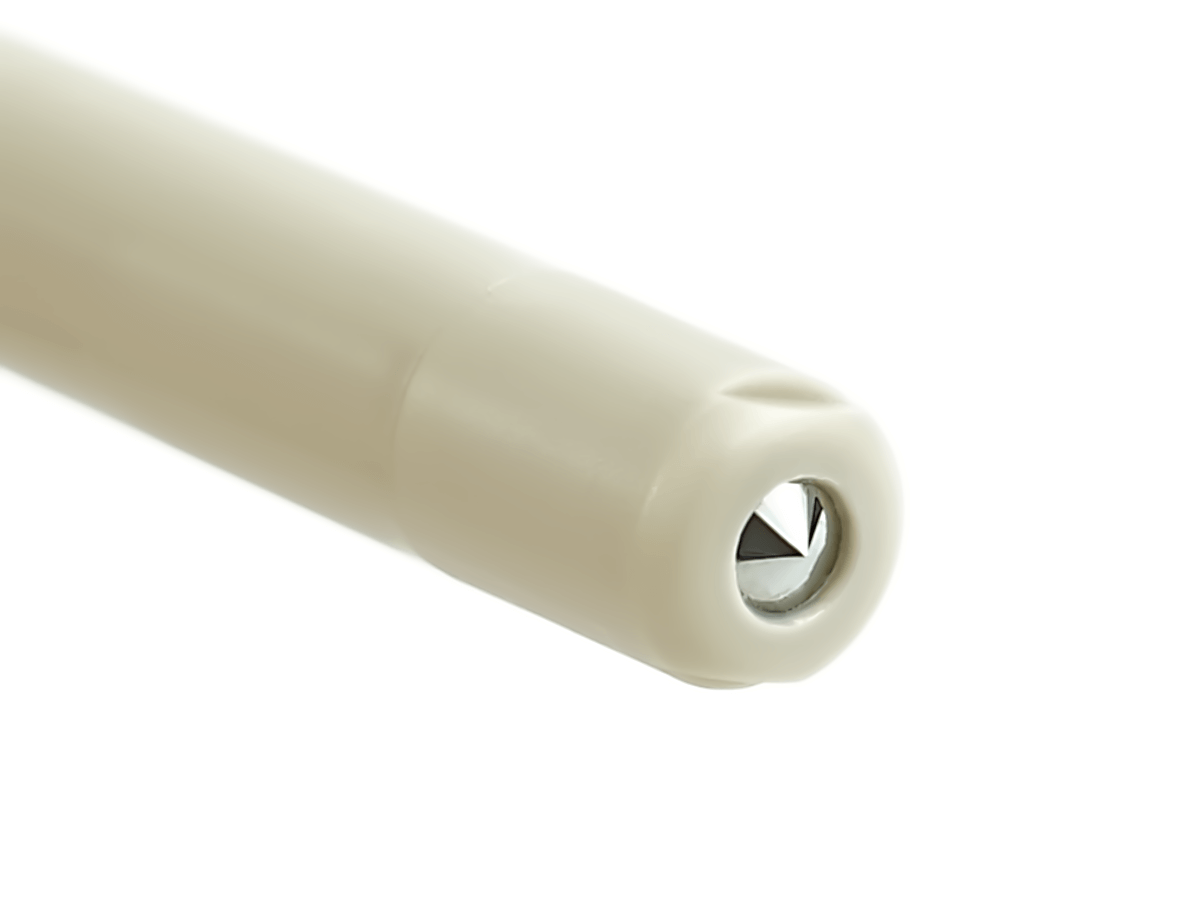

Standard Fiber Optic ATR-Probes for Lab Applications

Our new designed IR fiber ATR probes with PEEK shaft are cost effective and perfect for use in small lab reactors and open vessels.

All ATR probes from FlexiSpec® product line are compatible to any type of FT-IR and other IR-spectrometers, photometers and sensors.

Main Features:

  • Evanescent absorption spectra without dead zone problems
  • Optimal ATR- crystal selection to match customer application
  • Cost effective solution for in-line reaction monitoring

Applications:

  • Reaction Monitoring in real time
  • Remote Polymerization Control
  • Crystallization Process Screening
  • In-situ IR-Spectroscopy for soft surfaces, pastes and liquids

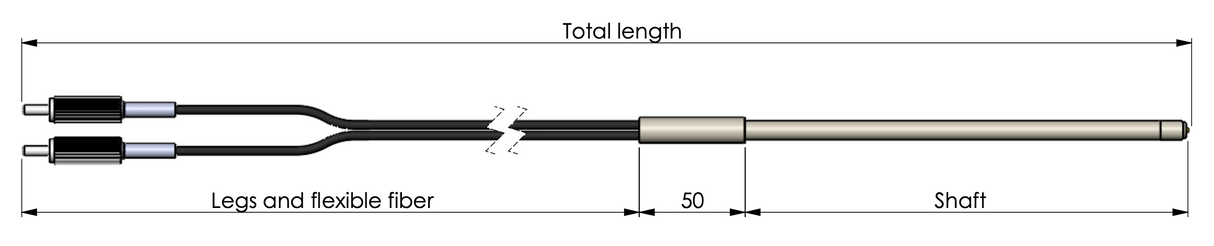

Specifications:

Probe Type

ATR-probe for Laboratory

Sealing Material

PTFE

Probe Shaft

OD = 6.3 mm, L = 150 ± 5 mm

Shaft Material

PEEK

Total Length

1.5 ± 0.05 m

Flexible fiber

2 legs of 1.35 m length each

Terminations

2 x SMA905

Protection Tubing

PEEK



SKUs Available:

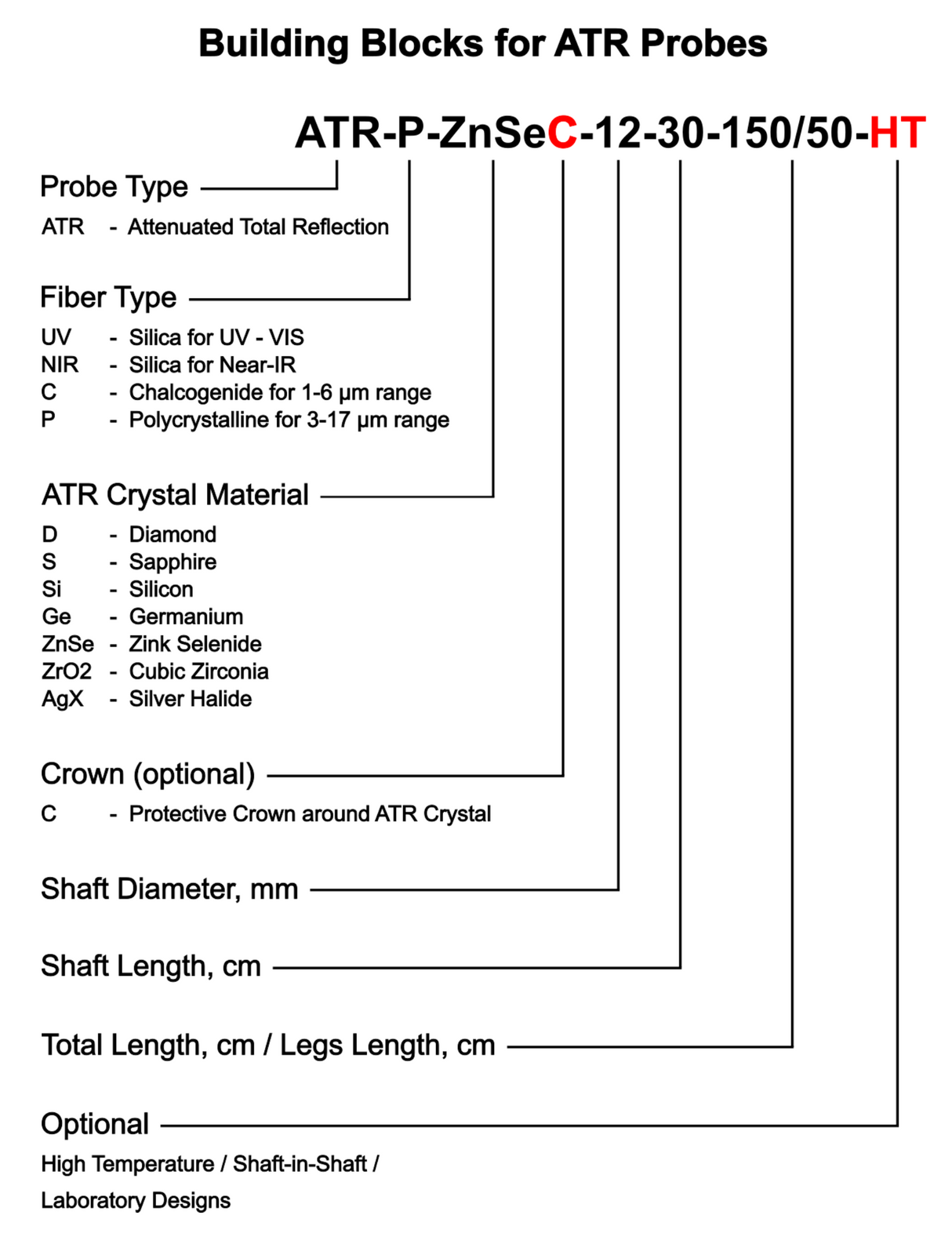

Product Code

Article-No.

Tip Material

 Shaft OD

Spectral Range

Fiber Type

Pressure, Temperature

ATR-P-D-6-15-150/135-Lab

AP10xxx

Diamond

 6.3 mm

600-1900 cm-1

PIR 900/1000

10 Bar, -100 - +140 °C

ATR-P-Si-6-15-150/135-Lab

AP10906

Silicon

 6.3 mm

600-3000 cm-1

PIR 900/1000

10 Bar, -100 - +140 °C

ATR-P-Ge-6-15-150/135-Lab

AP10917

Germanium

 6.3 mm

600-3100 cm-1

PIR 900/1000

10 Bar, -100 - +80 °C

ATR-P-ZnSe-6-15-150/135-Lab

AP10812

Zinc Selenide

 6.3 mm

600-3100 cm-1

PIR 900/1000

10 Bar, -100 - +140 °C

ATR-C-ZrO2-6-15-150/135-Lab

AP10799

Cubic Zirconia

 6.3 mm

1550-9000 cm-1

CIR 500/550

10 Bar, -100 - +90 °C

ATR-NIR-ZrO2-6-15-150/135-Lab

AP11679

Cubic Zirconia

 6.3 mm

400-2200 nm

NIR

10 Bar, -100 - +140 °C

ATR-UV-S-6-15-150/135-Lab

AP12xxx

Sapphire

6.3 mm

260-1300 nm

UV 600/660

10 Bar, -100 - +140 °C
