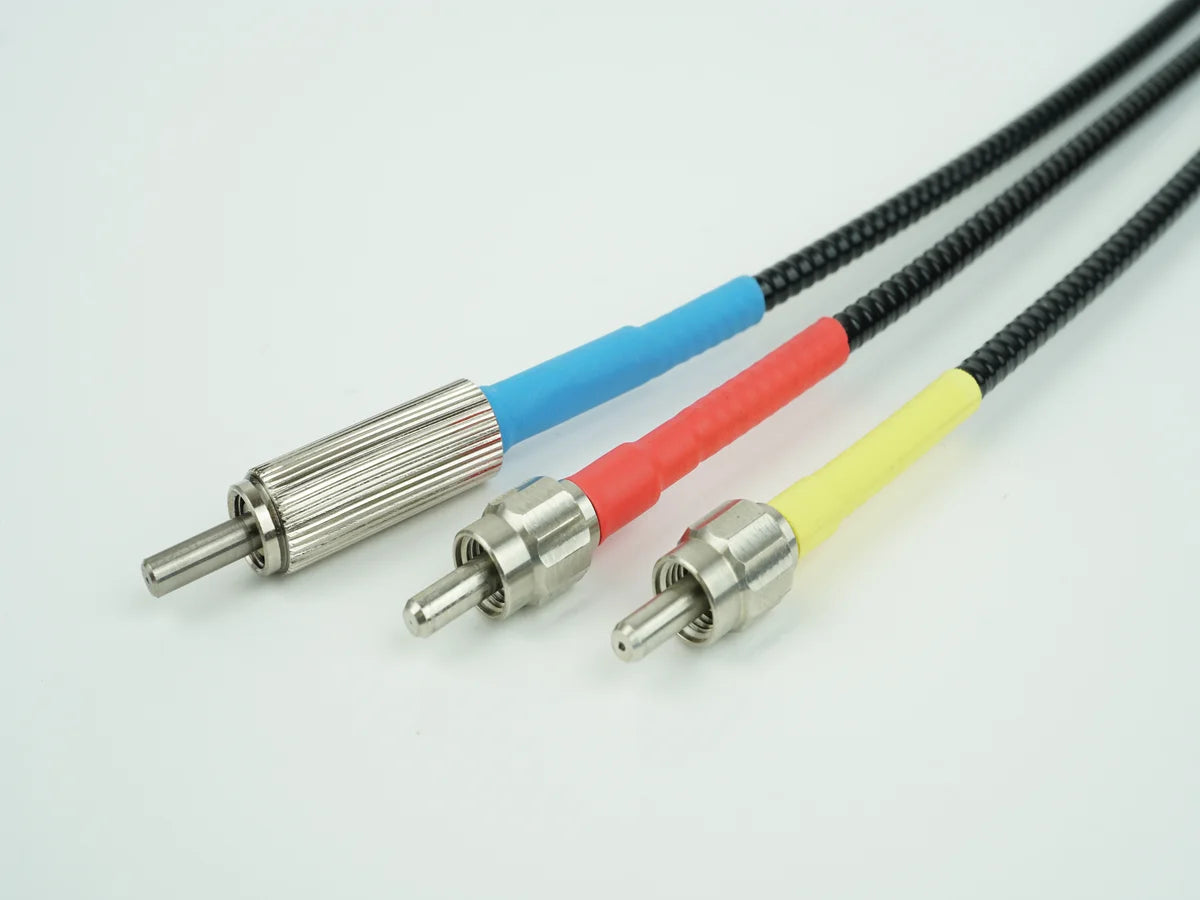

Fiber Optic CIR250 Reference Cable (300-50-SMA-SMA-MP37)

Reference cables are intended to check your spectrometer and set measurement parameters.

Silica, Chalcogenide and Polycrystalline fiber reference cables are available.

Specifications:

Fiber	CIR As-S glass fiber
Core	250±10μm
Cladding	300+10/-20μm double polymer coating 400±30μm
NA	0.30±0.03
Length	0,5±0,05m
Connectors	2x SMA 905
Protective Tubing	metal, PVC coated
OD	3.7mm
