29F, 29/9F, 28F Series Semi-Micro & Micro Quartz Fluorometer Cells with Stopper
29F, 29/9F, 28F Series Semi-Micro & Micro Quartz Fluorometer Cells with Stopper - 29F-Q-10 is backordered and will ship as soon as it is back in stock.
29F, 29/9F, 28F Series Semi-Micro & Micro Quartz Fluorometer Ce...
Specifications
Specifications
-
Form Factor
-
Window Material
-
Pathlength (mm)
-
Z HeightUniversalUniversalUniversal

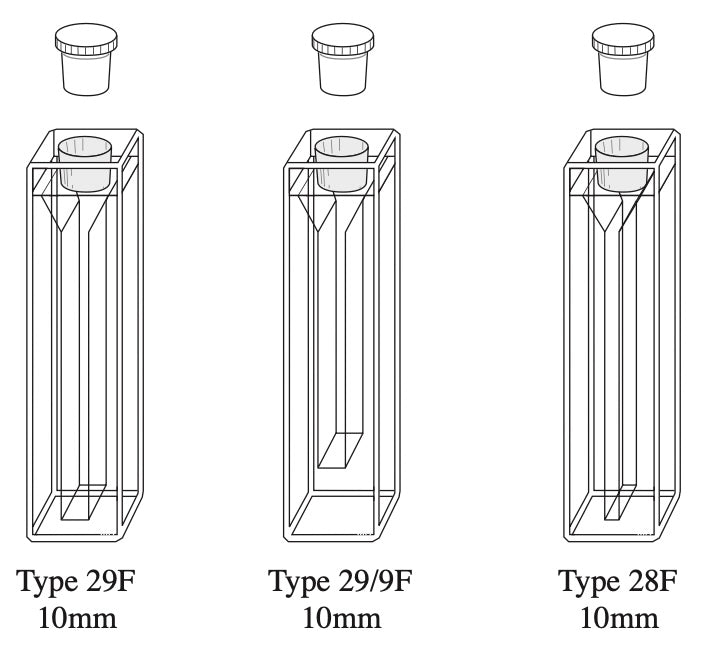

Smaller volume Types 29F and 28F are identical to Types 9F SemiMicro and Type 18F Micro cell ranges except they have a stopper instead of a lid. A PTFE stopper is supplied with each cell.
Starna 29F, 29/9F, 28F Series Fluorometer Cells with Stopper / Window Material: Spectrosil Quartz, Usable Range: 170-2700nm
|
Starna Catalog No |
Path Length (mm) |
Ext Width (mm) |
Ext Length (mm) |
Ext Height (mm) |
Int Width (mm) |
Int Length (mm) |
Nominal Volume (ml) |
Number Polished Windows |
Polished Base |
|

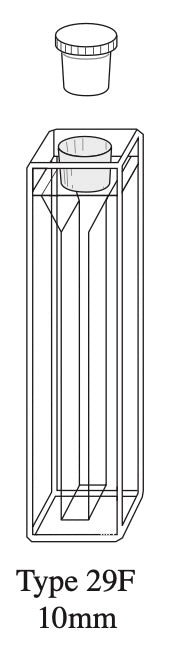

29F-Q-10 |
10 |
12.5 |
12.5 |
48 |
4 |
10 |
1.400 |
4 |
1 |
|

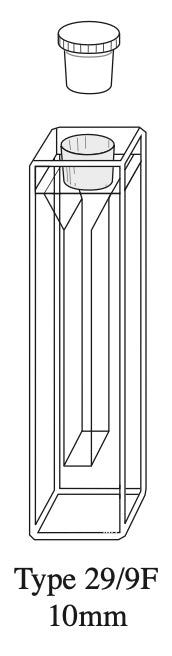

29/9F-Q-10 |
10 |
12.5 |
12.5 |
48 |
4 |
10 |
1.160 |
4 |
1 |
|

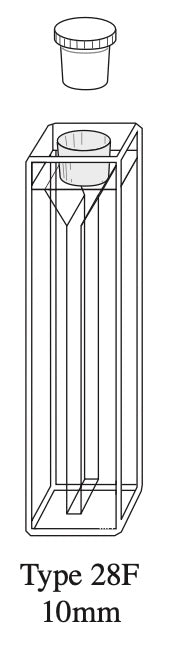

28F-Q-10 |
10 |
12.5 |
12.5 |
48 |
2 |
10 |
0.700 |
4 |
1 |
