46-Q & 47-Q Series Standard & Semi-Micro In-Line Quartz Flow Cells, 10mm
46-Q & 47-Q Series Standard & Semi-Micro In-Line Quartz Flow Cells, 10mm - 46-Q-10 is backordered and will ship as soon as it is back in stock.
46-Q & 47-Q Series Standard & Semi-Micro In-Line Quartz Flo...
Specifications
Specifications
-
Form Factor
-
Window Material
-
Pathlength (mm)
-
Z HeightUniversalUniversal

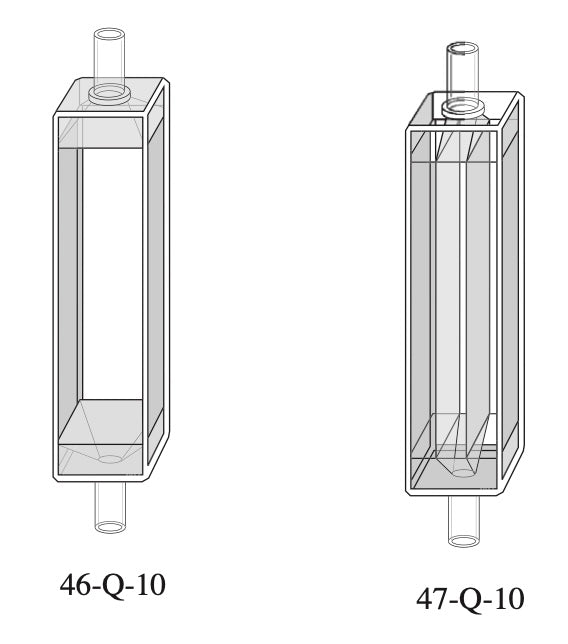

Type 46 Standard and 47 SemiMicro are for inline continuous flow type applications. Samples normally flow from the bottom to the top.
Flow Cell Tubulation Dimensions:
| OD | ID | Length |
| 3.5mm | 2.2mm | 10mm |
Starna 46-Q & 47-Q Standard & Semi-Micro Flow Cells / Window material: Quartz 170 to 2700 nm
|
Starna Catalog No |
Type |
Path Length (mm) |
Ext Width (mm) |
Ext Length (mm) |
Ext Height (mm) |
Int Width (mm) |
Int Length (mm) |
Int Height (mm) |
"Z" Dim- ension (mm) |
Nominal Volume (ml) |
Number Polished Windows |
|

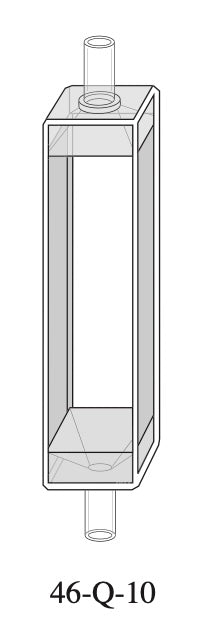

46-Q-10 |
Standard In-Line |
10 |
12.5 |
12.5 |
65 |
10 |
10 |
35 |
fits all |
3.700 |
2 |
|

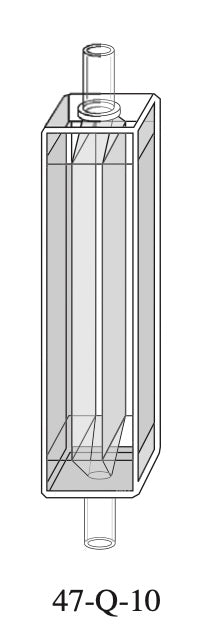

47-Q-10 |
Semi-Micro In-Line |
10 |
12.5 |
12.5 |
65 |
4 |
10 |
35 |
fits all |
1.480 |
2 |
