Description
Dual path length cells Types 52 and 53 allow for both fluorescence and absorbance measurements to be made with small volumes with a choice of two path lengths, dependent on the orientation of the cell in the cell holder. All cells have a 10mm path length in one direction and a smaller path length at 90°. All four windows and the base are clear. Type 53 is supplied with a PTFE stopper.

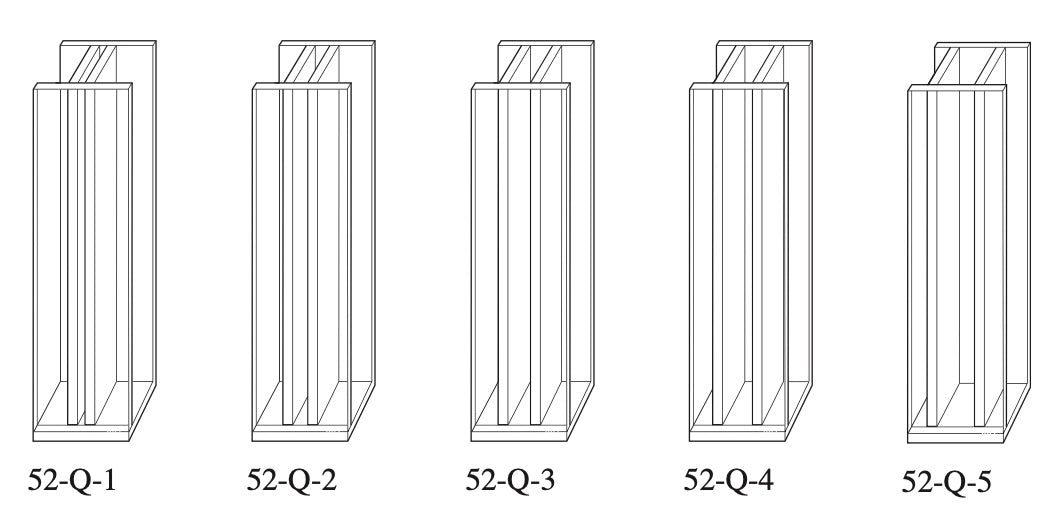

Starna 52 Series Dual Pathlength Open Top Fluorometer Cells / Window Material: Spectrosil Quartz, Usable Range: 170-2700nm
|
Starna Catalog No |
Path Length (mm) |
Ext Width (mm) |
Ext Length (mm) |
Ext Height (mm) |
Int Width (mm) |
Int Length (mm) |
Nominal Volume (ml) |
Number Polished Windows |
|

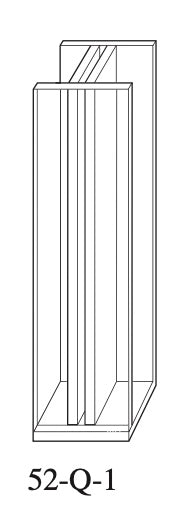

52-Q-1 |
1 and 10 |
12.5 |
12.5 |
45 |
1 |
10 |
0.400 |
5 |
|

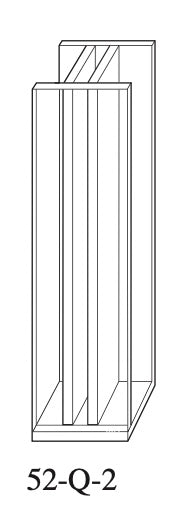

52-Q-2 |
2 and 10 |
12.5 |
12.5 |
45 |
2 |
10 |
0.800 |
5 |
|

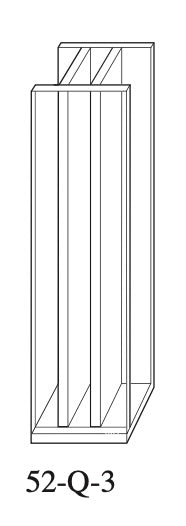

52-Q-3 |
3 and 10 |
12.5 |
12.5 |
45 |
3 |
10 |
1.200 |
5 |
|

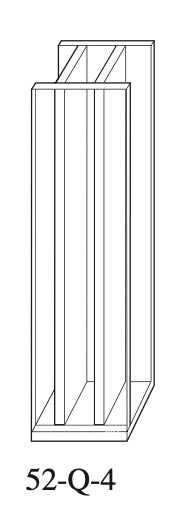

52-Q-4 |
4 and 10 |
12.5 |
12.5 |
45 |
4 |
10 |
1.600 |
5 |
|

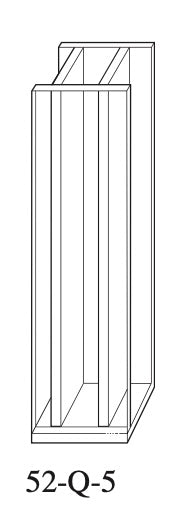

52-Q-5 |
5 and 10 |
12.5 |
12.5 |
45 |
5 |
10 |
2.000 |
5 |
