Description

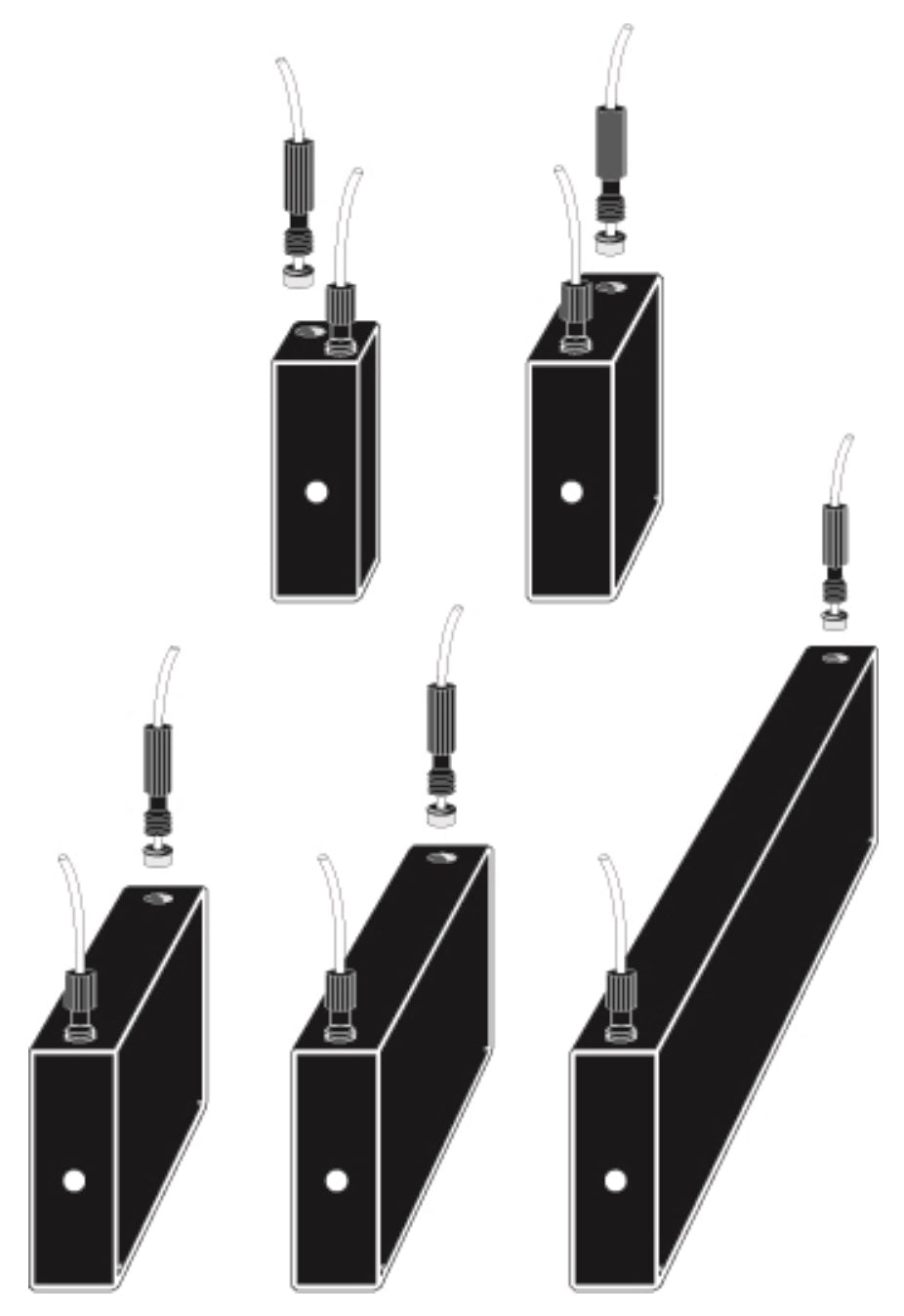

Type 585.3 is designed to optimize a small sample volume by using a cylindrical sample chamber with a small diameter. The diameter of the aper ture on the 585.3 series of flow cells is 3mm. The choice of the correct 'Z' dimension for your instrument is critical as you must ensure that the light beam of the instrument passes through the sample chamber of the cell. The cell is designed with a threaded jacket which will accept M6 threaded connectors. Available 'Z' Dimensions are 8.5, 15 (cell height 35mm) and 20mm (cell height 40mm). Extra tubing sets may be purchased: Starna M6-SET Pair of M6 Fittings.
Starna 585.3-SOG Series Round Aperture Flow Cells / Window material: Special Optical Glass, 320-2500nm
|
Starna Catalog No |
Path Length (mm) |
Ext Width (mm) |
Ext Length (mm) |
Ext Height (mm) |
Sample Chamber Diameter (mm) |
Sample Chamber Length (mm) |
"Z" Dim- ension (mm) |
Nominal Volume (ml) |
Number Polished Windows |
|
585.3-SOG-10/Z15 |
10 |
12.5 |
12.5 |
35 |
3 |
10 |
15 |
0.070 |
2 |
|
585.3-SOG-20/Z15 |
20 |
12.5 |
12.5 |
35 |
3 |
20 |
15 |
0.140 |
2 |
|
585.3-SOG-40/Z15 |
40 |
12.5 |
12.5 |
35 |
3 |
40 |
15 |
0.280 |
2 |
|
585.3-SOG-50/Z15 |
50 |
12.5 |
12.5 |
35 |
3 |
50 |
15 |
0.350 |
2 |
|
585.3-SOG-100/Z15 |
100 |
12.5 |
12.5 |
35 |
3 |
100 |
15 |
0.700 |
2 |
Starna 585.3-Q Series Round Aperture Flow Cells / Window material: Quartz 170-2700nm
|
Starna Catalog No |
Path Length (mm) |
Ext Width (mm) |
Ext Length (mm) |
Ext Height (mm) |
Sample Chamber Diameter (mm) |
Sample Chamber Length (mm) |
"Z" Dim- ension (mm) |
Nominal Volume (ml) |
Number Polished Windows |
|
585.3-Q-10/Z8.5 |
10 |
12.5 |
12.5 |
35 |
3 |
10 |
8.5 |
0.070 |
2 |
|
585.3-Q-20/Z8.5 |
20 |
12.5 |
12.5 |
35 |
3 |
20 |
8.5 |
0.140 |
2 |
|
585.3-Q-40/Z8.5 |
40 |
12.5 |
12.5 |
35 |
3 |
40 |
8.5 |
0.280 |
2 |
|
585.3-Q-50/Z8.5 |
50 |
12.5 |
12.5 |
35 |
3 |
50 |
8.5 |
0.350 |
2 |
|
585.3-Q-100/Z8.5 |
100 |
12.5 |
12.5 |
35 |
3 |
100 |
8.5 |
0.700 |
2 |
|
585.3-Q-10/Z15 |
10 |
12.5 |
12.5 |
35 |
3 |
10 |
15 |
0.070 |
2 |
|
585.3-Q-20/Z15 |
20 |
12.5 |
12.5 |
35 |
3 |
20 |
15 |
0.140 |
2 |
|
585.3-Q-40/Z15 |
40 |
12.5 |
12.5 |
35 |
3 |
40 |
15 |
0.280 |
2 |
|
585.3-Q-50/Z15 |
50 |
12.5 |
12.5 |
35 |
3 |
50 |
15 |
0.350 |
2 |
|
585.3-Q-100/Z15 |
100 |
12.5 |
12.5 |
35 |
3 |
100 |
15 |
0.700 |
2 |
|
585.3-Q-10/Z20 |
10 |
12.5 |
12.5 |
40 |
3 |
10 |
20 |
0.070 |
2 |
|
585.3-Q-20/Z20 |
20 |
12.5 |
12.5 |
40 |
3 |
20 |
20 |
0.140 |
2 |
|
585.3-Q-40/Z20 |
40 |
12.5 |
12.5 |
40 |
3 |
40 |
20 |
0.280 |
2 |
|
585.3-Q-50/Z20 |
50 |
12.5 |
12.5 |
40 |
3 |
50 |
20 |
0.350 |
2 |
|
585.3-Q-100/Z20 |
100 |
12.5 |
12.5 |
40 |
3 |
100 |
20 |
0.700 |
2 |
