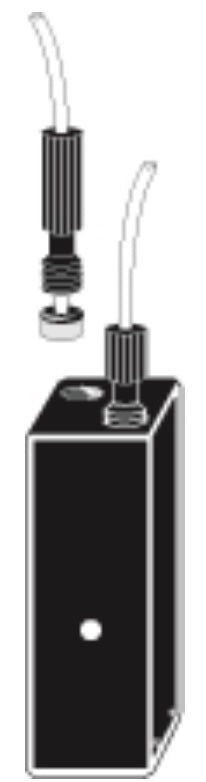

585.2-SOG & 585.2-Q Series M6 Threaded Round Aperture Sub-Micro Flow Cells, Special Optical Glass & Quartz, 10mm
585.2-SOG & 585.2-Q Series M6 Threaded Round Aperture Sub-Micro Flow Cells, Special Optical Glass & Quartz, 10mm - 585.2-SOG-10/Z8.5 is backordered and will ship as soon as it is back in stock.
585.2-SOG & 585.2-Q Series M6 Threaded Round Aperture Sub-Micro...
Specifications
Specifications
-
Form Factor
-
Window Material
-
Pathlength (mm)
-
Z Height8.5 mm15 mm20 mm8.5 mm15 mm20 mm
Type 585.2 is designed to optimize a small sample volume by using a cylin drical sample chamber with a small diameter. The diameter of the aperture on the 585.2 series of flow cells is 2 mm. The choice of the correct 'Z' dimension for your instrument is critical as you must ensure that the light beam of the instrument passes through the sample chamber of the cell. The cell is designed with a threaded jacket which will accept M6 threaded con nectors. Available 'Z' Dimensions are 8.5, 15 (cell height 35mm) and 20mm (cell height 40mm). Extra tubing sets may be purchased: Starna M6-SET Pair of M6 Fittings.
Starna 585.2-SOG Series Sub-Micro Round Aperture Flow Cells / Window material: Special Optical Glass, 320-2500nm
|
Starna Catalog No |
Path Length (mm) |
Ext Width (mm) |
Ext Length (mm) |
Ext Height (mm) |
Interior Diameter (mm) |
"Z" Dim- ension (mm) |
Nominal Volume (ml) |
Number Polished Windows |
|
585.2-SOG-10/Z8.5 |
10 |
12.5 |
12.5 |
35 |
2 |
8.5 |
0.032 |
2 |
|
585.2-SOG-10/Z15 |
10 |
12.5 |
12.5 |
35 |
2 |
15 |
0.032 |
2 |
|
585.2-SOG-10/Z20 |
10 |
12.5 |
12.5 |
35 |
2 |
20 |
0.032 |
2 |
Starna 585.2-Q Series Sub-Micro Round Aperture Flow Cells / Window material: Quartz, 170-2700nm
|
Starna Catalog No |
Path Length (mm) |
Ext Width (mm) |
Ext Length (mm) |
Ext Height (mm) |
Interior Diameter (mm) |
"Z" Dim- ension (mm) |
Nominal Volume (ml) |
Number Polished Windows |
|
585.2-Q-10/Z8.5 |
10 |
12.5 |
12.5 |
35 |
2 |
8.5 |
0.032 |
2 |
|
585.2-Q-10/Z15 |
10 |
12.5 |
12.5 |
35 |
2 |
15 |
0.032 |
2 |
|
585.2-Q-10/Z20 |
10 |
12.5 |
12.5 |
35 |
2 |
20 |
0.032 |
2 |
