Description
Dye laser cells must be made extremely accurately with a surface flatness which extends to the edge of the cell. Many of the fluorometer type of cells illustrated in this catalog may be used for laser applications. However, to ensure their optical flatness, fluorometer cells must be polished to more exacting tolerances and given the prefix DLC.

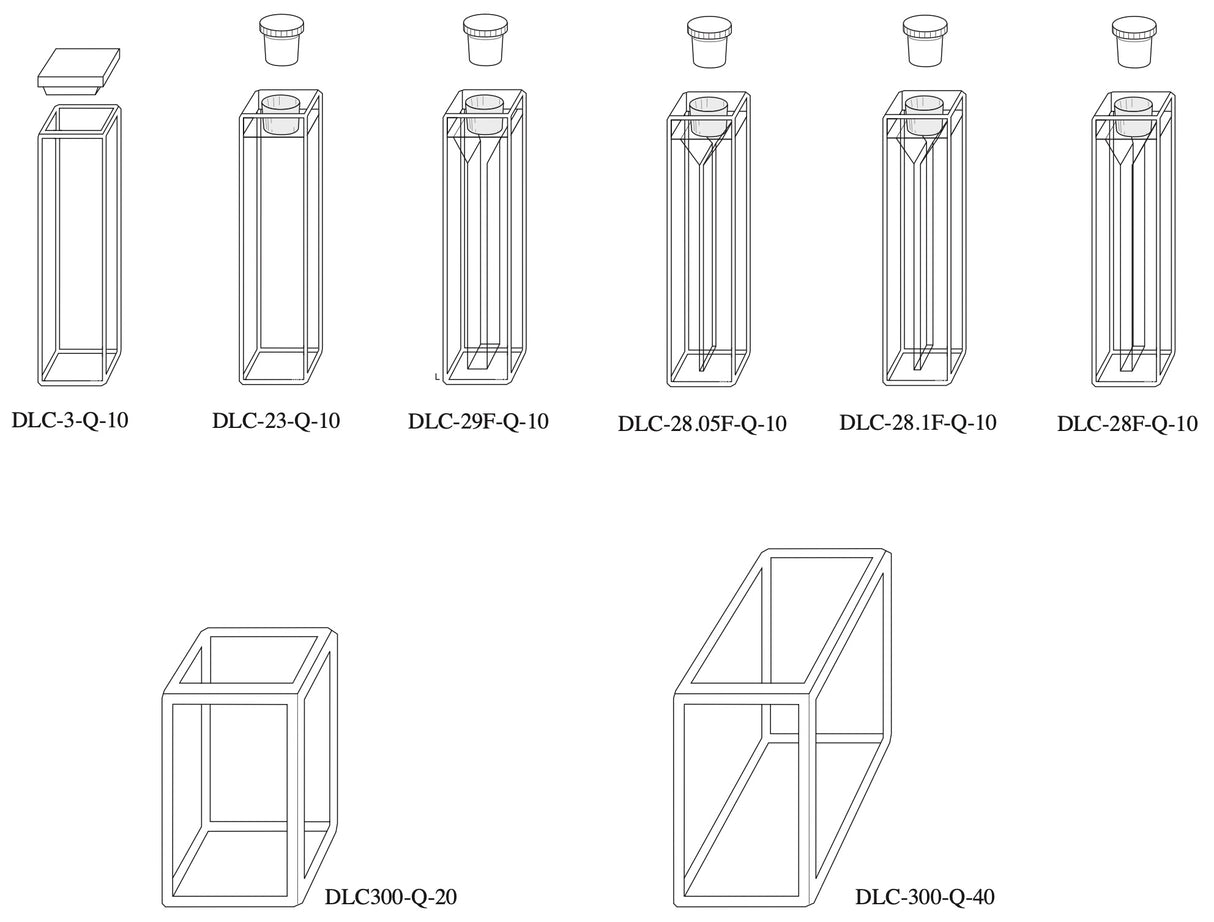

There are other cells specifically designed listed below. The DLC-3-Q-10 is supplied with a PTFE lid while the other dye laser cells shown in the top row are supplied with a PTFE stopper. The DLC300-Q-20 and DLC300-Q-40 are supplied without a lid.
Starna DLC Series Dye Laser Cells / Window Material: Spectrosil Quartz, Usable Range: 170-2700nm
|
Starna Catalog No |
Path Length (mm) |
Ext Width (mm) |
Ext Length (mm) |
Ext Height (mm) |
Int Width (mm) |
Int Length (mm) |
Nominal Volume (ml) |
Number Polished Windows |
Polished Base |
|

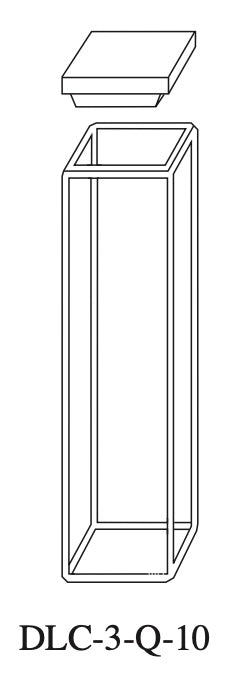

DLC-3-Q-10 |
10 |
12.5 |
12.5 |
45 |
10 |
10 |
3.500 |
4 |
1 |
|

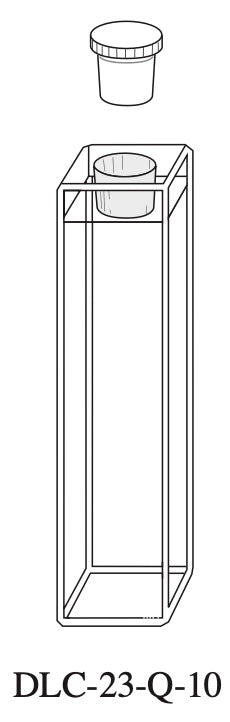

DLC-23-Q-10 |
10 |
12.5 |
12.5 |
48 |
10 |
10 |
3.500 |
4 |
1 |
|

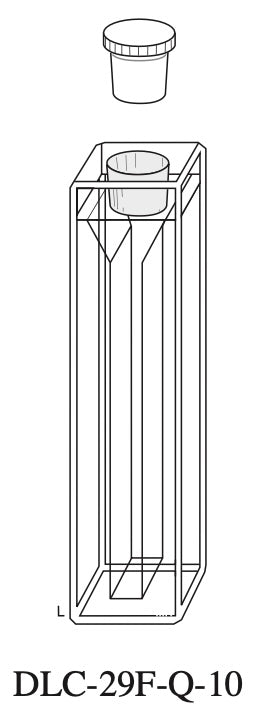

DLC-29F-Q-10 |
10 |
12.5 |
12.5 |
48 |
4 |
10 |
1.400 |
4 |
1 |
|

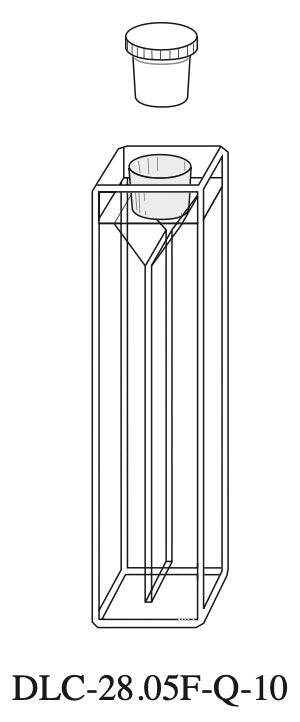

DLC-28.05F-Q-10 |
10 |
12.5 |
12.5 |
48 |
0.5 |
10 |
0.180 |
4 |
1 |
|

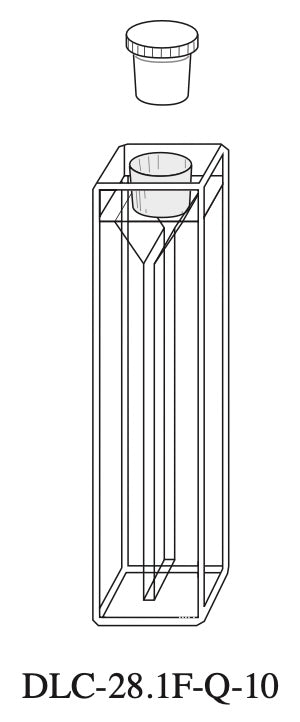

DLC-28.1F-Q-10 |
10 |
12.5 |
12.5 |
48 |
1 |
10 |
0.350 |
4 |
1 |
|

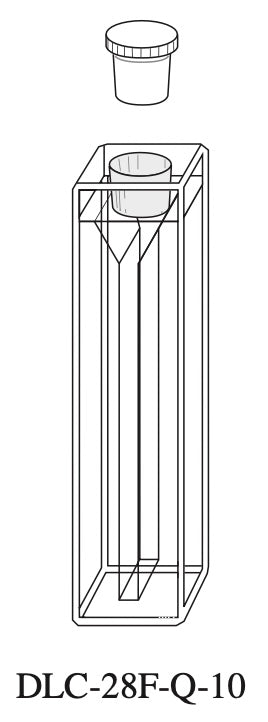

DLC-28F-Q-10 |
10 |
12.5 |
12.5 |
48 |
2 |
10 |
0.700 |
4 |
1 |
|

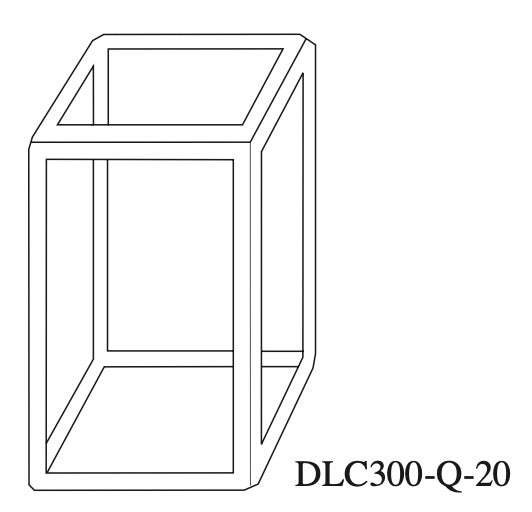

DLC-300-Q-20 |
20 |
26 |
26 |
40 |
20 |
20 |
12.000 |
4 |
no |
|
DLC-300-Q-40 |
40 |
26 |
26 |
40 |
20 |
40 |
24.000 |
4 |
no |
