SBT Series Cells with Straight Bore Tube, Special Optical Glass & Spectrosil Quartz
SBT Series Cells with Straight Bore Tube, Special Optical Glass & Spectrosil Quartz - 1-SOG-10/SBT is backordered and will ship as soon as it is back in stock.
SBT Series Cells with Straight Bore Tube, Special Optical Glass &am...
Specifications
Specifications
-
Form Factor
-
Window Material
-
Pathlength (mm)
-
Z HeightUniversalUniversalUniversal

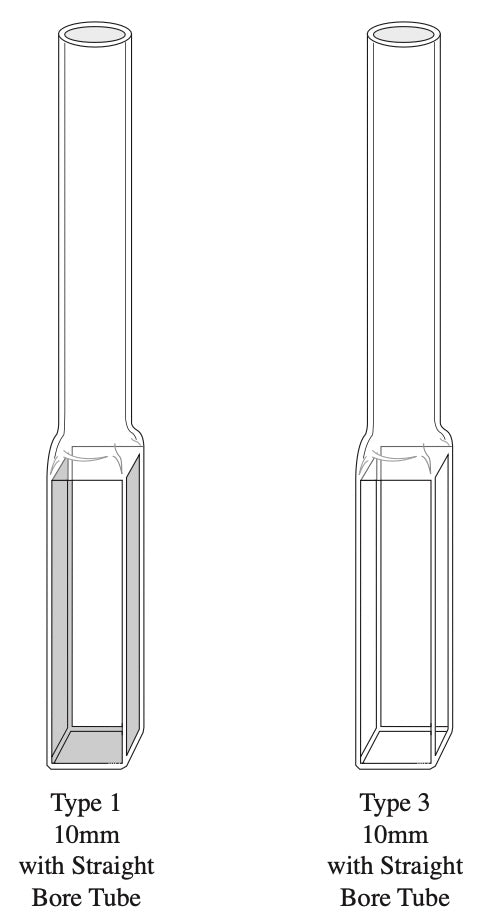

Straight bore tubes in a range of sizes can be attached to most cells. Quartz tubes can be fused to quartz cells but for Glass materials, the tube and the cell need to be fabricated from borosilicate glass. Prices quoted are for the cost of the tube and fusing it to the cell plus the original cell cost. The dimensions of the standard tubes supplied are OD 10 mm, ID 8 mm, Length 70mm.
Starna SBT Series Cells with Straight Bore Tube / Window Material: Special Optical Glass, Usable Range: 320-2500nm
|
Starna Catalog No |
Path Length (mm) |
Ext Width (mm) |
Ext Length (mm) |
Ext Height (mm) |
Int Width (mm) |
Int Length (mm) |
Nominal Volume (ml) |
Number Polished Windows |
|
1-SOG-10/SBT |
10 |
12.5 |
12.5 |
115 |
10 |
10 |
3.500 |
2 |
Starna SBT Series Cells with Straight Bore Tube / Window Material: Spectrosil Quartz, Usable Range: 170-2700nm
|
Starna Catalog No |
Path Length (mm) |
Ext Width (mm) |
Ext Length (mm) |
Ext Height (mm) |
Int Width (mm) |
Int Length (mm) |
Nominal Volume (ml) |
Number Polished Windows |
|

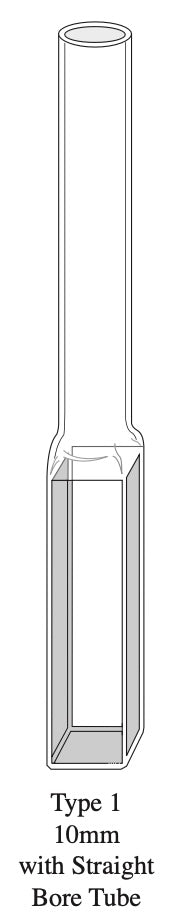

1-Q-10/SBT |
10 |
12.5 |
12.5 |
115 |
10 |
10 |
3.500 |
2 |
|
3-Q-10/SBT |
10 |
12.5 |
12.5 |
115 |
10 |
10 |
3.500 |
5 |
