Type 62 & 63 Rectangular Water-Jacketed Quartz Constant Temperature Cells with Vertical or Horizontal Flow Tubes
Type 62 & 63 Rectangular Water-Jacketed Quartz Constant Temperature Cells with Vertical or Horizontal Flow Tubes - 62-Q-10 is backordered and will ship as soon as it is back in stock.
Type 62 & 63 Rectangular Water-Jacketed Quartz Constant Tempera...
Specifications
Specifications
-
Form Factor
-
Window Material
-
Pathlength (mm)
-
Z HeightUniversalUniversal

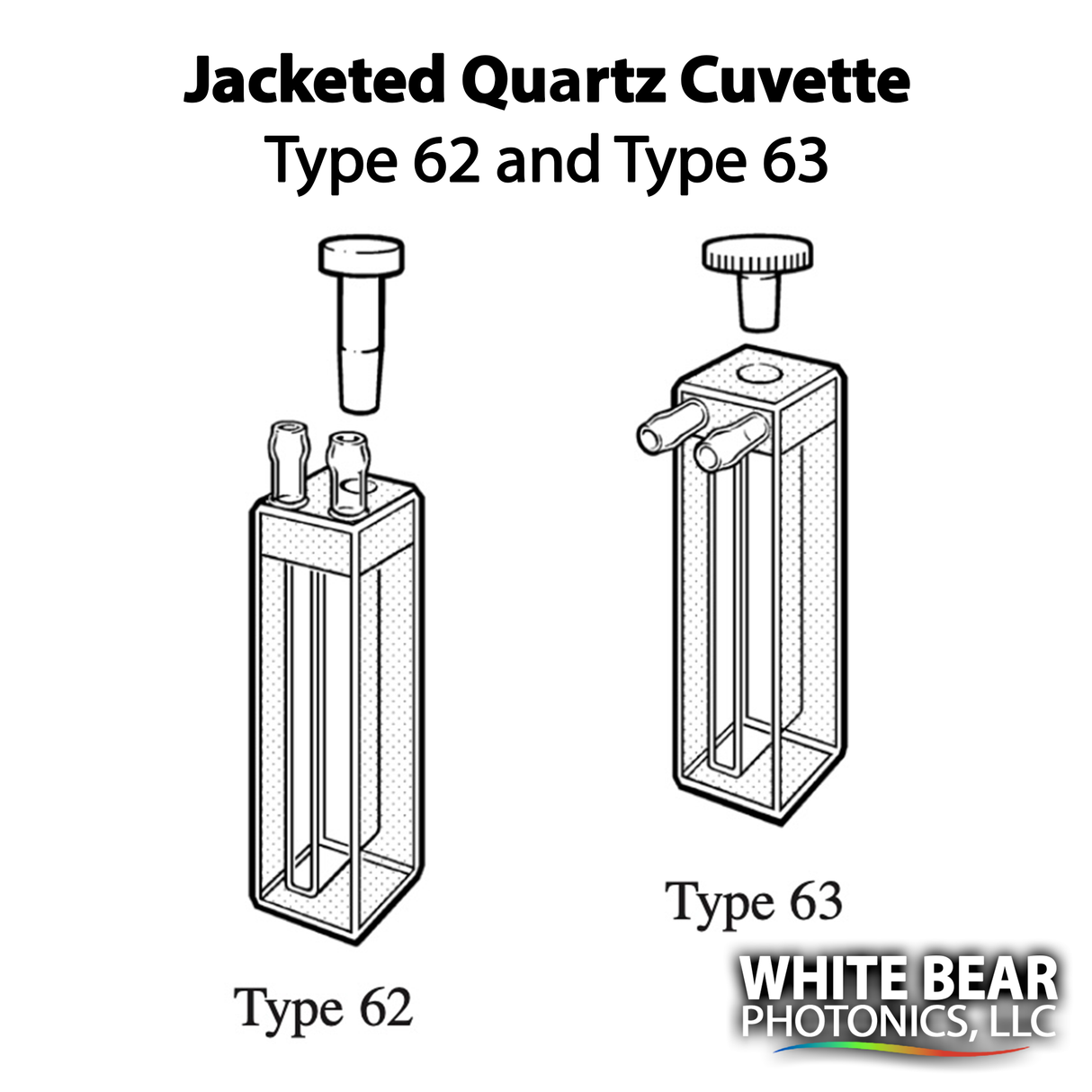

Constant temperature cell Types 62, 63 and 65 are designed with a separate chamber surrounding the sample compartment through which a temperature controlling fluid can be circulated to keep the sample at a specific temperature. Type 62 cells have connection tubes exiting from the top, Type 63 on the front face and Type 65 on the upper portion of the cell. The light beam of the spectrophotometer is not intended to pass through the water jacket. PTFE stoppers are supplied as pictured.
Starna Type 62 & 63 Rectangular Water-Jacketed Constant Temperature Cells with Vertical or Horizontal Flow Tubes / Window Material: Spectrosil Quartz, Usable Range: 170-2700nm
|
Starna Catalog No |
Path Length (mm) |
Ext Width (mm) |
Ext Length (mm) |
Ext Height (mm) |
Sample Chamber Width (mm) |
Sample Chamber Length (mm) |
Sample Chamber Height (mm) |
Overall Height (mm) |
Nominal Volume (ml) |
Number Polished Windows |
|
62-Q-10 |
10 |
12.5 |
12.5 |
48 |
4 |
10 |
40 |
60 |
1.520 |
2 |
|
63-Q-10 |
10 |
12.5 |
12.5 |
48 |
4 |
10 |
40 |
60 |
1.520 |
2 |
