(1-SOG-10) Standard Rectangular Cuvette, Special Optical Glass (SOG), 10mm
(1-SOG-10) Standard Rectangular Cuvette, Special Optical Glass (SOG), 10mm is backordered and will ship as soon as it is back in stock.
(1-SOG-10) Standard Rectangular Cuvette, Special Optical Glass (SOG...
Specifications
Specifications
-
Form Factor
-
Window Material
-
Pathlength (mm)
-
Z HeightUniversal
Standard rectangular cells or Macro cells, Type 1, are the most common cells used in analytical chemistry. The exterior dimensions allow the cells to be used with virtually every spectrophotometer and photometer instrument currently in use.

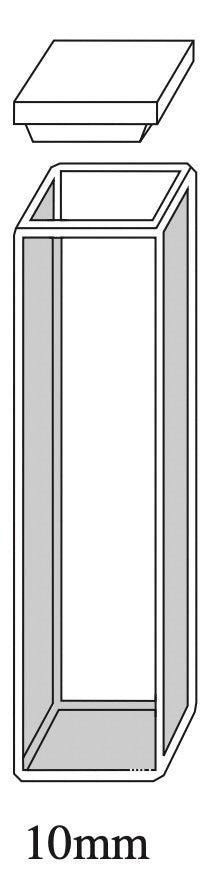

These cells have an exterior height of 45mm, two clear windows and an open top. The walls of the cell and the bottom are smooth on the inside. On the outside, the light path windows are clear while the adjacent windows and the bottom are frosted or grey. Typically, windows are 1.25mm thick and each cell in this range is supplied with a PTFE cover.
Starna 1-SOG Cuvette / Window Material: Special Optical Glass, 320-2500nm
|
Starna Catalog No. |
Path Length (mm) |
Exterior Width (mm) |
Exterior Length (mm) |
Exterior Height (mm) |
Interior Width (mm) |
Interior Length (mm) |
Nominal Volume (ml) |
Number Polished Windows |
|
1-SOG-10 |
10 |
12.5 |
12.5 |
45 |
10 |
10 |
3.500 |
2 |
