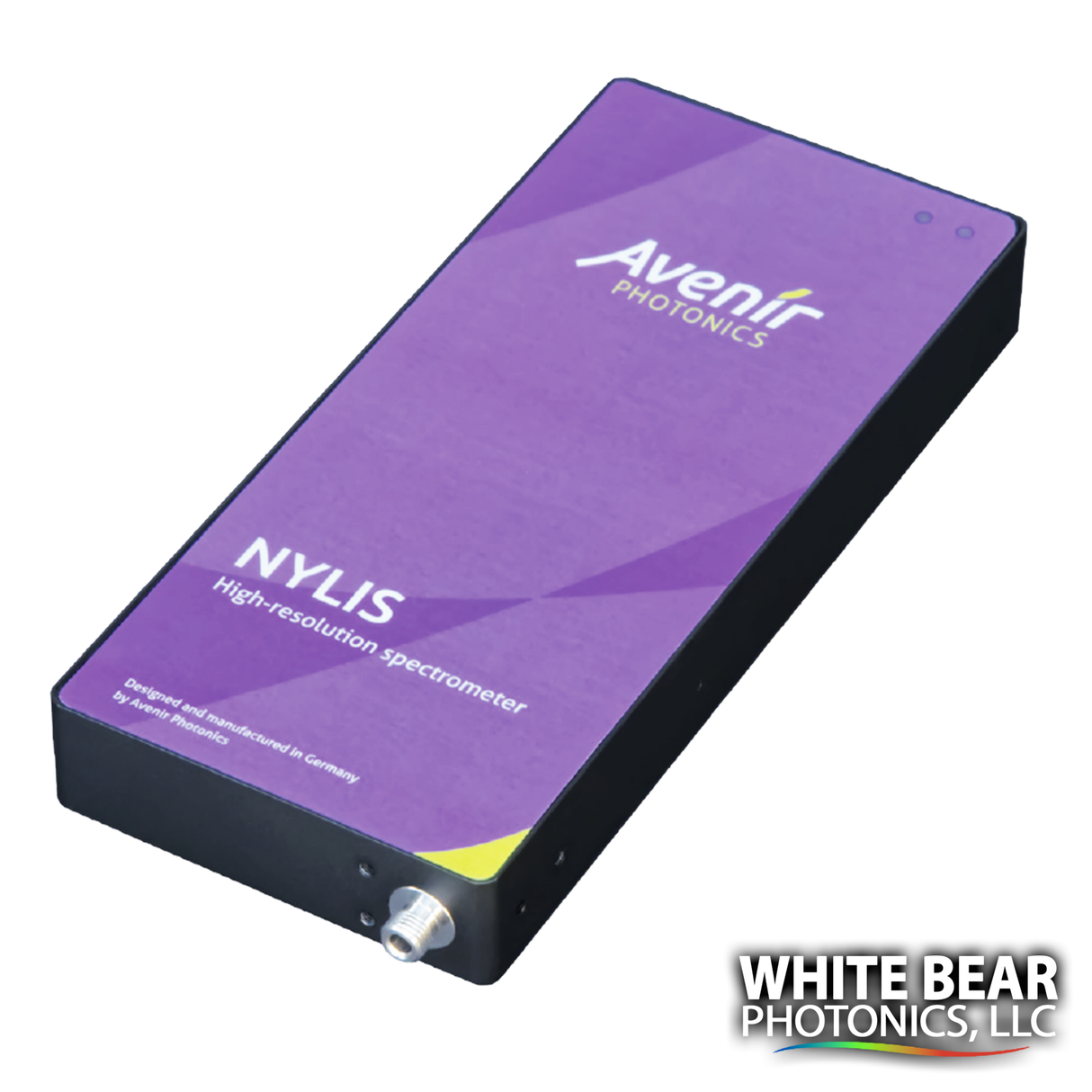

NYLIS High Resolution Compact VIS-NIR Spectrometer - Made-To-Order – White Bear Photonics

Specifications

Key Features

Excellent resolution, Free collection software & development software, On-board auto-exposure
Included Items

Compact Spectrometer, USB Cable, Factory Calibration Report & Certification, Free Collection Software (Windows), Open Source Software Development Kit
Dimensions

67.0 × 150.0 × 19.0 mm
Wavelength Range

380 - 540 nm
380 - 750 nm
400 - 500 nm
400 - 1000 nm
470 - 630 nm
500 - 600 nm
580 - 740 nm
620 - 700 nm
740 - 810 nm
750 - 1100 nm
800 - 860 nm
Wavelength Resolution

0.09 nm typ. , 0.11 nm max
0.19 nm typ. , 0.23 nm max
0.06 nm typ. , 0.07 nm max
0.40 nm typ. , 0.50 nm max
0.09 nm typ. , 0.11 nm max
0.06 nm typ. , 0.07 nm max
0.09 nm typ. , 0.11 nm max
0.06 nm typ. , 0.07 nm max
0.06 nm typ. , 0.07 nm max
0.20 nm typ. , 0.24 nm max
0.06 nm typ. , 0.07 nm max
Integration Time

54 μs − 35 min
Buffer Size

31 spectra
Fastest Collection Rate (steady state)

227 Hz (4.4 ms / scan)
Operational Temperature Range

-40°F to 140°F (-20°C to 60°C)
Operational Humidity Range

0 to 90%RH non-condensing
Digital Interfaces

USB 2.0 (Full Speed), UART

Datasheet

Full Specifications

Versatility

Fiber optic system allows remote measurements and configuring sampling to adapt to your specific test article
Scalability

From feasibility to pilot and beyond this spectrometer has robust performance to be incorporated into scaled up solutions.

Fiber optic visible spectrometer system for measuring transmission / absorption of liquids

Example Transmission System

This is an example versatile and expandable system is well suited for measuring the NIR transmission of liquids.

Potential Applications

Laser characterization
Specialty high resolution work

Applications May Require Additional Components
