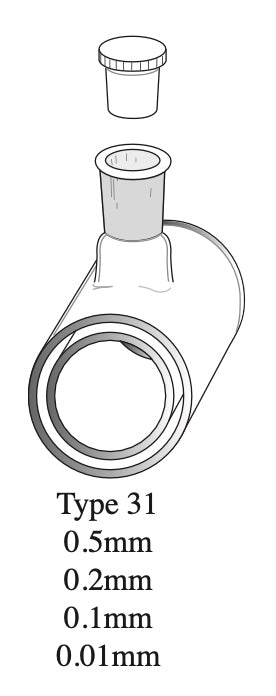

31-I Series Infrasil Quartz Cylindrical Micro Cells, 0.01-5mm
The Type 31 range has path lengths 0.01mm to 5mm, with a sample compartment aperture of 15mm. Please note when filling cylindrical cells, to avoid damage to the windows, do not fill cell to the top. Leave an air gap otherwise the windows will be broken by the hydraulic pressure of the stopper being inserted. A PTFE stopper is supplied with the cell.
Starna 31-I Series Cylindrical Cells / Window material: Infrasil quartz, 220-3800nm
|
Starna Catalog No |
Path Length (mm) |
Ext Width (mm) |
Ext Length (mm) |
Interior Width (mm) |
Interior Length (mm) |
Nominal Volume (ml) |
Number of Stoppers |
Number Polished Windows |
|
31-I-0.01 |
0.01 |
22 |
22.5 |
15 |
0.01 |
2.150 |
1 |
2 |
|
31-I-0.1 |
0.1 |
22 |
22.5 |
15 |
0.1 |
2.150 |
1 |
2 |
|
31-I-0.2 |
0.2 |
22 |
22.5 |
15 |
0.2 |
2.180 |
1 |
2 |
|
31-I-0.5 |
0.5 |
22 |
22.5 |
15 |
0.5 |
2.220 |
1 |
2 |
|
31-I-1 |
1 |
22 |
22.5 |
15 |
1 |
2.310 |
1 |
2 |
|
31-I-2 |
2 |
22 |
22.5 |
15 |
2 |
2.490 |
1 |
2 |
|
31-I-5 |
5 |
22 |
22.5 |
15 |
5 |
3.020 |
1 |
2 |
31-I Series Infrasil Quartz Cylindrical Micro Cells, 0.01-5mm - 31-I-0.01 is backordered and will ship as soon as it is back in stock.
31-I Series Infrasil Quartz Cylindrical Micro Cells, 0.01-5mm
