UV - VIS Fiber Coupled Light Source

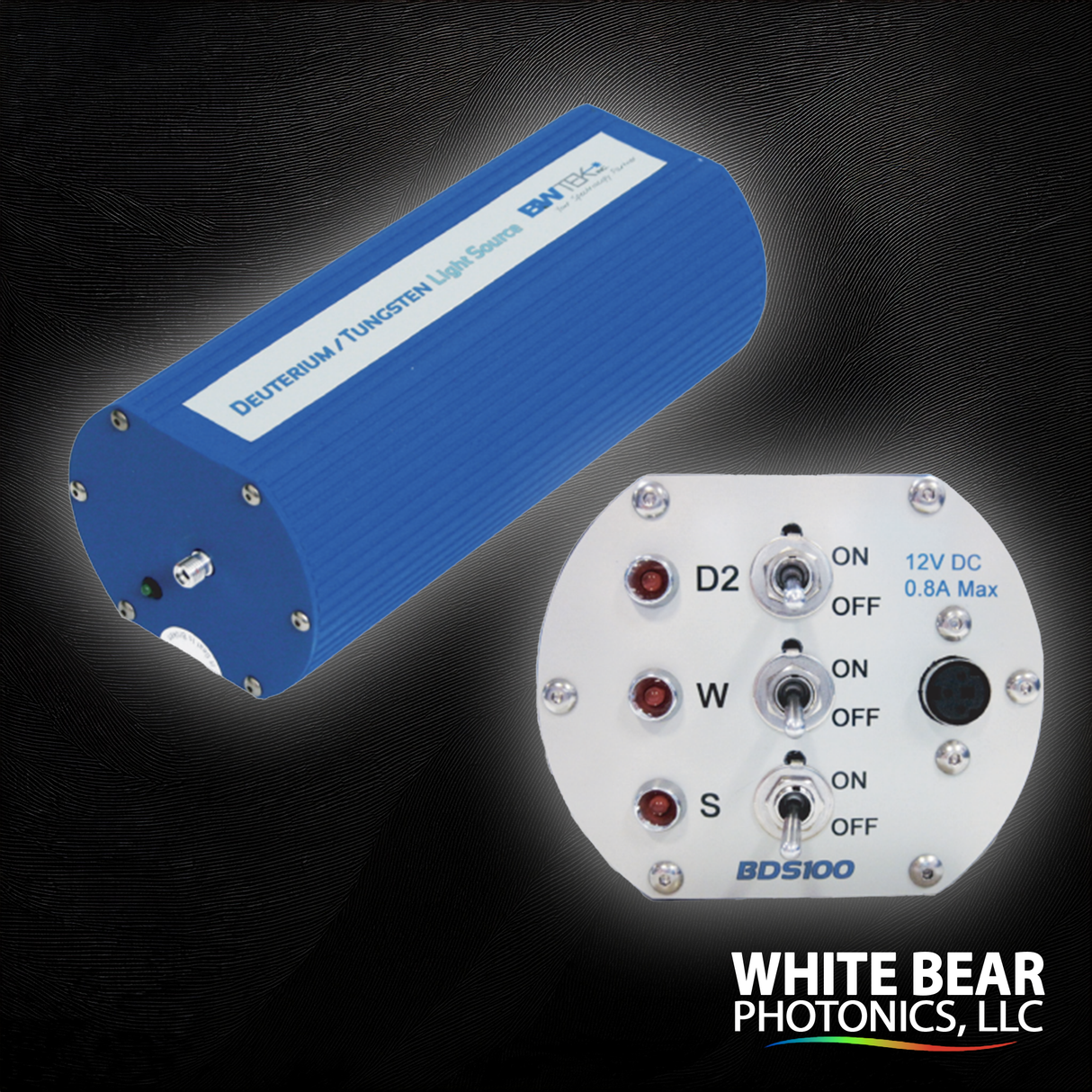

The BDS100 is a highly stable, turnkey fiber-coupled UV - VIS light source designed for precision spectroscopic applications. With a broad spectral output from 200 to >1100 nm, the BDS100 combines a deuterium lamp for deep UV (200–400 nm) with a tungsten halogen lamp for Vis/NIR (400–1100+ nm), offering seamless operation across a wide range. The system features independent on/off controls and a shutter, ensuring effortless switching between sources and collecting dark spectra.

Engineered for transmission experiments, the BDS100 boasts low power consumption (6W with both lamps on), high stability (<1 x 10⁻³ AU), and long lamp lifespans (Deuterium: ≥1000 hr, Tungsten: >2000 hr). Compact (171 x 76 x 63 mm) and lightweight (0.63 kg), the unit is ideal for research labs needing reliable, fiber-coupled illumination via an SMA 905 connector.
