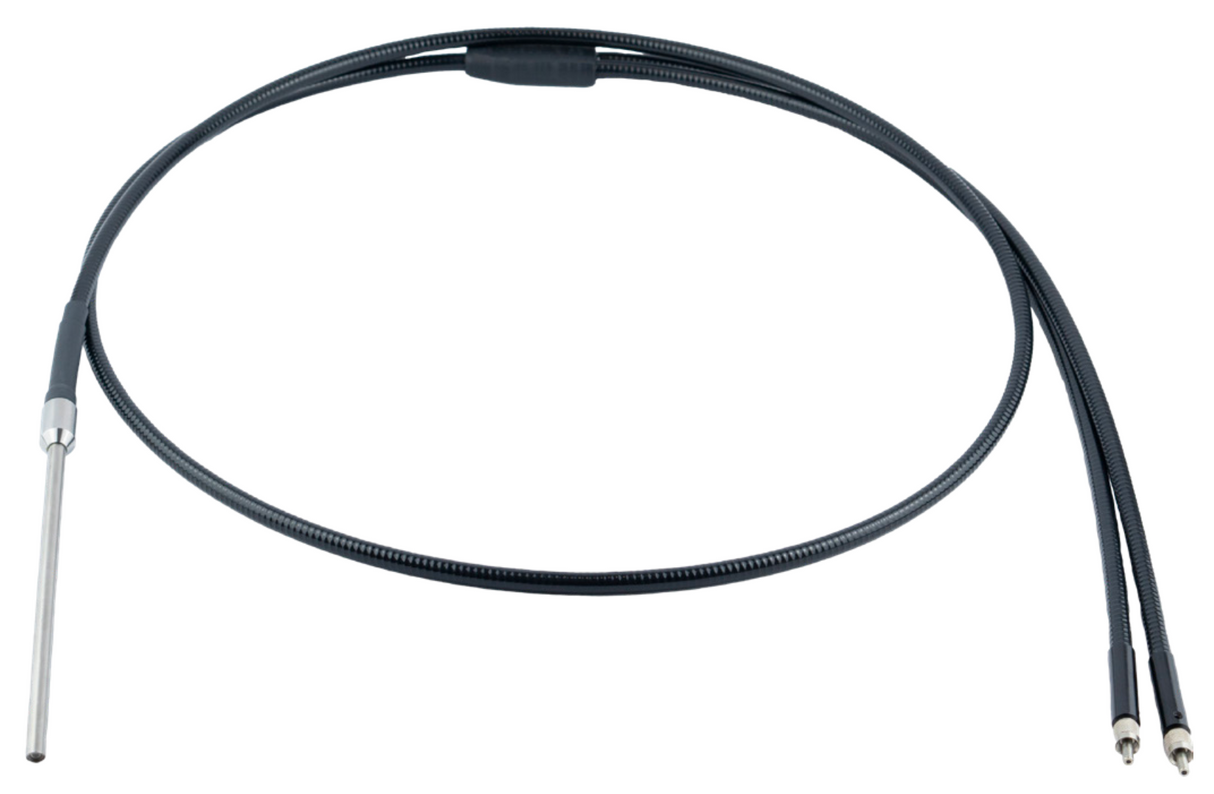

Specular Reflection Probes

Specular Reflection Probes from FlexiSpec® product line are designed to measure Specular Reflectance, Backscatter or Fluorescence of solid, liquid, and powder samples.

Main Features:

Sapphire window design without straight light

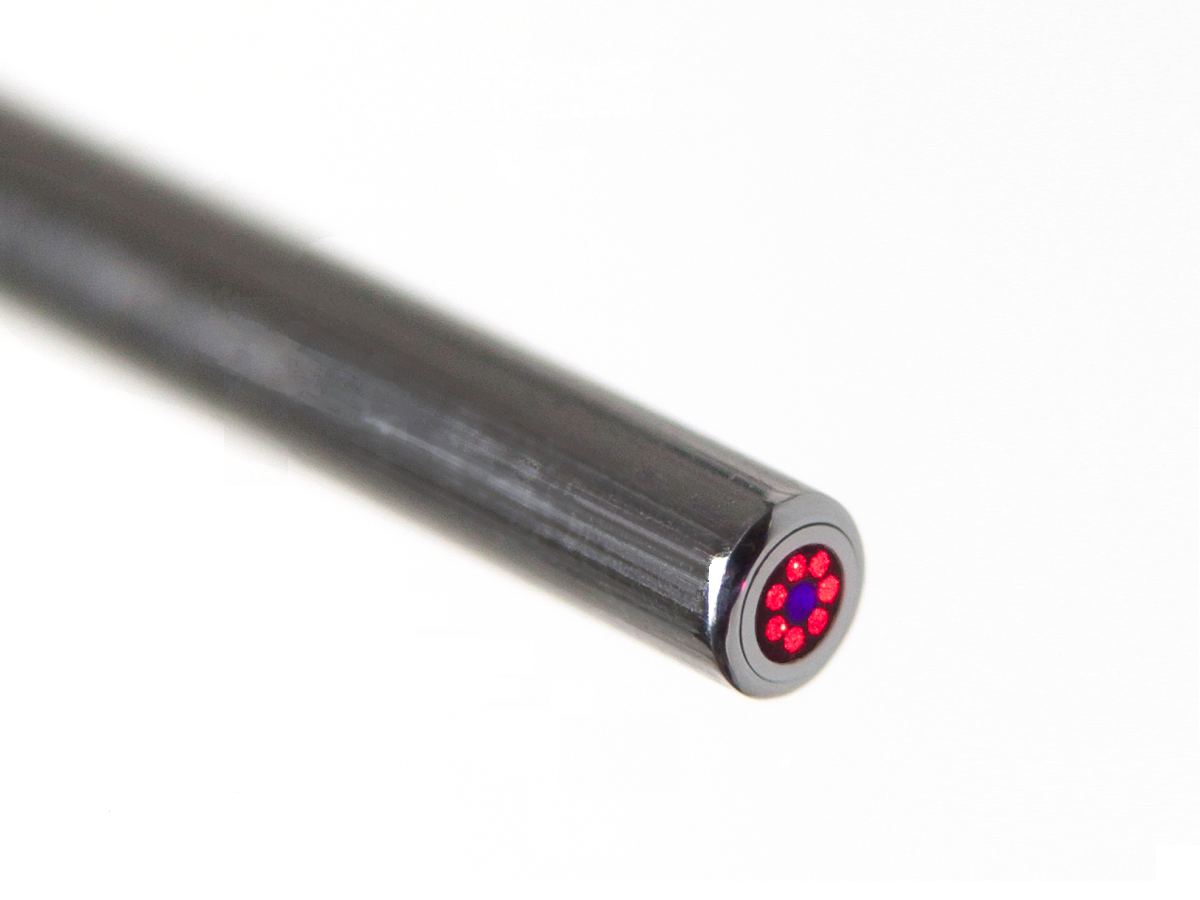

Possible design with thinnest probe tips d=0.5 mm
Dedicated design providing minimal cross talk due to using of Metal Coated Fibers
Flat or angled tip desing
Round-to-Round or Round-to-Line design
Extruder design on request

Applications:

Reaction monitoring in real time
Process Analytical Technologies (PAT)
Extrusion and Crystallization monitoring
Biopharmaceutical analysis
Biofuel development and production control
Food and beverage processes monitoring

Specifications:

Probe Type	Reflection
Sealing Material	Glue EPOTEK 353 ND
Window	Sapphire, 20° angle

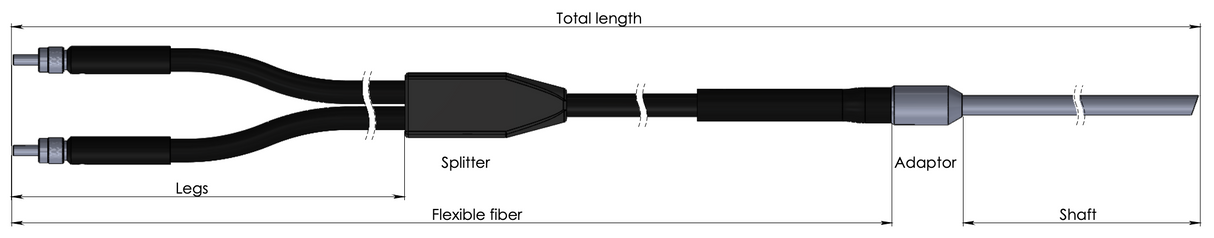

Probe Shaft	OD = 6 mm, L = 150 mm
Shaft Material	Stainless Steel 316L
Total Length	2 ± 0.05 m
Flexible Fiber	1.35 m, legs of 0.5 m length each
Terminations	2 x SMA905
Protection Tubing	Metal, PVC coated
Temperature	0 - +150 °C
Pressure	0 - 10 Bar

Available SKUs:

Product Code	Spectrometer Type	Article-No.	Bundle Arrangement	Spectral Range	Fiber Type
R-NIR-S-6-15-200/50-FT	FTIR (FT)	AP12488	3 + 4	380 - 2500 nm	NIR 600/660
R-NIR-S-6-15-200/50-DG	Diffraction Grating (DG)	AP12490	6 + 1	380 - 2500 nm	NIR 400/440
R-UV-S-6-15-200/50-DG	Diffraction Grating (DG)	AP12xxx	6 + 1	200 - 1200 nm	UV 400/440
