Description

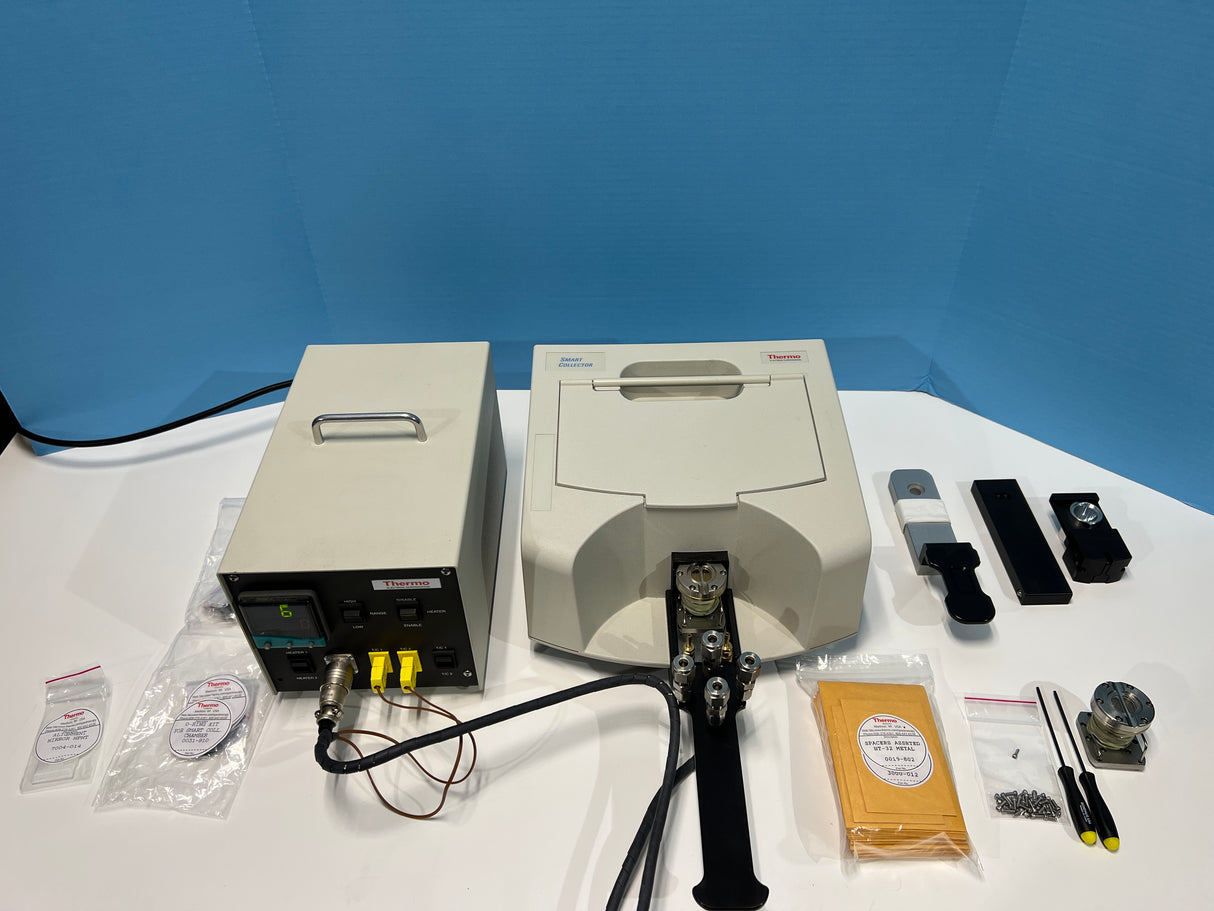

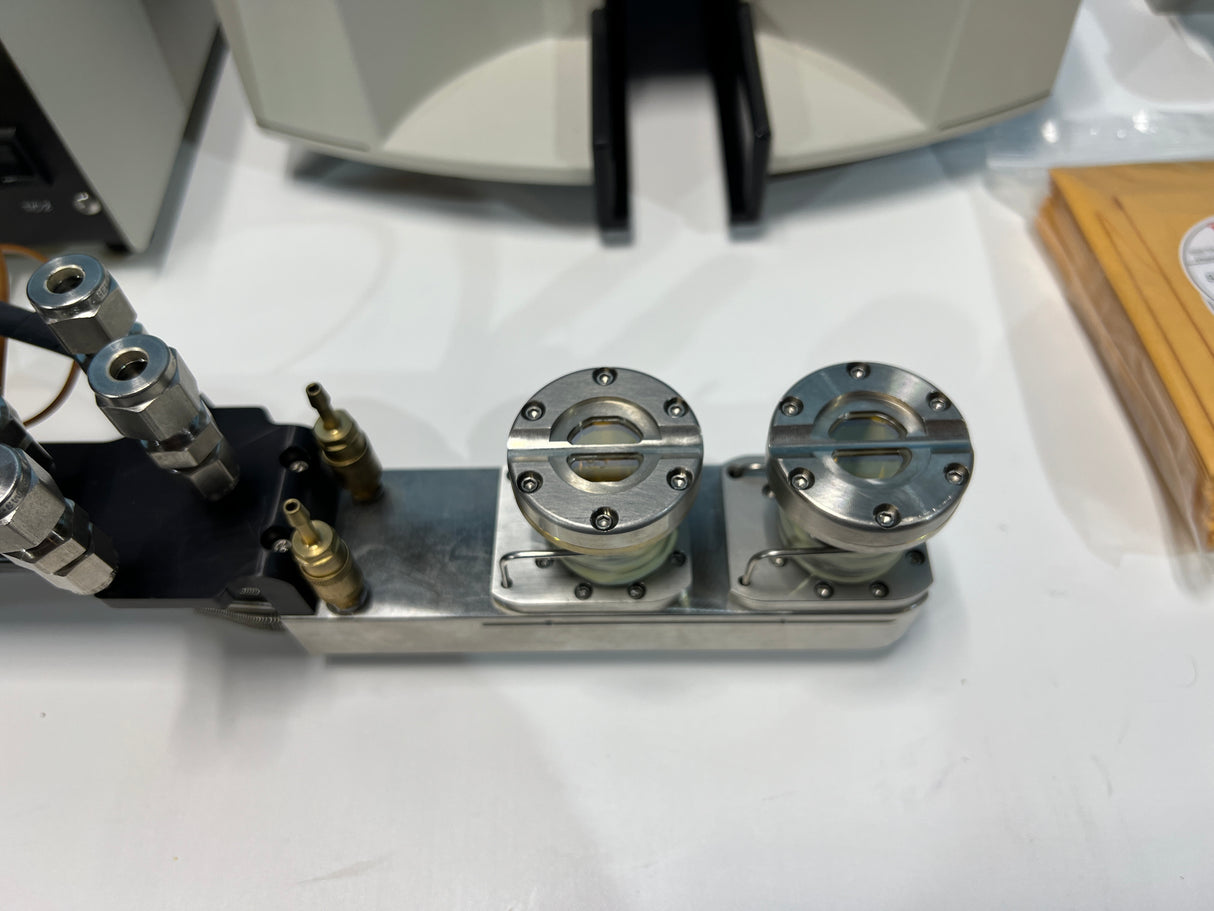

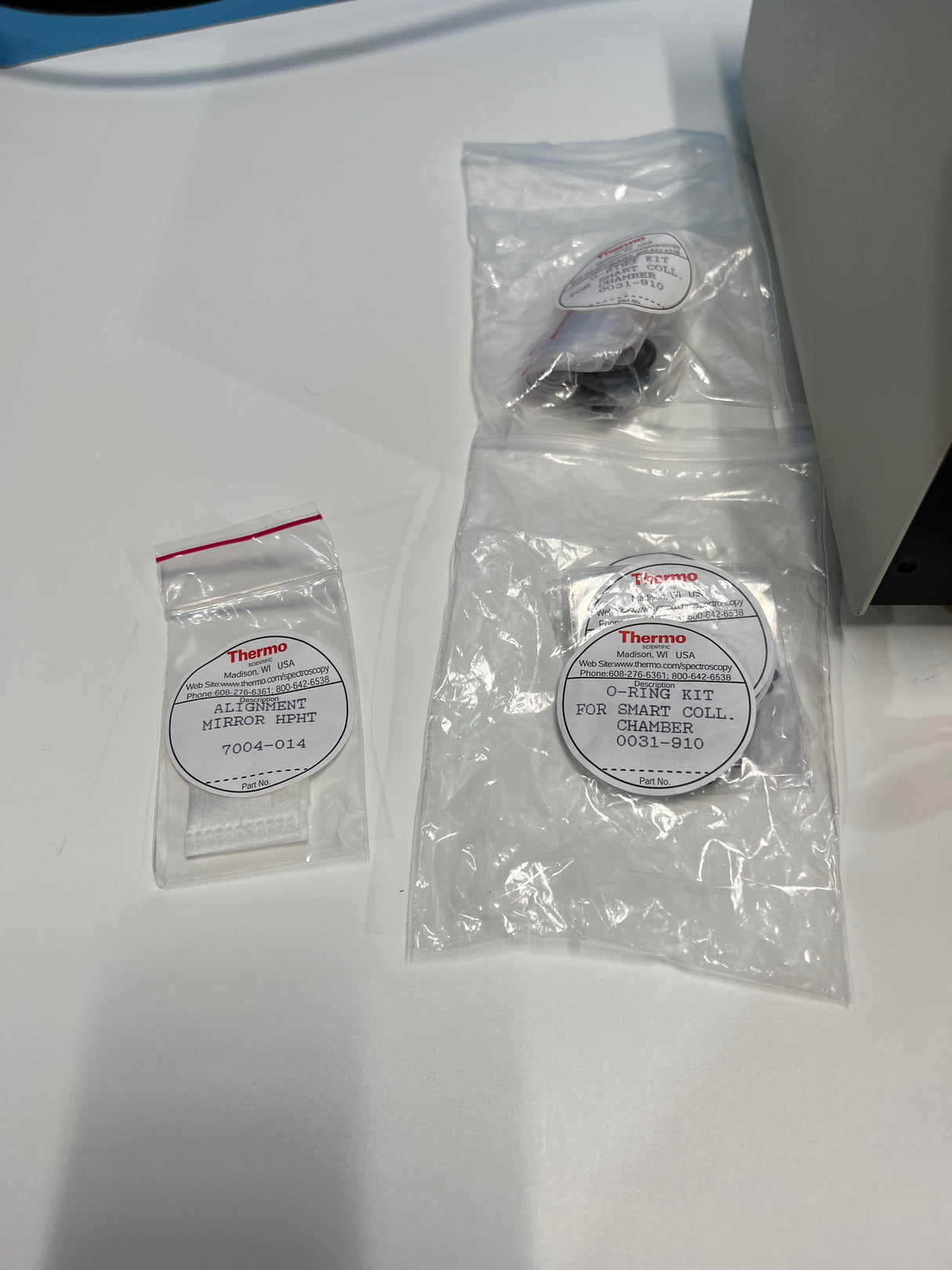

Thermo Dual Sample Environmental Chamber, with Heater controller and Smart Collector for measuring Diffuse Reflectance in the MID IR region. This is an open box unit that comes with all of the spacers, o-rings, plus a spare environmental chamber.
The Thermo Scientific Smart Collector, designed for the infrared analysis of solid samples, especially powdered materials, is one of the most advanced and versatile accessories for Diffuse Reflectance Infrared Fourier Transform Spectroscopy (DRIFTS). Diffuse reflection greatly simplifies the preparation of samples compared to traditional techniques such as KBr pellets and mulls. For the research laboratory environment, the Smart Collector utilizes a unique optical design that increases the percentage of diffuse reflection required to obtain nanogram levels of sensitivity. Combined with the environmental chamber option, the Smart Collector can perform a wide variety of diffuse reflectance experiments quickly and easily at elevated temperatures, high pressure, and vacuum conditions with minimal sample preparation.
Example Applications
- Solids
- Powders
- Organic and inorganic samples

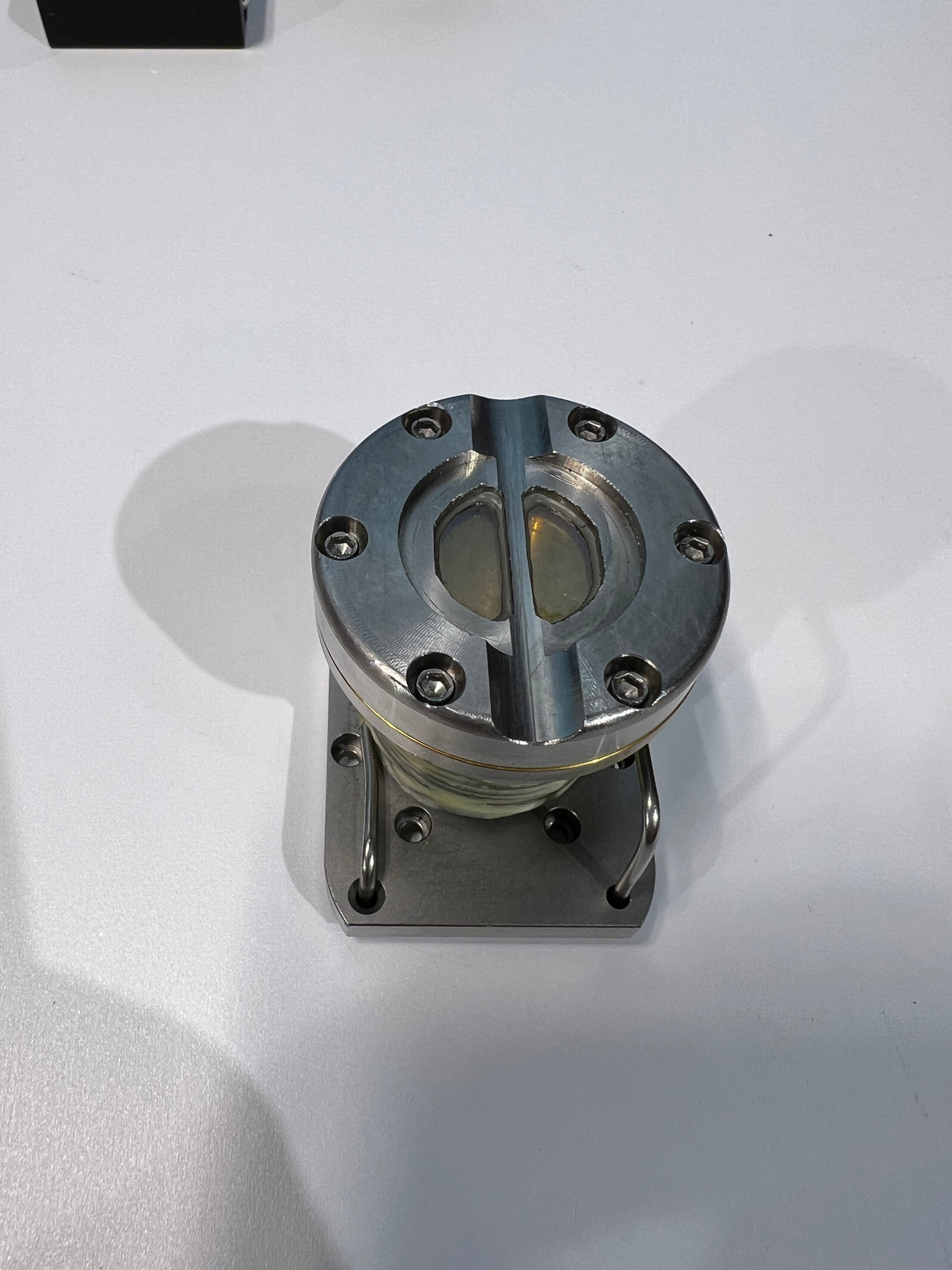

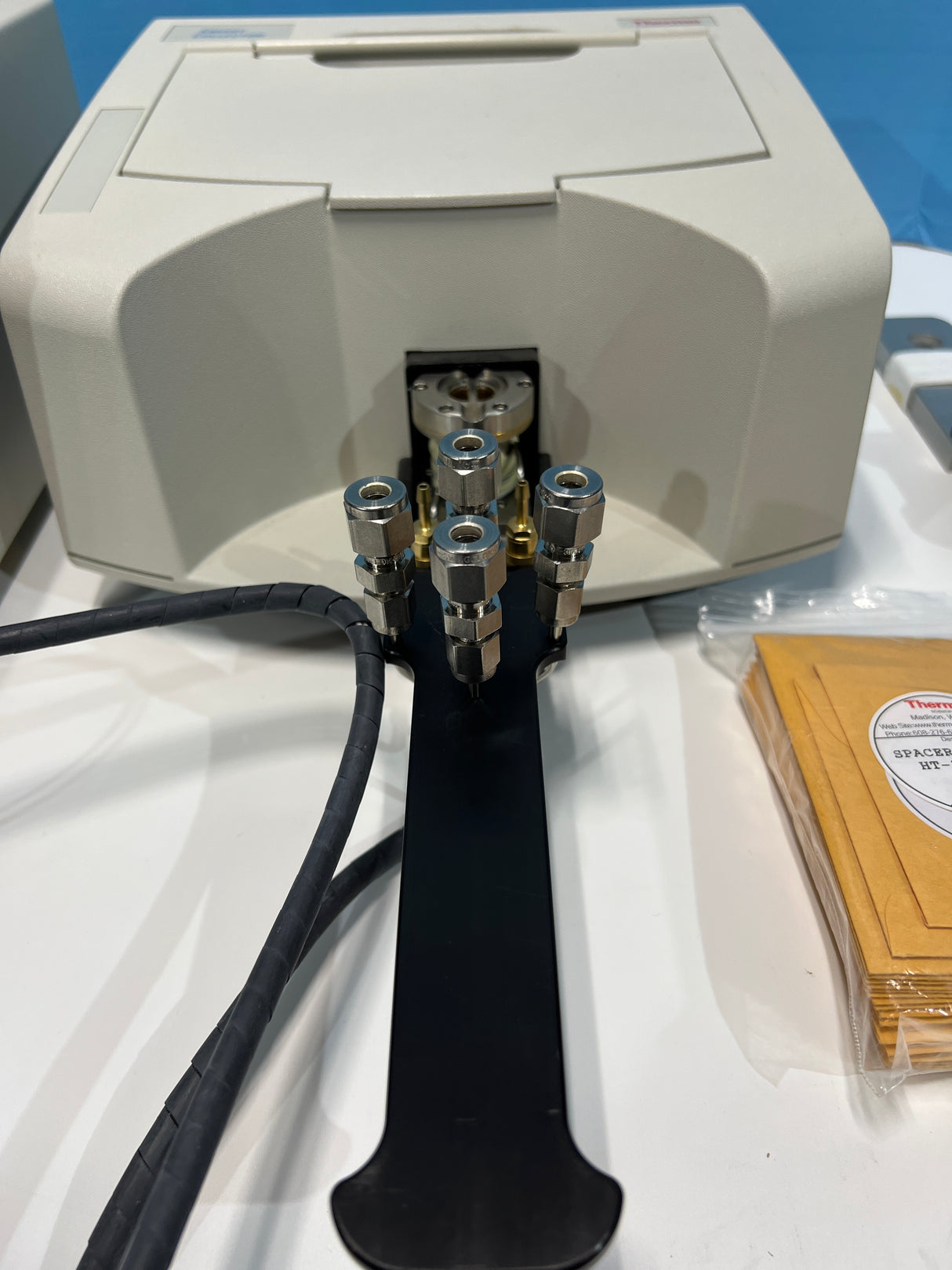

The Smart Collector is the only research diffuse reflectance accessory that has the optional, easy to use and install environmental chambers. These chambers can be quickly installed with minimal effort and with no realignment of the accessory. The ability to perform in-situ measurements of solid materials can provide invaluable information. Studies such as heterogeneous catalytic mechanisms, thermal degradation studies, and zeolite analyses can be monitored with elevated temperatures/pressure or under vacuum. Samples sensitive to oxygen or the atmosphere can be handled by preparing the chamber in a standard glove box.

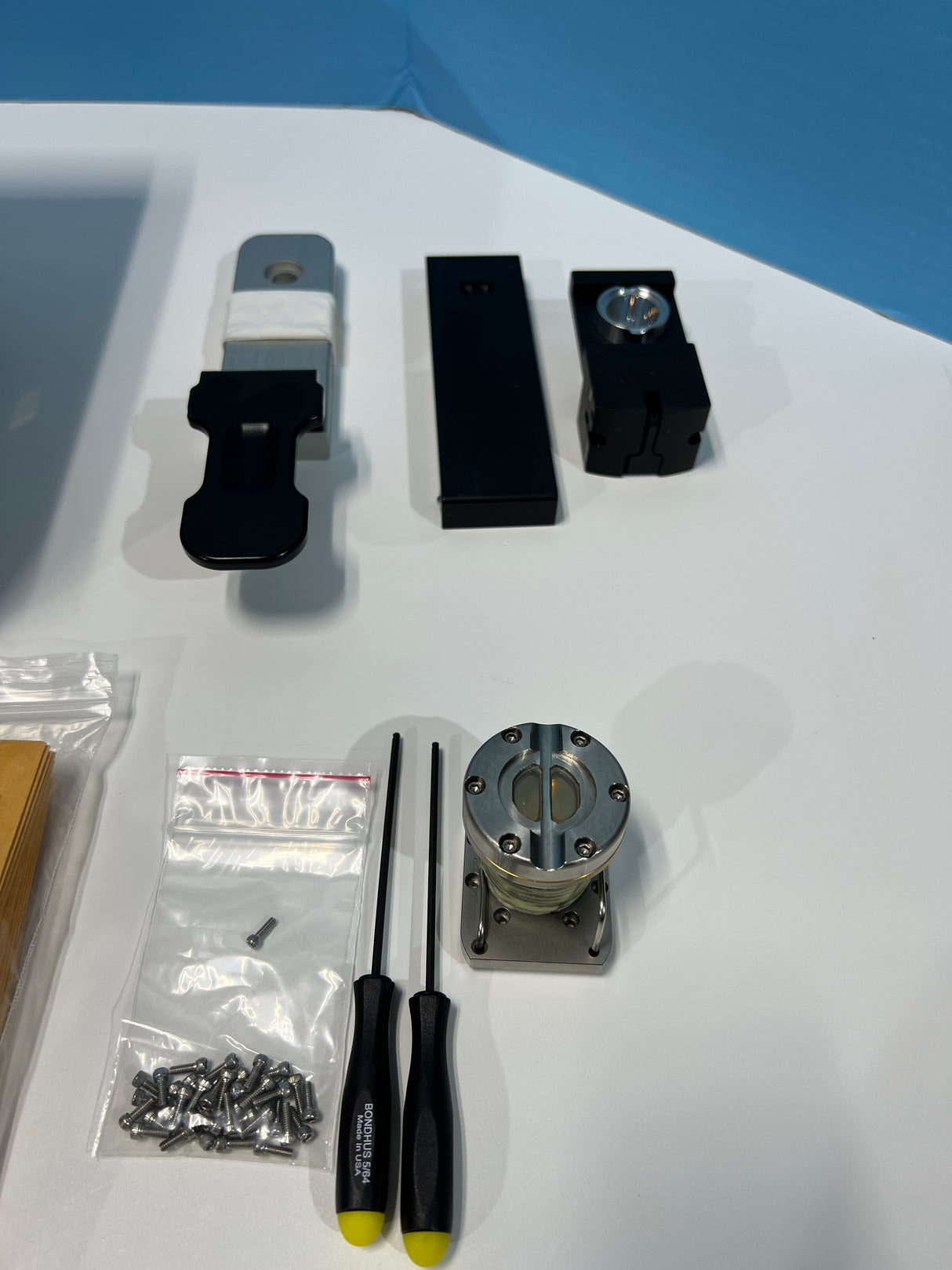

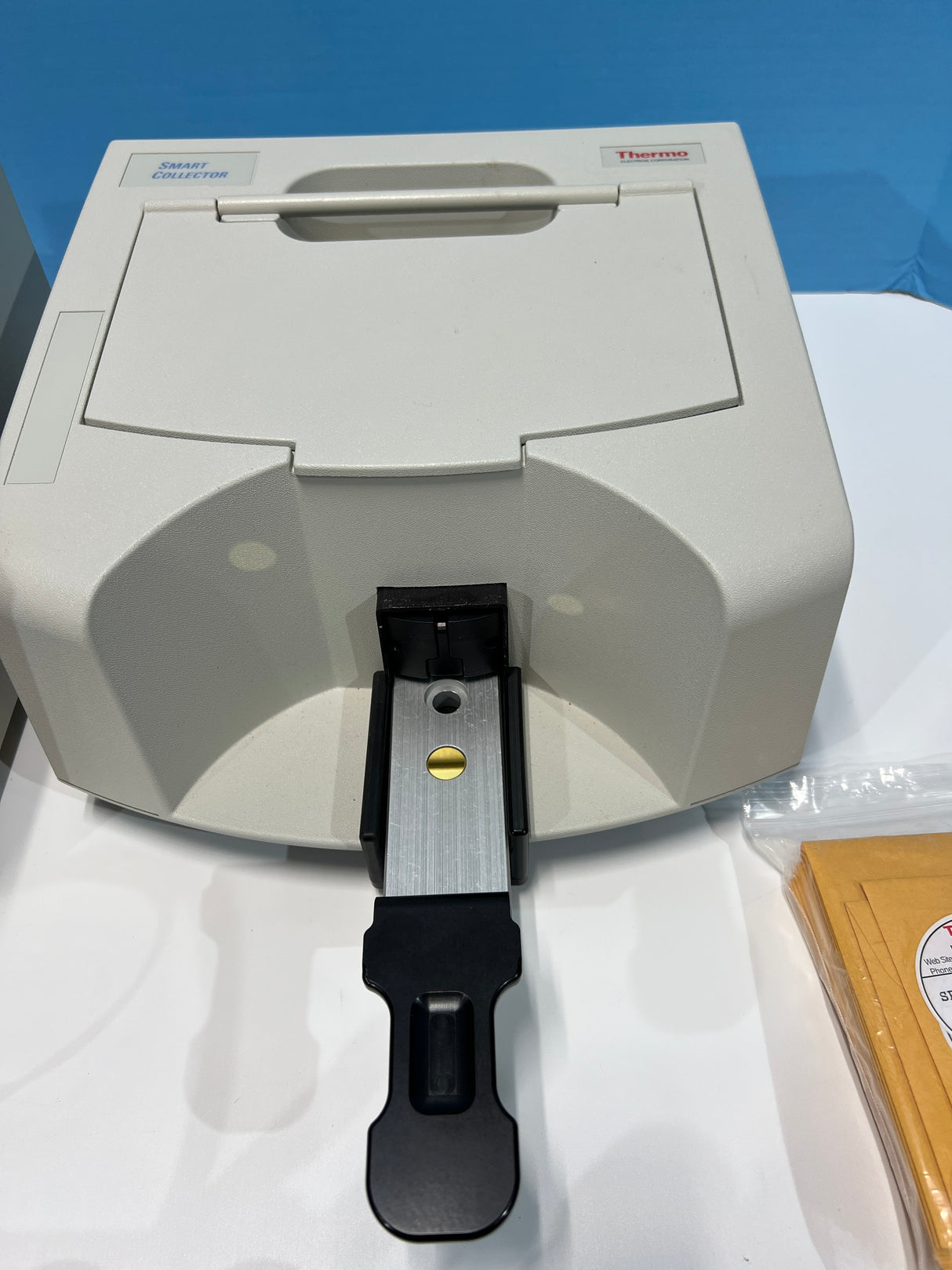

The Smart Collector has been designed for high energy throughput and ease of use. The Smart Collector comes complete with two sample holders. One holder has two integral sample cups within it. Typically, one of the positions is loaded with the sample, and the other is loaded with a reference material such as potassium bromide (KBr). The integral sample cups eliminate the need to worry about small parts that can be easily lost and makes it easy to load samples without the risk of dropping small sample cups. The second holder has an integral mirror mounted in it that can be used for performance testing, and a slot for a Si-Carb platen. The Si-Carb Sampling Kit is used to obtain spectra of hard, intractable samples, such as coatings, paints, and hard polymers. The Si-Carb kit includes the adhesive-backed silicon carbide paper that is used to abrade the surface to be analyzed, and a handle and platen to hold the paper. This technique transfers a small amount of sample to the disk. An infrared spectrum is obtained of the material clinging to the surface of the silicon carbide disk. If KBr is needed to dilute a sample for analysis, the convenient KBr Powder Packets can be used. Each of the KBr Powder Packets contains a convenient, pre-measured quantity of dry KBr for dispersing a sample.
Specifications
Sample Cup Volume: Approximately 0.25 gram
Environmental Chambers: Temperature, pressure and vacuum
KBr Powder
