Description
Sub-micro cells retain the exterior dimensions of a standard cell and are designed for the measurement of very small samples, with volumes ranging from 10μl to 160μl. The entrance to the sample compartment is hemispherical, being designed without sharp corners to eliminate potential loss of sample due to capillary action.
The amount of sample required to fill the sample chamber is reduced to an absolute minimum, typically fifteen to twenty per cent greater than the absolute sample chamber volume.
The sample compartment in the SubMicro range of cells optimizes the alignment of the sample for maximum sensitivity in the spectrophotometer. The sample is easily inserted into and retrieved from the cell, by careful use of a pipette. The correct 'Z' dimension needs to be selected for this range, typically 8.5 or 15mm.
Cells are supplied with a PTFE cover and a tight sealing polyethylene cap.

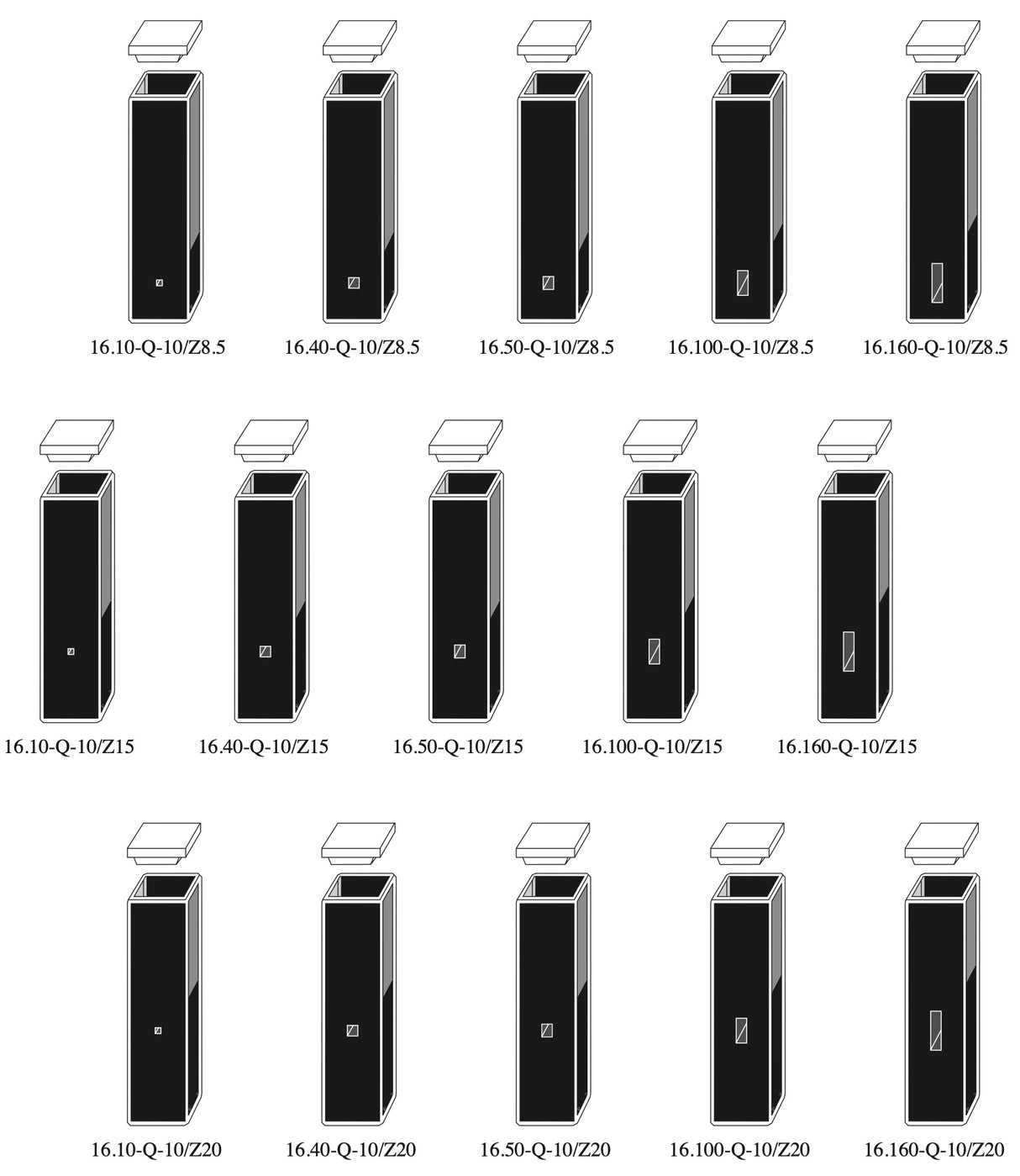

Starna 16-Q Series Sub-Micro Cuvettes / Window material: Quartz, 170-2700nm
|
Starna Catalog No |
Path Length (mm) |
Exterior Width (mm) |
Exterior Length (mm) |
Exterior Height (mm) |
Window Width (mm) |
Window Length (mm) |
“Z" Dimension (mm) |
Geometric Volume (ml) |
Aqueous Volume (ml) |
|
16.10-Q-10/Z8.5 |
10 |
12.5 |
12.5 |
45 |
1 |
1 |
8.5 |
10 |
15 |
|

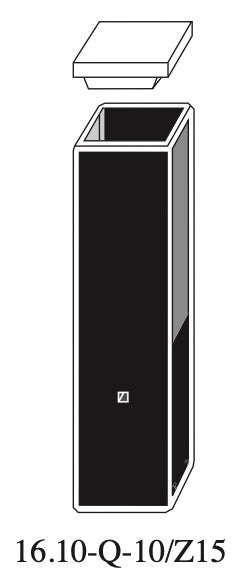

16.10-Q-10/Z15 |
10 |
12.5 |
12.5 |
45 |
1 |
1 |
15 |
10 |
15 |
|

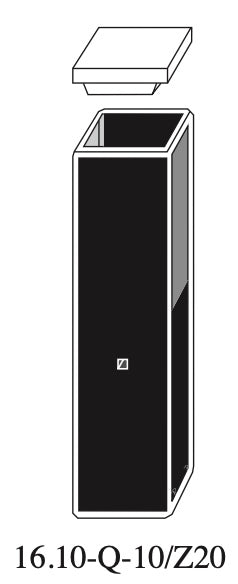

16.10-Q-10/Z20 |
10 |
12.5 |
12.5 |
45 |
1 |
1 |
20 |
10 |
15 |
|
16.40-Q-10/8.5 |
10 |
12.5 |
12.5 |
45 |
2 |
2 |
8.5 |
40 |
55 |
|

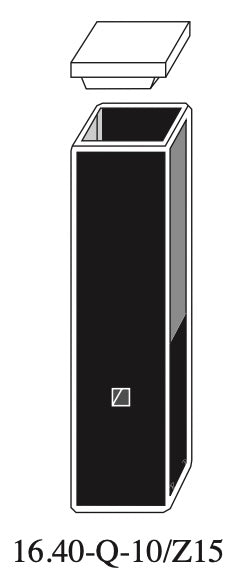

16.40-Q-10/Z15 |
10 |
12.5 |
12.5 |
45 |
2 |
2 |
15 |
40 |
55 |
|
16.40-Q-10/Z20 |
10 |
12.5 |
12.5 |
45 |
2 |
2 |
20 |
40 |
55 |
|

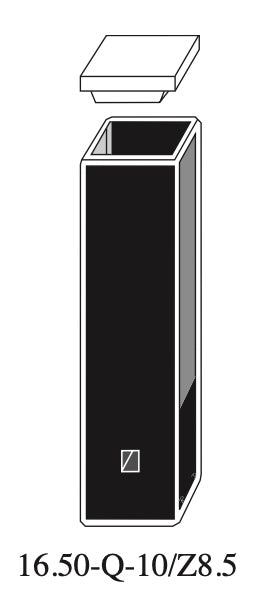

16.50-Q-10/Z8.5 |
10 |
12.5 |
12.5 |
45 |
2 |
2.5 |
8.5 |
50 |
65 |
|

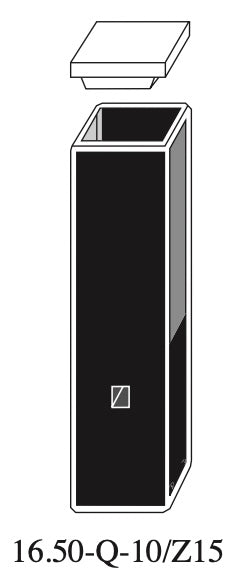

16.50-Q-10/Z15 |
10 |
12.5 |
12.5 |
45 |
2 |
2.5 |
15 |
50 |
65 |
|

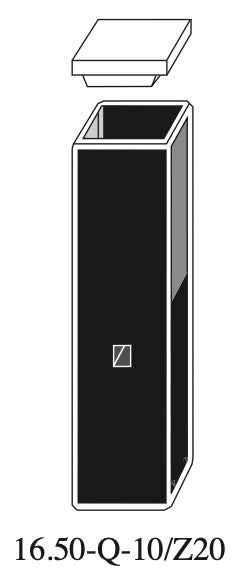

16.50-Q-10/Z20 |
10 |
12.5 |
12.5 |
45 |
2 |
2.5 |
20 |
50 |
65 |
|

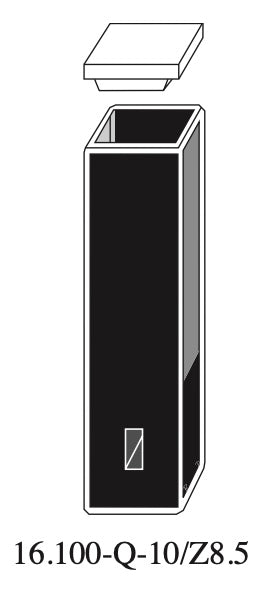

16.100-Q-10/Z8.5 |
10 |
12.5 |
12.5 |
45 |
2 |
5 |
8.5 |
100 |
115 |
|
16.100-Q-10/Z15 |
10 |
12.5 |
12.5 |
45 |
2 |
5 |
15 |
100 |
115 |
|

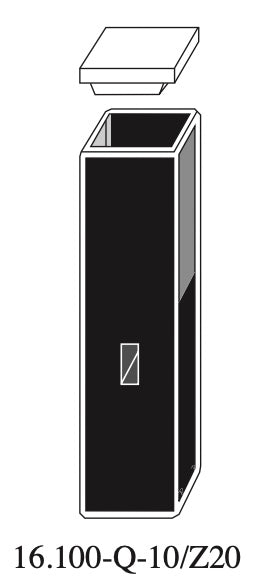

16.100-Q-10/Z20 |
10 |
12.5 |
12.5 |
45 |
2 |
5 |
20 |
100 |
115 |
|

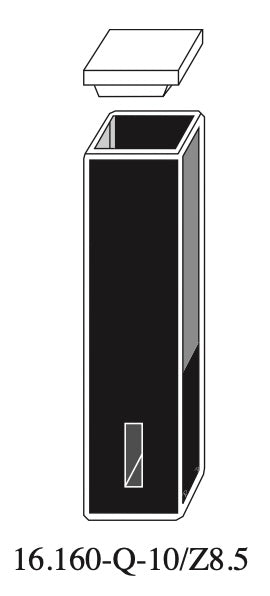

16.160-Q-10/Z8.5 |
10 |
12.5 |
12.5 |
45 |
2 |
8 |
8.5 |
160 |
175 |
|

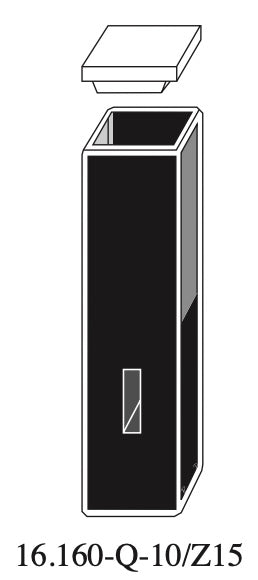

16.160-Q-10/Z15 |
10 |
12.5 |
12.5 |
45 |
2 |
8 |
15 |
160 |
175 |
|

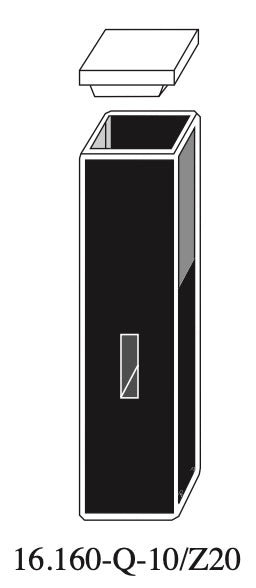

16.160-Q-10/Z20 |
10 |
12.5 |
12.5 |
45 |
2 |
8 |
20 |
160 |
175 |
