16-Q Series Sub-Micro Rectangular Quartz Cuvettes, 10mm

StarnaSKU: 16.10-Q-10/Z8.5

SKU: 16.10-Q-10/Z8.5
Price:
Sale price$396.74

Description

Sub­-micro cells retain the exterior dimensions of a stan­dard cell and are designed for the measurement of very small samples, with volumes ranging from 10μl to 160μl. The entrance to the sample compartment is hemispherical, being designed without sharp corners to eliminate poten­tial loss of sample due to capillary action.

The amount of sample required to fill the sample chamber is reduced to an absolute minimum, typically fifteen to twenty per cent greater than the absolute sample chamber volume.

The sample compartment in the Sub­Micro range of cells optimizes the alignment of the sample for maximum sen­sitivity in the spectrophotometer. The sample is easily inserted into and retrieved from the cell, by careful use of a pipette. The correct 'Z' dimension needs to be selected for this range, typically 8.5 or 15mm.

Cells are supplied with a PTFE cover and a tight sealing polyethylene cap.

Starna 16-Q Series Sub-Micro Cuvettes / Window material: Quartz, 170-2700nm

Starna

Catalog

No

Path

Length

(mm)

Exterior

Width

(mm)

Exterior

Length

(mm)

Exterior

Height

(mm)

Window

Width

(mm)

Window

Length

(mm)

“Z"

Dimension

(mm)

Geometric

Volume

(ml)

Aqueous

Volume

(ml)

16.10-Q-10/Z8.5

10

12.5

12.5

45

1

1

8.5

10

15

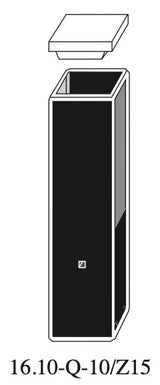

16.10-Q-10/Z15

10

12.5

12.5

45

1

1

15

10

15

16.10-Q-10/Z20

10

12.5

12.5

45

1

1

20

10

15

16.40-Q-10/8.5

10

12.5

12.5

45

2

2

8.5

40

55

16.40-Q-10/Z15

10

12.5

12.5

45

2

2

15

40

55

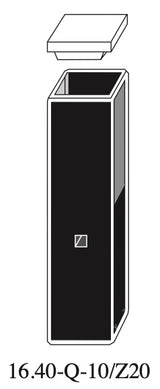

16.40-Q-10/Z20

10

12.5

12.5

45

2

2

20

40

55

16.50-Q-10/Z8.5

10

12.5

12.5

45

2

2.5

8.5

50

65

16.50-Q-10/Z15

10

12.5

12.5

45

2

2.5

15

50

65

16.50-Q-10/Z20

10

12.5

12.5

45

2

2.5

20

50

65

16.100-Q-10/Z8.5

10

12.5

12.5

45

2

5

8.5

100

115

16.100-Q-10/Z15

10

12.5

12.5

45

2

5

15

100

115

16.100-Q-10/Z20

10

12.5

12.5

45

2

5

20

100

115

16.160-Q-10/Z8.5

10

12.5

12.5

45

2

8

8.5

160

175

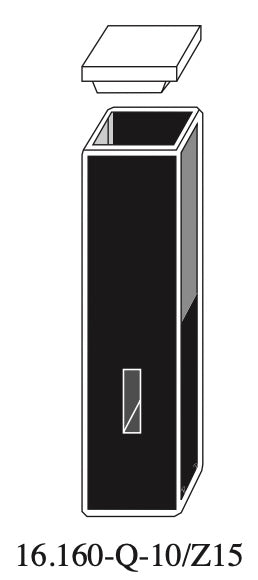

16.160-Q-10/Z15

10

12.5

12.5

45

2

8

15

160

175

16.160-Q-10/Z20

10

12.5

12.5

45

2

8

20

160

175
