31B-Q Series Self-Masking Quartz Cylindrical Micro Cells, 0.01-5mm
31B-Q Series Self-Masking Quartz Cylindrical Micro Cells, 0.01-5mm - 31B-Q-0.01 is backordered and will ship as soon as it is back in stock.
31B-Q Series Self-Masking Quartz Cylindrical Micro Cells, 0.01-5mm
Specifications
Specifications
-
Form Factor
-
Window Material
-
Pathlength (mm)
-
Z HeightUniversalUniversalUniversalUniversalUniversalUniversalUniversalUniversal

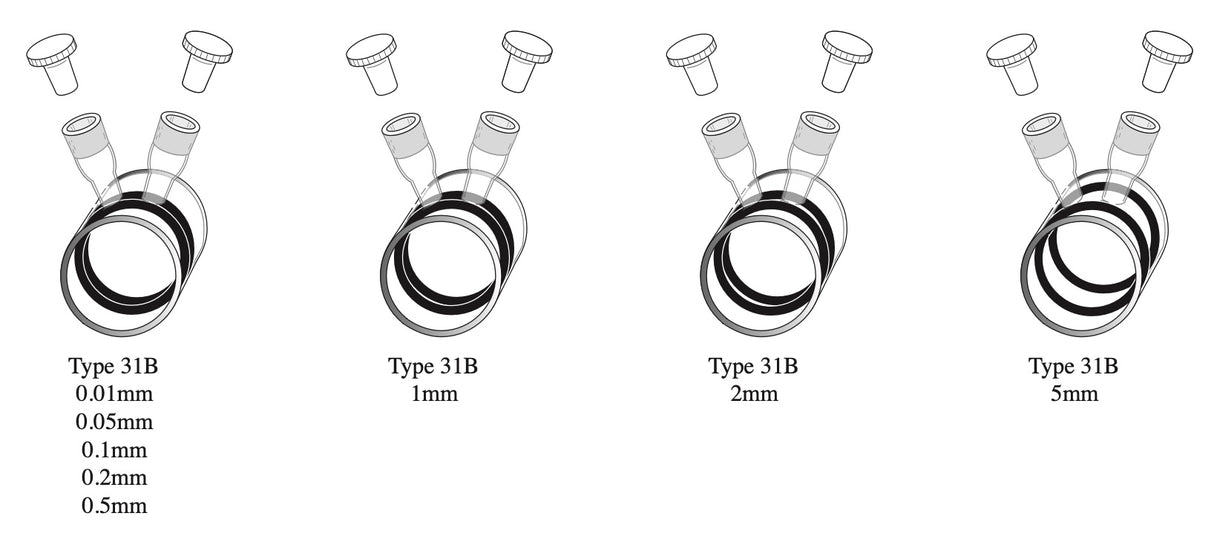

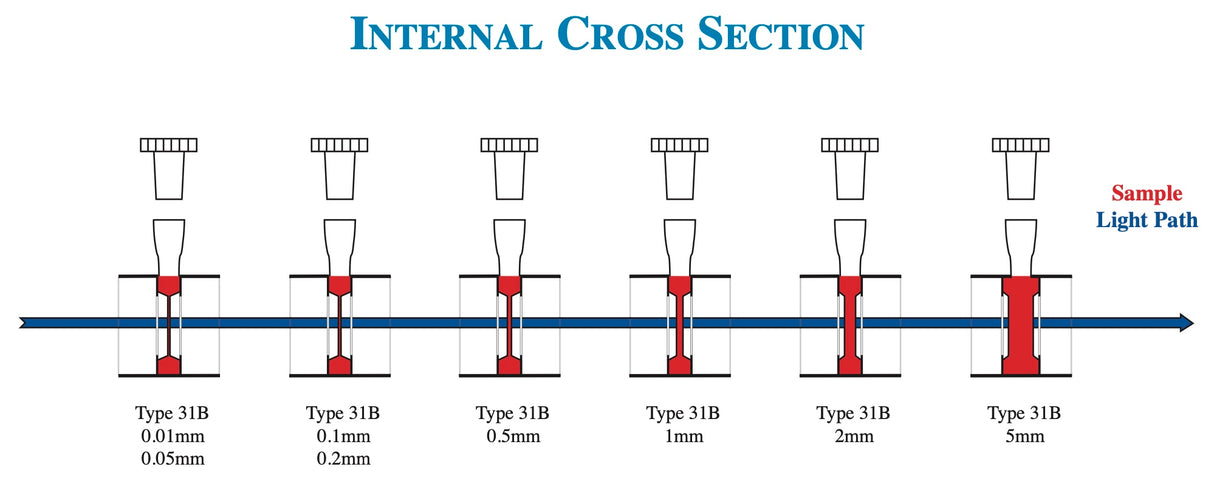

The Type 31B range has path lengths 0.01mm to 5mm, with a sample compartment aperture of 13mm. The structure of this cylindrical cell allows for lower volume usage as compared to the requirements of the Type 31 cells.

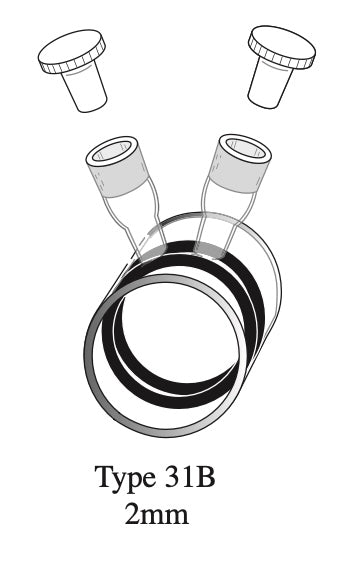

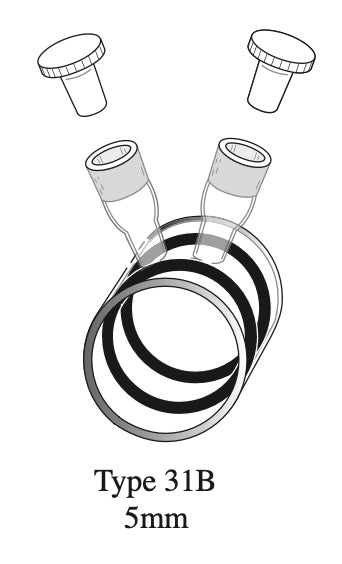

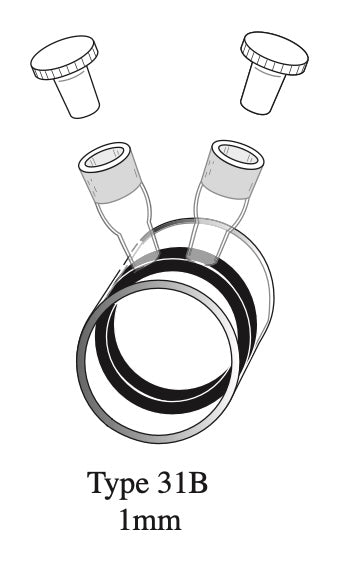

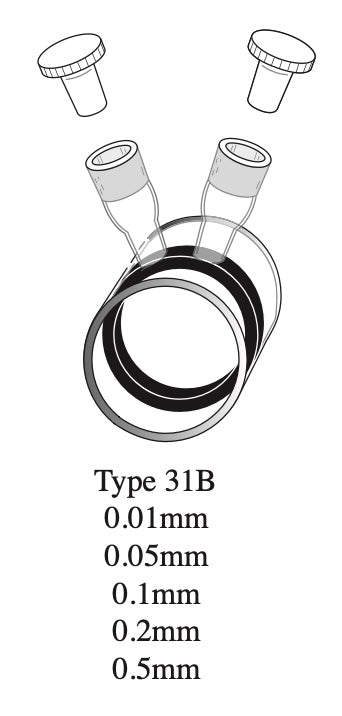

Please note when filling cylindrical cells, to avoid damage to the windows, do not fill cell to the top. Leave an air gap otherwise the windows will be broken by the hydraulic pressure of the stopper being inserted. PTFE stoppers are supplied with these cells as shown in drawing below.
The tubulations are 7mm OD x 5mm ID.
Starna 31B-Q Series Self-MaskingCylindrical Micro Cells / Window material: Quartz, 170-2700nm
|
Starna Catalog No |
Path Length (mm) |
Ext Width (mm) |
Ext Length (mm) |
Interior Width (mm) |
Interior Length (mm) |
Nominal Volume (ml) |
Number of Stoppers |
Number Polished Windows |
|
31B-Q-0.01 |
0.01 |
22 |
22.5 |
13 |
0.01 |
0.140 |
2 |
2 |
|
31B-Q-0.05 |
0.05 |
22 |
22.5 |
13 |
0.05 |
0.151 |
2 |
2 |
|
31B-Q-0.1 |
0.1 |
22 |
22.5 |
13 |
0.1 |
0.165 |
2 |
2 |
|
31B-Q-0.2 |
0.2 |
22 |
22.5 |
13 |
0.2 |
0.194 |
2 |
2 |
|
31B-Q-0.5 |
0.5 |
22 |
22.5 |
13 |
0.5 |
0.278 |
2 |
2 |
|
31B-Q-1 |
1 |
22 |
22.5 |
13 |
1 |
0.420 |
2 |
2 |
|
31B-Q-2 |
2 |
22 |
22.5 |
13 |
2 |
0.703 |
2 |
2 |
|
31B-Q-5 |
5 |
22 |
22.5 |
13 |
5 |
1.552 |
2 |
2 |
