31B-Q Series Self-Masking Quartz Cylindrical Micro Cells, 0.01-5mm

StarnaSKU: 31B-Q-0.01

SKU: 31B-Q-0.01
Price:
Sale price$766.97

Description

The Type 31B range has path lengths 0.01mm to 5mm, with a sample compartment aperture of 13mm. The structure of this cylindrical cell allows for lower volume usage as compared to the requirements of the Type 31 cells.

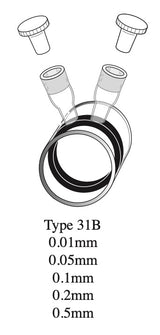

Please note when filling cylindrical cells, to avoid damage to the windows, do not fill cell to the top. Leave an air gap otherwise the windows will be broken by the hydraulic pressure of the stopper being inserted. PTFE stoppers are supplied with these cells as shown in drawing below.

The tubulations are 7mm OD x 5mm ID.

Starna 31B-Q Series Self-MaskingCylindrical Micro Cells / Window material: Quartz, 170-2700nm

Starna

Catalog

No

Path

Length

(mm)

Ext

Width

(mm)

Ext

Length

(mm)

Interior

Width

(mm)

Interior

Length

(mm)

Nominal

Volume

(ml)

Number

of

Stoppers

Number

Polished

Windows

31B-Q-0.01

0.01

22

22.5

13

0.01

0.140

2

2

31B-Q-0.05

0.05

22

22.5

13

0.05

0.151

2

2

31B-Q-0.1

0.1

22

22.5

13

0.1

0.165

2

2

31B-Q-0.2

0.2

22

22.5

13

0.2

0.194

2

2

31B-Q-0.5

0.5

22

22.5

13

0.5

0.278

2

2

31B-Q-1

1

22

22.5

13

1

0.420

2

2

31B-Q-2

2

22

22.5

13

2

0.703

2

2

31B-Q-5

5

22

22.5

13

5

1.552

2

2
