Avenir Photonics  |  SKU: ARIS-185-1000-20-S11

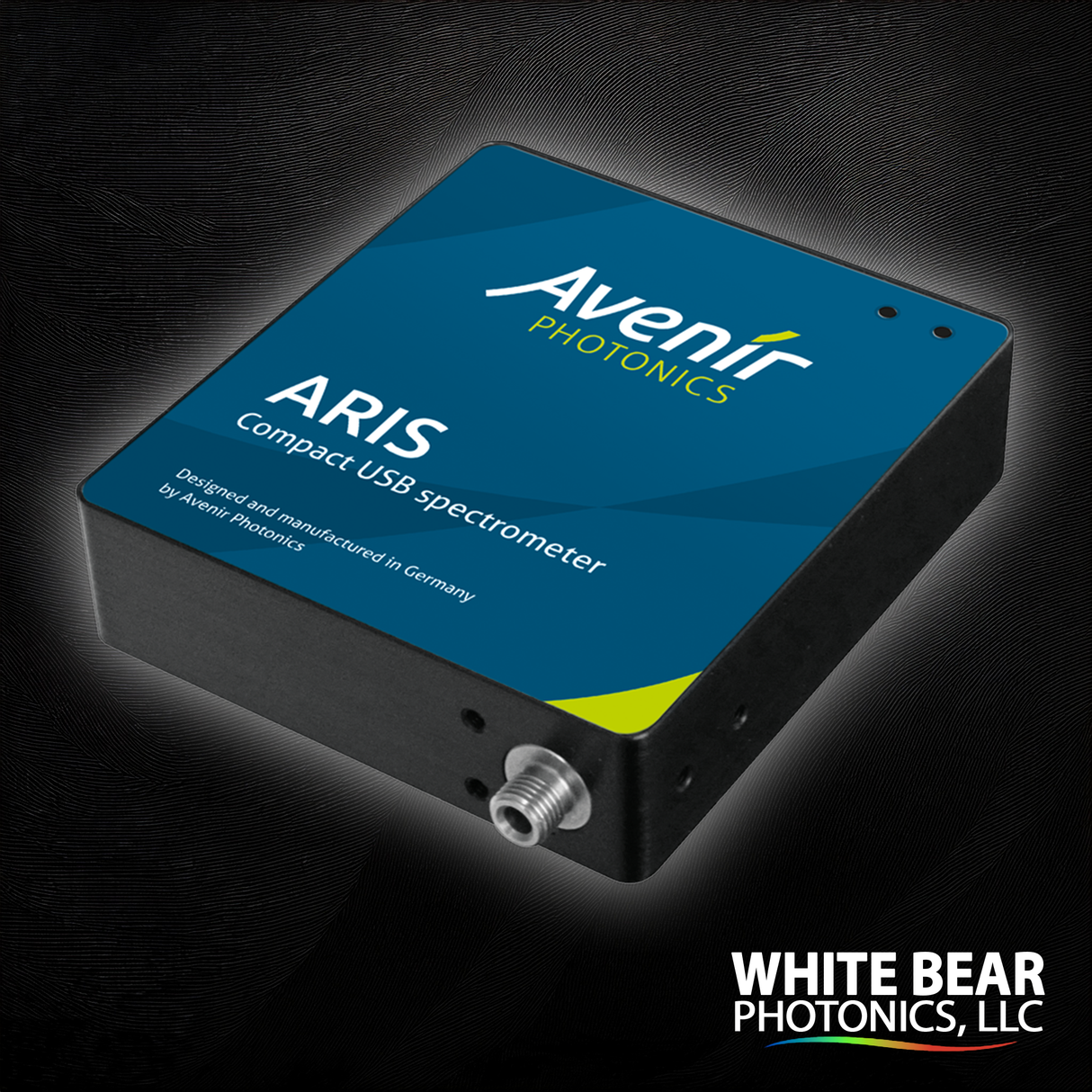

UV-VIS Compact Fiber Coupled Spectrometer

$2,25000 USD

Experience versatile analysis capabilities with the Aris fiber optic coupled spectrometer from Avenir. This professional-grade spectrometer covers a wide range of ultraviolet and visible wavelengths (180nm to 1000nm). Exceptionally well suited for scientific and industrial applications including absorption, reflection, and scattering measurements.

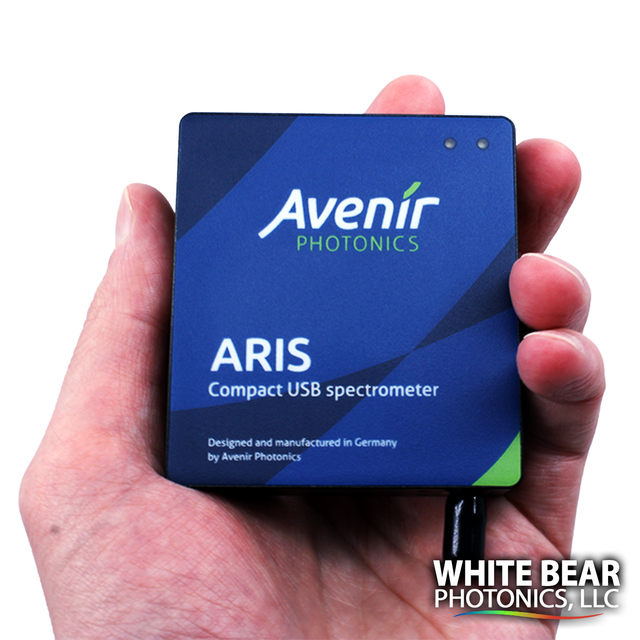

Its small, robust design makes it easy to integrate into portable or industrial systems. The Aris offers flexible options with user-friendly features—choose from several wavelength ranges and image sensors to fit your specific needs. Onboard controls, auto exposure, and included software ensure smooth operation wherever you work.

QUICK SHIP ITEM - FREE UPS
Including Next Day
US Only, Where Available, Up to $75

Specifications
  • Key Features
    Excellent general purpose UV-VIS spectrometer, Wide wavelength coverage in UV-VIS , Light & compact form factor, Free collection software & development software, On-board auto-exposure
  • Included Items
    Compact Spectrometer, Optical Breadboard Mount, USB Cable, Factory Calibration Report & Certification, Free Collection Software (Windows), Open Source Software Development Kit
  • Dimensions
    67.0 × 74.0 × 19.0 mm
  • Wavelength Range
    185 − 1000 nm
  • Integration Time
    54 μs − 35 min
  • Buffer Size
    63 spectra
  • Wavelength Resolution
    1.00 nm typ. , 1.20 nm max
  • Fastest Collection Rate (steady state)
    430 Hz (2.3 ms / scan)
  • Operational Temperature Range
    -40°F to 140°F (-20°C to 60°C)
  • Operational Humidity Range
    0 to 90%RH non-condensing
  • Digital Interfaces
    USB 2.0 (Full Speed), UART

What Makes This System Great

  • Versatility

    Fiber optic system allows remote measurements and configuring sampling to adapt to your specific test article

  • Rapid Availability

    This spectrometer is specially inventoried to get it to you FAST so you can troubleshoot your problems.

  • Scalability

    From feasibility to pilot and beyond this spectrometer has robust performance to be incorporated into scaled up solutions.

Fiber optic visible spectrometer system for measuring transmission / absorption of liquids

Transmission System

This versatile and expandable system is well suited for measuring the visible light transmission of liquids.

Potential Applications

  • Inspect color of molded parts
  • Monitor color & turbidity in real time
  • Track polymerization kinetics in-line and optimize lamp energy
  • Dye concentration control in textile dye-baths
  • Brewery Wort Clarity & Color (SRM/EBC) Control
  • Protein & DNA Quantification
  • UV-C Lamp dose mapping for disinfection chambers

Applications May Require Additional Components

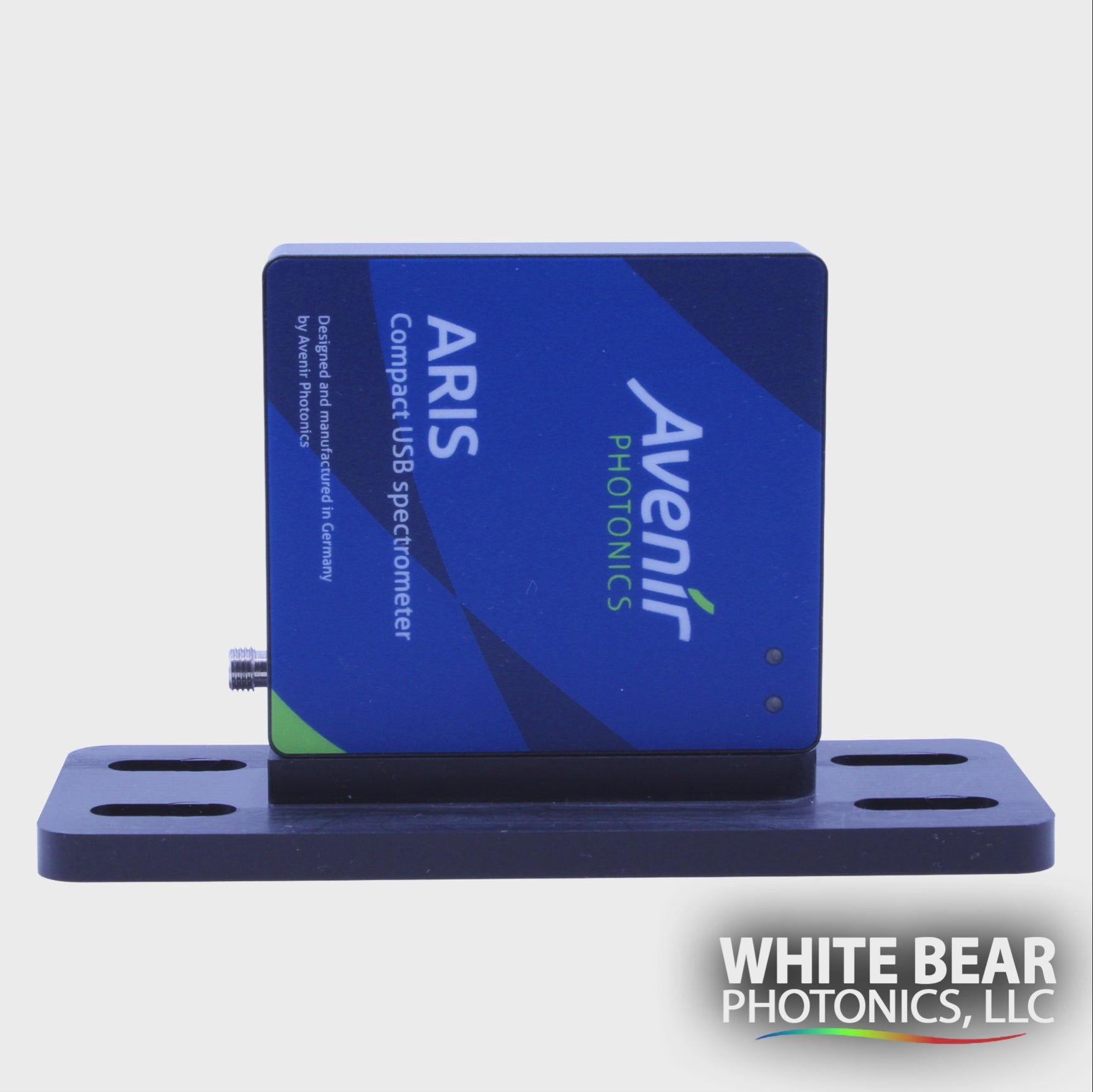

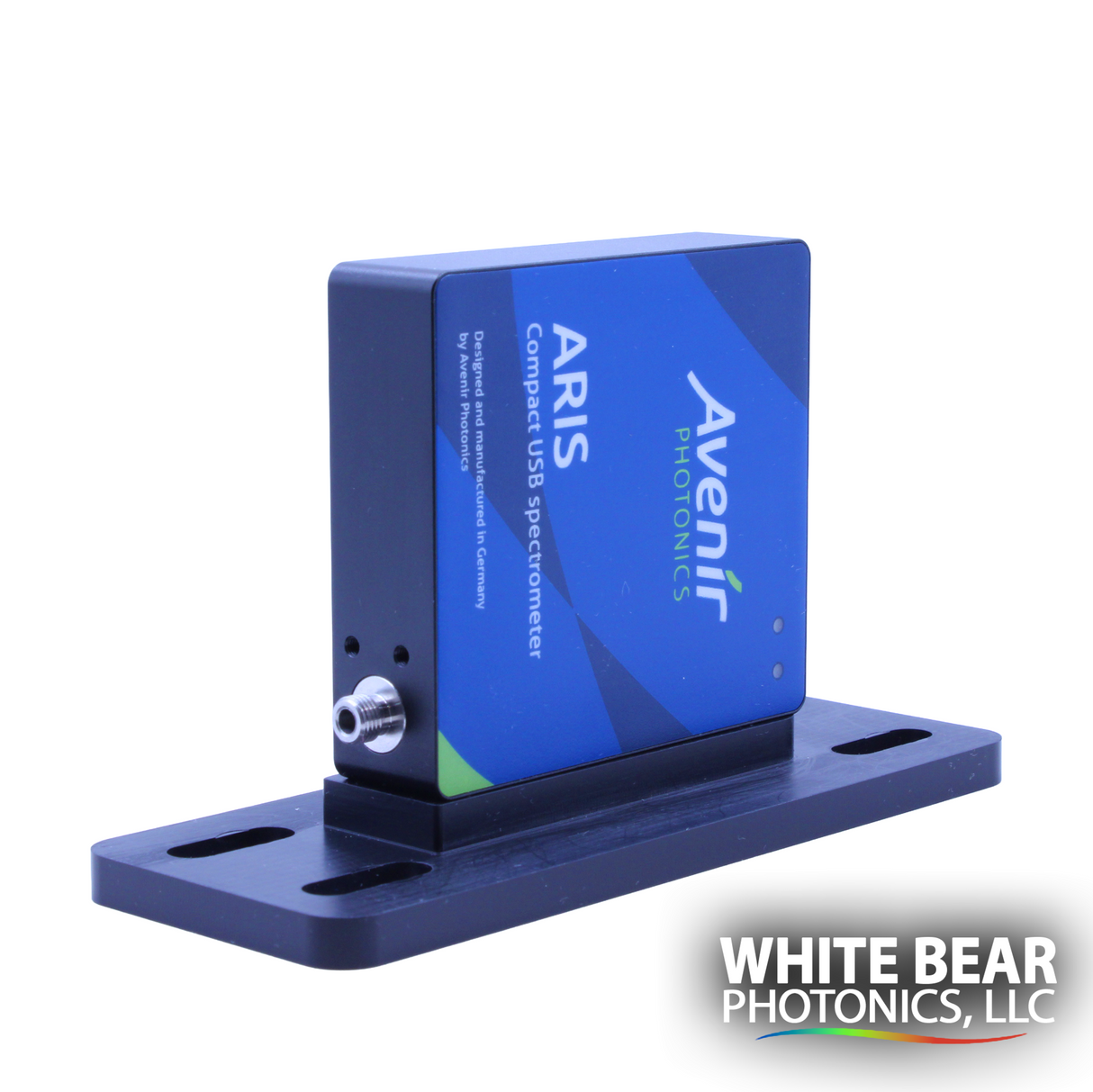

Compact UV-VIS Avenir Spectrometer conveniently mounted on optical breadboard.

Prototyping Ready

Includes mounting kit for 1" grid optical breadboard (1/4"- 20 screws) for easily configurable arrangements.
