Avenir Photonics  |  SKU: ARIS-185-1000-20-S11

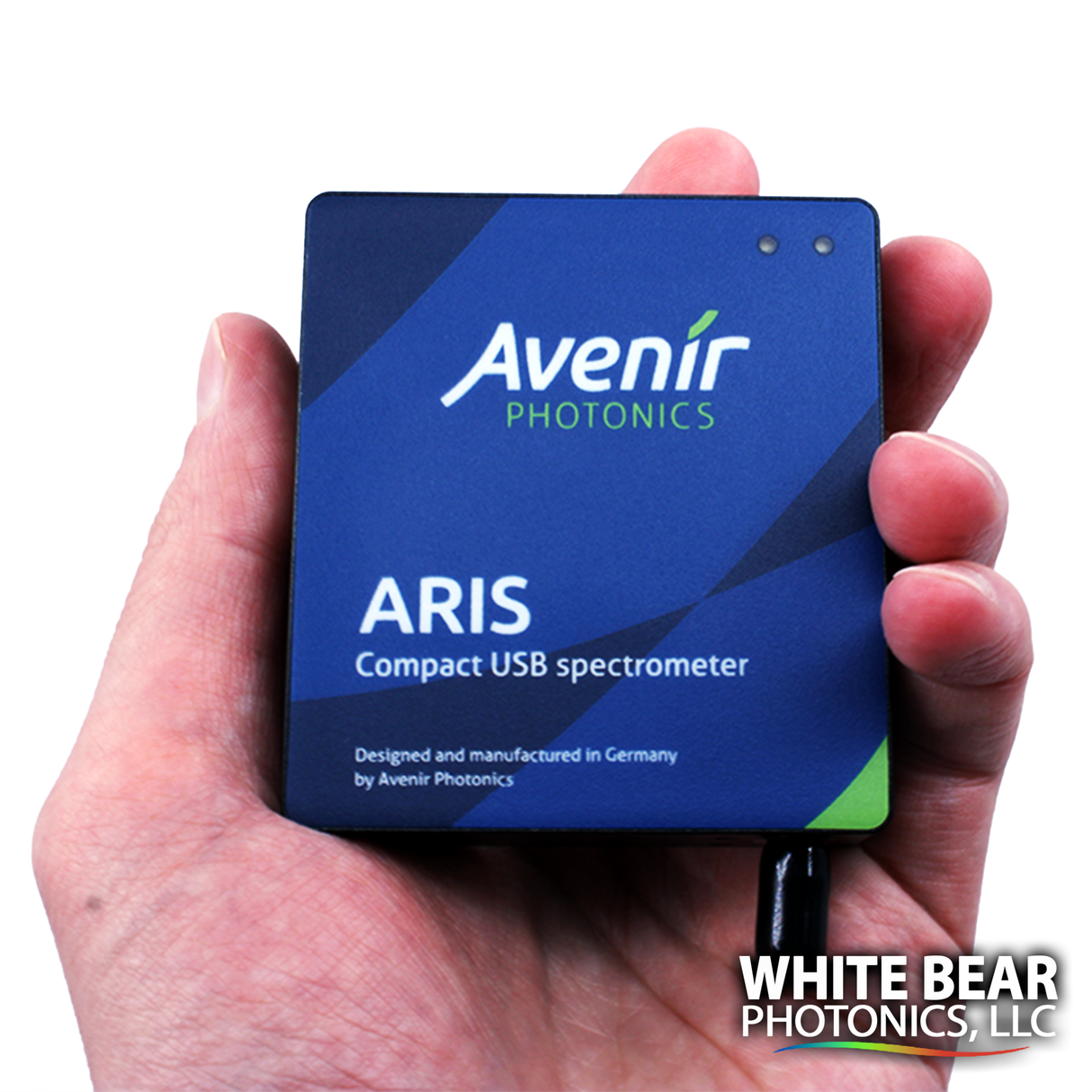

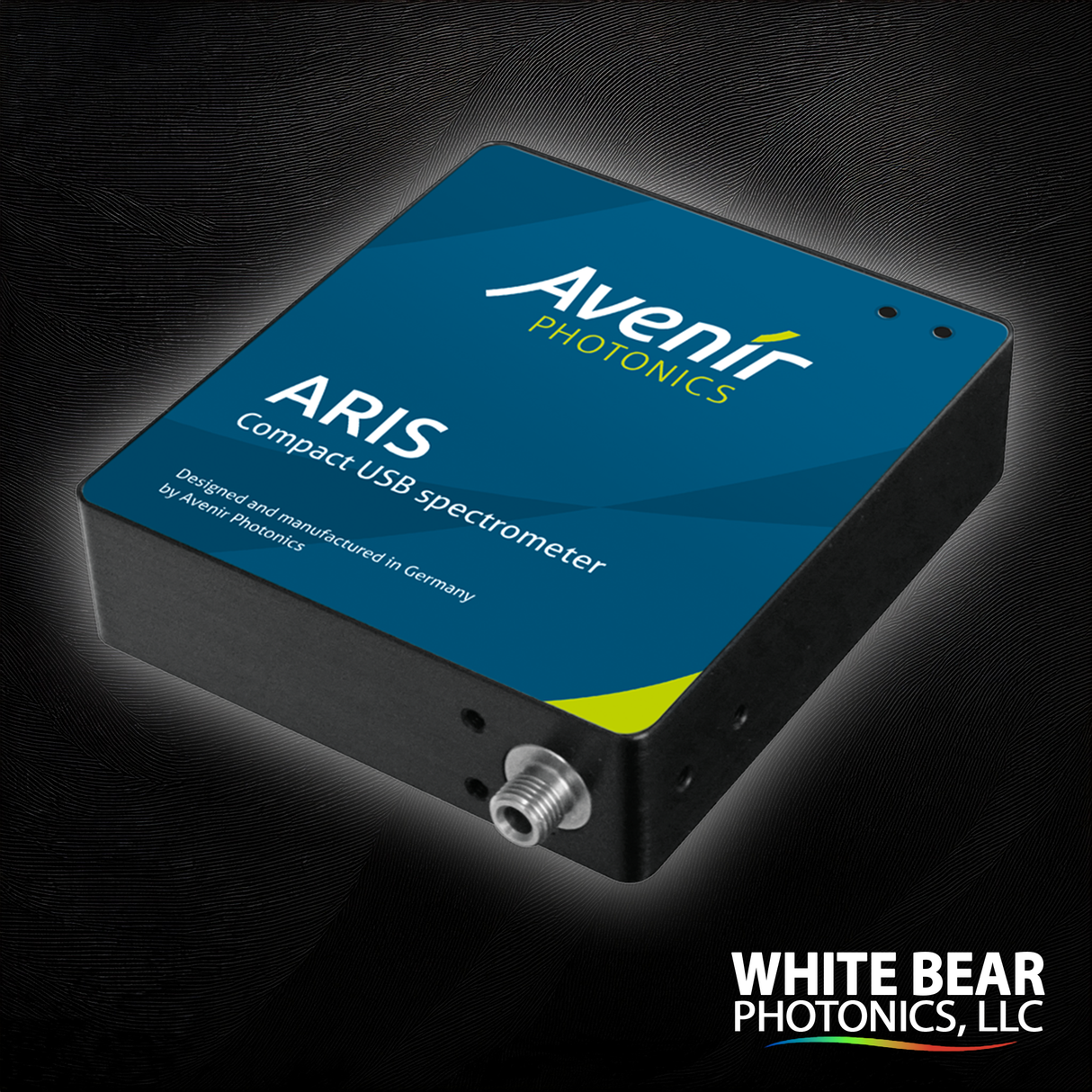

ARIS Wide UV-VIS-NIR Compact Spectrometer - Fast Shipping - Versatile

Experience versatile analysis capabilities with the ARIS Wide fiber optic coupled spectrometer from Avenir. This professional-grade spectrometer covers a wide range of ultraviolet, visible , and NIR wavelengths (185nm to 1000nm).  Well suited for scientific and industrial applications including emission, absorption, reflection, and scattering measurements.

The Aris delivers exceptional sensitivity in a  small, robust package that is easy to integrate into portable or industrial systems.

This configuration of the ARIS is our most popular model because of it's suitability for many applications.  If you need different configurations of this product you may be interested in our selection of made-to-order ARIS spectrometers.

$2,50000 USD
Shipping calculated at checkout.

QUICK SHIP ITEM - FREE UPS
Including Next Day
US Only, Where Available, Up to $75

Specifications
  • Key Features
    Excellent sensitivity from high-throughput design, Excellent general purpose UV-VIS spectrometer, Wide wavelength coverage in UV-VIS , Light & compact form factor, Free collection software & development software, On-board auto-exposure
  • Included Items
    Compact Spectrometer, Optical Breadboard Mount, USB Cable, Factory Calibration Report & Certification, Free Collection Software (Windows), Open Source Software Development Kit
  • Dimensions
    67.0 × 74.0 × 19.0 mm
  • Wavelength Range
    185 − 1000 nm
  • Integration Time
    54 μs − 35 min
  • Buffer Size
    63 spectra
  • Wavelength Resolution
    1.00 nm typ. , 1.20 nm max
  • Fastest Collection Rate (steady state)
    430 Hz (2.3 ms / scan)
  • Operational Temperature Range
    -40°F to 140°F (-20°C to 60°C)
  • Operational Humidity Range
    0 to 90%RH non-condensing
  • Digital Interfaces
    USB 2.0 (Full Speed), UART
  • Optical Connection
    SMA905 Input

What Makes This System Great

  • Versatility

    Fiber optic system allows remote measurements and configuring sampling to adapt to your specific test article

  • High Sensitivity

    The Aris delivers 2 to 4 times better sensitivity than similarly priced and configured spectrometers from other leading brands.

  • Rapid Availability

    This spectrometer is specially inventoried to get it to you FAST so you can troubleshoot your problems.

  • Scalability

    From feasibility to pilot and beyond this spectrometer has robust performance to be incorporated into scaled up solutions.

Fiber optic visible spectrometer system for measuring transmission / absorption of liquids

Example Transmission System

This is an example of how the Aris Spectrometer can be incorporated with other parts into a versatile and expandable system is well suited for measuring the visible light transmission of liquids.

Potential Applications

  • Inspect color of molded parts
  • Monitor color & turbidity in real time
  • Track polymerization kinetics in-line and optimize lamp energy
  • Dye concentration control in textile dye-baths
  • Brewery Wort Clarity & Color (SRM/EBC) Control
  • Protein & DNA Quantification

Applications May Require Additional Components

Compact UV-VIS Avenir Spectrometer conveniently mounted on optical breadboard.

Prototyping Ready

Includes mounting kit for 1" grid optical breadboard (1/4"- 20 screws) for easily configurable arrangements.
