Avenir Photonics  |  SKU: SIENA-900-2100-20

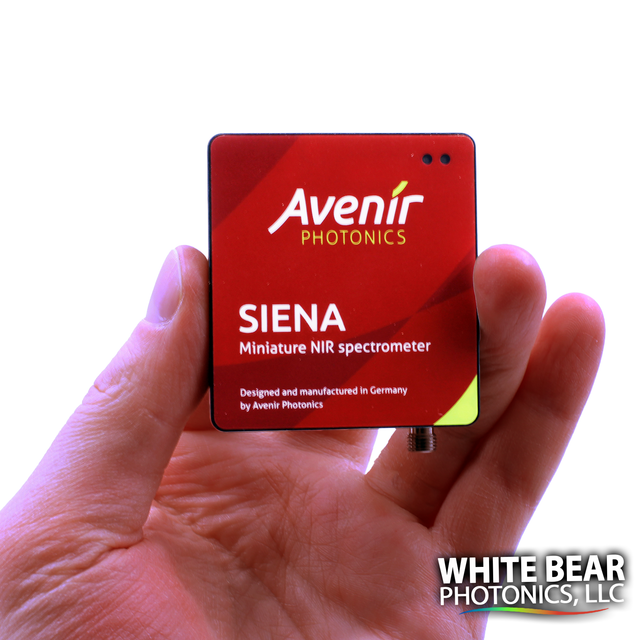

NIR Compact Fiber Coupled Spectrometer

$7,50000 USD

Experience versatile NIR analysis capabilities with the Siena fiber optic coupled spectrometer from Avenir. This professional-grade spectrometer covers a wide range of NIR wavelengths (900 nm to 2500nm). Exceptionally well suited for scientific and industrial applications including absorption, reflection, and scattering measurements.


Specifications

  • Key Features
    Excellent general purpose NIR spectrometer, Couples well with PCA & PCR statistical methods, Wide wavelength coverage, Light & compact form factor, Free collection software & development software, On-board auto-exposure
  • Included Items
    Compact Spectrometer, Optical Breadboard Mount, USB Cable, Factory Calibration Report & Certification, Free Collection Software (Windows), Open Source Software Development Kit
  • Dimensions
    52.0 × 57.0 × 17.0 mm
  • Wavelength Range
    900 − 2100 nm
  • Integration Time
    4 μs − 10 min
  • Buffer Size
    426 spectra
  • Wavelength Resolution
    13 nm typ. , 16 nm max
  • Fastest Collection Rate (steady state)
    2,900 Hz (0.34 ms / scan)
  • Operational Temperature Range
    -40°F to 158°F (-20°C to 70°C)
  • Operational Humidity Range
    0 to 90%RH non-condensing
  • Digital Interfaces
    USB 2.0 (Full Speed), UART

What Makes This System Great

  • Versatility

    Fiber optic system allows remote measurements and configuring sampling to adapt to your specific test article

  • Scalability

    From feasibility to pilot and beyond this spectrometer has robust performance to be incorporated into scaled up solutions.

Fiber optic visible spectrometer system for measuring transmission / absorption of liquids

Transmission System

This versatile and expandable system is well suited for measuring the visible light transmission of liquids.

Potential Applications

  • Inline moisture & protein monitoring in grain-processing or food-drying lines—mount the tiny USB-powered module directly on conveyers for real-time QA.
  • Polymer and resin cure tracking on production extruders—embed the spectrometer in a closed-loop control system to follow chemical conversion and adjust oven residence time instantly.
  • Blend uniformity monitoring in pharma mixers—mount the sensor on a viewport and stream spectra to verify API homogeneity long before compression.
  • Real-time lubricant degradation analysis for predictive maintenance—track oxidation and additive depletion in hydraulic oils on rotating machinery.• Rapid resin identification in plastics recycling—sort PET, HDPE, PP, and nylon on high-speed conveyor belts by their NIR fingerprints.
  • Inline moisture & lignin assessment during wood-pellet production—optimize dryer energy use and meet fuel-grade specs.
  • On-farm forage quality testing—attach to a handheld probe to estimate protein, fiber, and dry matter in silage within seconds.
  • Sugar-cane or beet processing control—measure Brix and sucrose purity continuously to maximize extraction efficiency.

Applications May Require Additional Components

Compact UV-VIS Avenir Spectrometer conveniently mounted on optical breadboard.

Prototyping Ready

Includes mounting kit for 1" grid optical breadboard (1/4"- 20 screws) for easily configurable arrangements.
