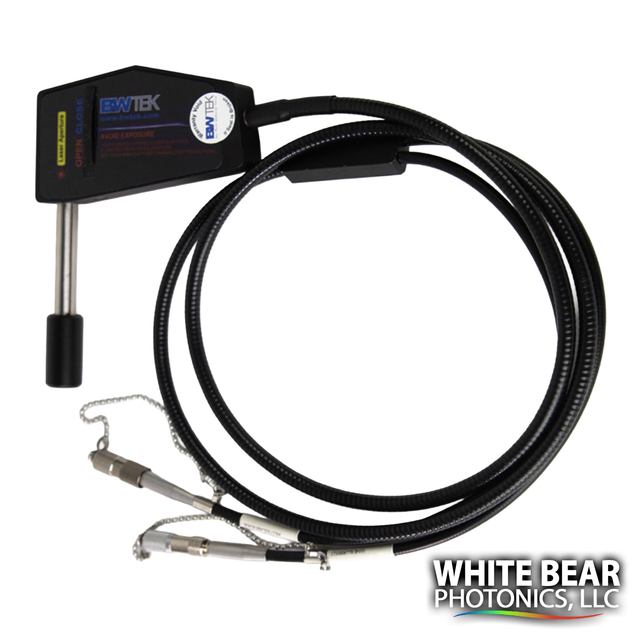

Laboratory-Grade Raman 785 nm Fiber Optic Probe
Laboratory-Grade Raman 785 nm Fiber Optic Probe is backordered and will ship as soon as it is back in stock.
This utilitarian OEM Raman fiber optic probe for 785 nm systems for direct sampling or interfacing with other sampling solutions.
It features a compact, removable 304 stainless steel shaft with integrated optical filtering and built-in shutter for safe and accurate measurements. It integrates with a several compatible adapters allowing for micro-sampling, cuvette, and other measurements. For immersion applications alternative probe heads are required.
Raman Cutoff: 65 cm-1
Working distance: 5.5 mm
Spot Size: 85 μm
Excitation fiber: 105 µm core; FC/PC terminated
Collection fiber: 200 μm core, SMA 905
This product is not a fully configured Raman system and requires other components sold by White Bear Photonics (i.e. spectrometer and laser excitation) to configure an OEM Raman system. Please follow all applicable safety procedures when using this system.
Laboratory-Grade Raman 785 nm Fiber Optic Probe
Specifications
Specifications
-
Key FeaturesIntended for 785 nm Excitation, Raman Cutoff: 65 cm-1, Working distance: 5.5 mm, Spot Size: 85 μm, OD6 Rejection, Integrated Shutter
-
Optical ConnectionsExcitation fiber: 105 µm core; FC/PC terminated, Collection fiber: 200 μm core, SMA 905
