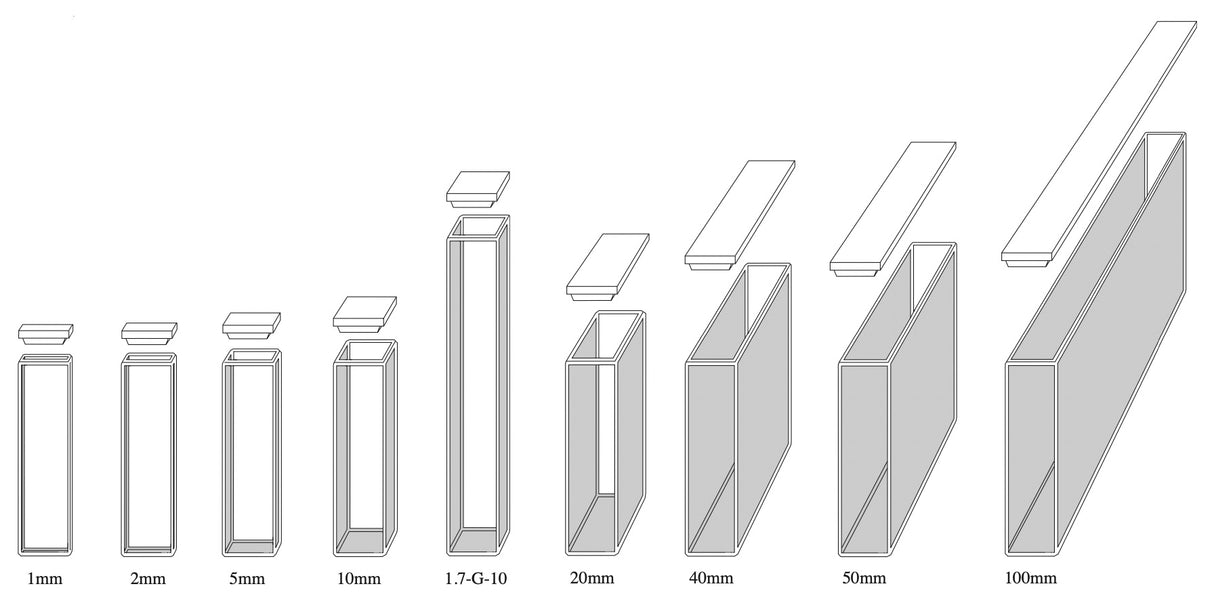

1-I Series Standard Rectangular Infrasil Cuvettes, 1-100mm

StarnaSKU: 1-I-1

SKU: 1-I-1
Price:
Sale price$153.41

Description

The Starna 1-I series are Infrasil cuvettes that are usable from 220-3800 nm.  Infrasil is often used for Infrared applications since the range can be extended to 3800 nm.  The most common size (universal for all spectrometers) is the 1-I-10 with a 10 mm path length.  Short path lengths like the 1-I-1 are often used when dilution is not an option.  Long path length such as 1-I-100 are often used in dilute applications.  The short path length cuvettes require the SPA5, SPA2, or SPA 1 spacer to fit properly in a standard cuvette holder (10 mm).

These cells have an exterior height of 45mm, two clear windows and an open top. The walls of the cell and the bottom are smooth on the inside. On the outside, the light path windows are clear while the adjacent windows and the bottom are frosted or grey. Typically, windows are 1.25mm thick and each cell in this range is supplied with a PTFE cover.

Starna 1-I Cuvettes / Window Material: Infrasil Quartz, Usable Range 220-3800nm

Starna Catalog No.

Path Length (mm)

Exterior Width (mm)

Exterior Length (mm)

Exterior Height (mm)

Interior Width (mm)

Interior Length (mm)

Nominal Volume (ml)

Number Polished Windows

1-I-1

1

12.5

3.5

45

10

1

0.400

2

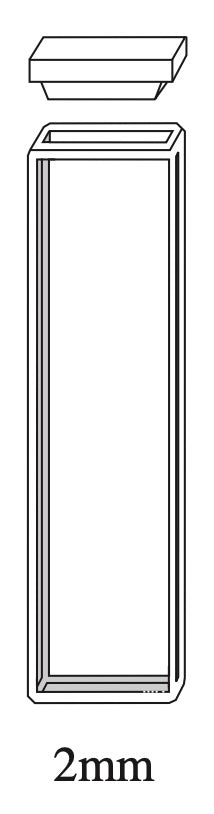

1-I-2

2

12.5

4.5

45

10

2

0.700

2

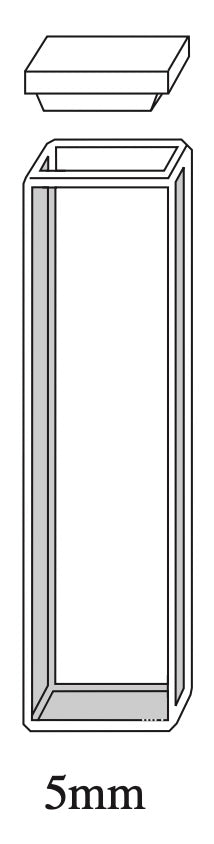

1-I-5

5

12.5

7.5

45

10

5

1.700

2

1-I-10

10

12.5

12.5

45

10

10

3.500

2

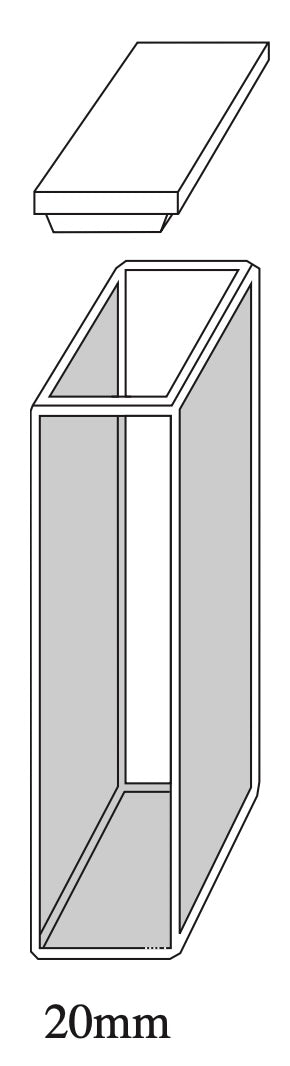

1-I-20

20

12.5

22.5

45

10

20

7.000

2

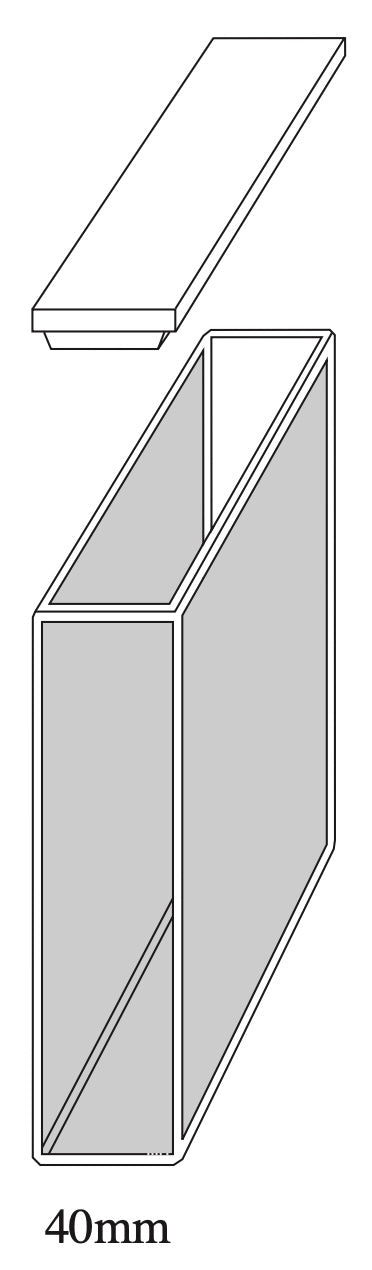

1-I-40

40

12.5

42.5

45

10

40

14.000

2

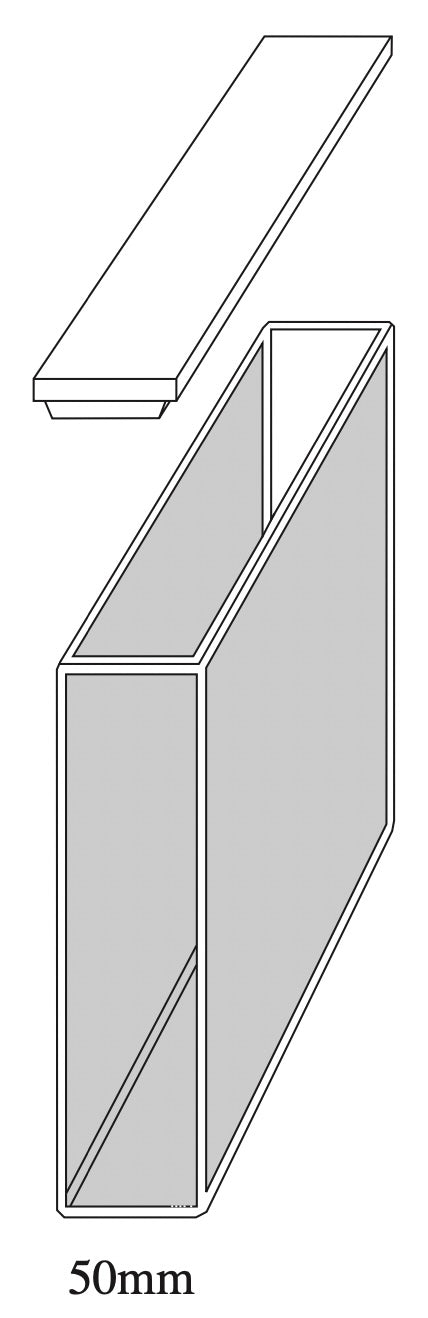

1-I-50

50

12.5

52.5

45

9.5

50

17.500

2

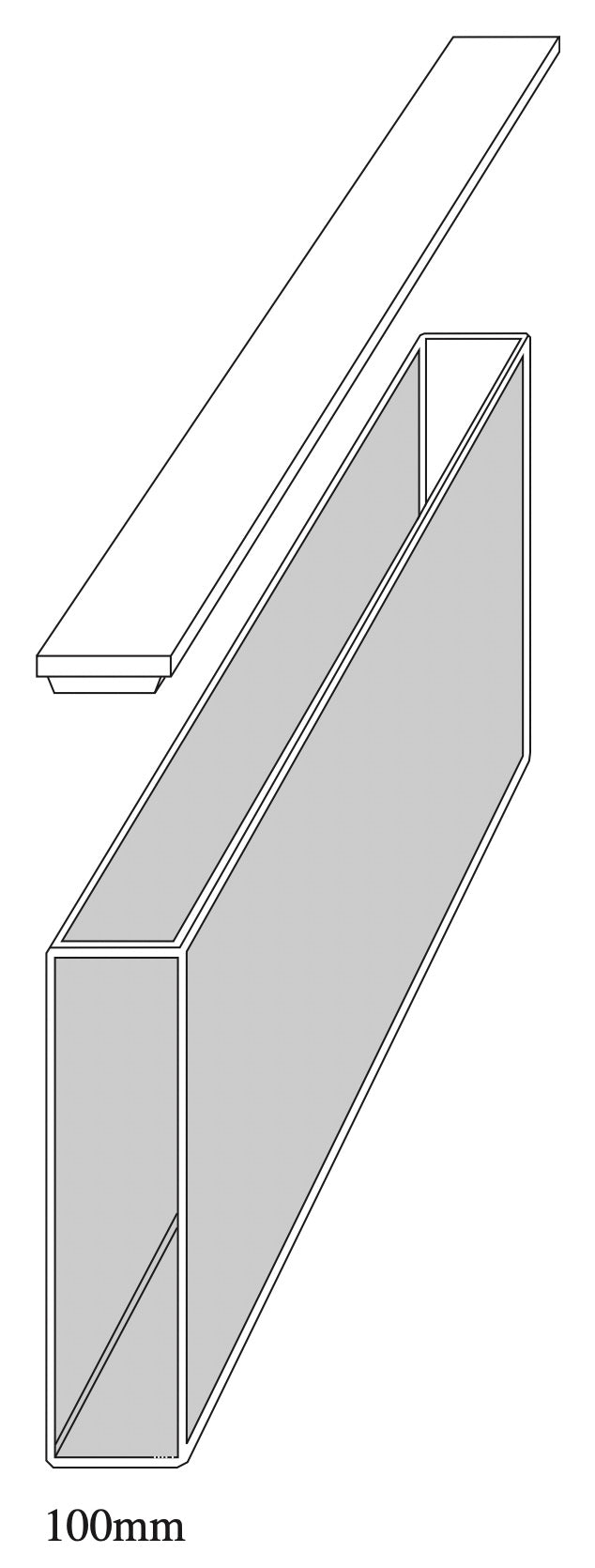

1-I-100

100

12.5

102.5

45

9

100

35.000

2
