Description

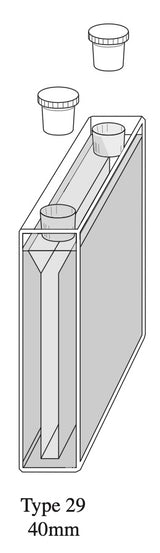

Similar in all respects to the Type 9 Semi Micro cells, with the exception that these cells are supplied with a PTFE stopper, or stoppers as pictured, to fit in a ground fitting to reduce evaporation of volatile samples (The Type 29B comes with stoppers even though the stoppers are not pictured). The Type 29 and Type 29B cells have an external height of 48 mm plus stopper.
Smaller sample volumes can be achieved by using cell Type 29/9 or 29B9 with a 9mm instead of a 3mm thick base.
Note: Cells with a 9mm base are not suitable for an instrument with an 8.5mm 'Z' dimension.
5mm pathlength cells should be used with the Starna SPA-5 cell spacer.
Starna 29-Q Series Cuvettes / Window Material: Quartz, 170-2700nm
|
Starna Catalog No |
Path Length (mm) |
Exterior Width (mm) |
Exterior Length (mm) |
Exterior Height (mm) |
Interior Width (mm) |
Interior Length (mm) |
Base Thickness (mm) |
Nominal Volume (ml) |
Number Polished Windows |
|
29-Q-5 |
5 |
12.5 |
7.5 |
48 |
4 |
5 |
2.5 |
0.7 |
2 |
|
29-Q-10 |
10 |
12.5 |
12.5 |
48 |
4 |
10 |
2.5 |
1.4 |
2 |
|
29/9-Q-10 |
10 |
12.5 |
12.5 |
48 |
4 |
10 |
9 |
1.16 |
2 |
|
29-Q-20 |
20 |
12.5 |
22.5 |
48 |
4 |
20 |
2.5 |
2.8 |
2 |
|
29-Q-40 |
40 |
12.5 |
42.5 |
48 |
4 |
40 |
2.5 |
5.6 |
2 |
|
29-Q-50 |
50 |
12.5 |
52.5 |
48 |
4 |
50 |
2.5 |
7 |
2 |
