3-3, 3-4, 3-5 Series Square Micro Open Top Fluorometer Cells, Special Optical Glass & Spectrosil Quartz

StarnaSKU: 3-3.30-SOG-3

SKU: 3-3.30-SOG-3
Price:
Sale price$119.18

Description

This range of Micro Fluorometer cells has been specifically designed by Starna for use with the FCA range of adaptors. The adaptor locates the square cross section cell accurately in the center of the instrument cell compartment. Therefore, for a given path length, the cell is optimized for minimum volume and maximum sensitivity. All four windows and the base of the cells are polished and are available with either an open top or with a PTFE stopper sup­plied with the type 23­ cells.

The FCA adaptors have exterior dimensions of a standard fluorometer cell (12.5mm x 12.5mm) and interior dimensions to accommodate the square micro fluorometer cells listed. Apertures are machined into the adaptor wall to allow for transmission of the excitation and emission energy at either 8.5 or 15mm 'Z' dimension. The aluminum adaptors are black anodized to eliminate stray light. The correct adaptor for a particular cell can be identified from the listing below.

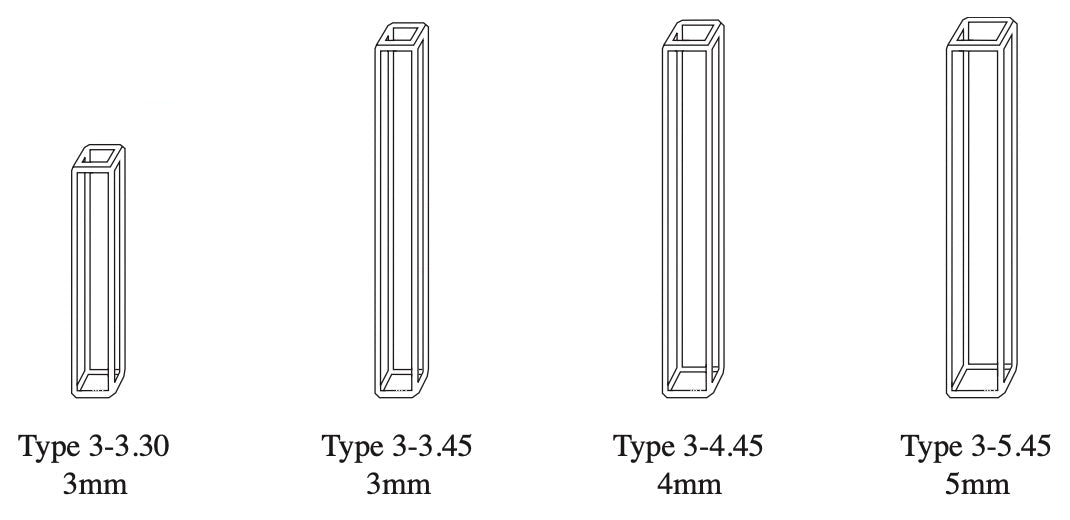

Starna 3-3, 3-4, 3-5 Series Square Micro Fluorometer Cells / Window Material: Special Optical Glass, Usable Range: 320-2500nm

Starna

Catalog

No

Path

Length

(mm)

Ext

Width

(mm)

Ext

Length

(mm)

Ext

Height

(mm)

Int

Width

(mm)

Int

Length

(mm)

Adapter

Nominal

Volume

(ml)

Number

Polished

Windows

3-3.30-SOG-3

3

5.5

5.5

30

3

3

FCA3.30

0.225

5

3-3.45-SOG-3

3

5.5

5.5

45

3

3

FCA3

0.320

5

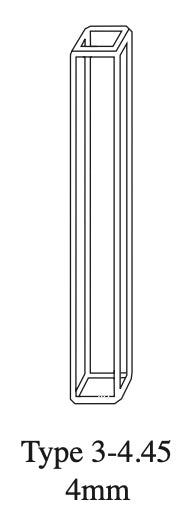

3-4.45-SOG-4

4

6.5

6.5

45

4

4

FCA4

0.560

5

3-5.45-SOG-5

5

7.5

7.5

45

5

5

FCA5

0.880

5



Starna 3-3, 3-4, 3-5 Series Square Micro Fluorometer Cells / Window Material: Spectrosil Quartz, Usable Range: 170-2700nm

Starna

Catalog

No

Path

Length

(mm)

Ext

Width

(mm)

Ext

Length

(mm)

Ext

Height

(mm)

Int

Width

(mm)

Int

Length

(mm)

Adapter

Nominal

Volume

(ml)

Number

Polished

Windows

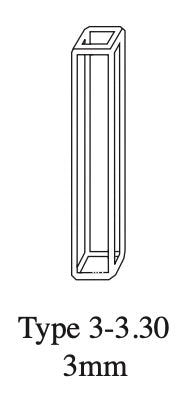

3-3.30-Q-3

3

5.5

5.5

30

3

3

FCA3.30

0.225

5

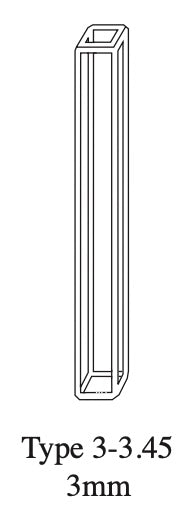

3-3.45-Q-3

3

5.5

5.5

45

3

3

FCA3

0.320

5

3-4.45-Q-4

4

6.5

6.5

45

4

4

FCA4

0.560

5

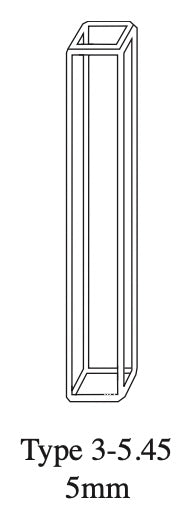

3-5.45-Q-5

5

7.5

7.5

45

5

5

FCA5

0.875

5
