FCA Series Adaptors for Square Micro Fluorometer Cells

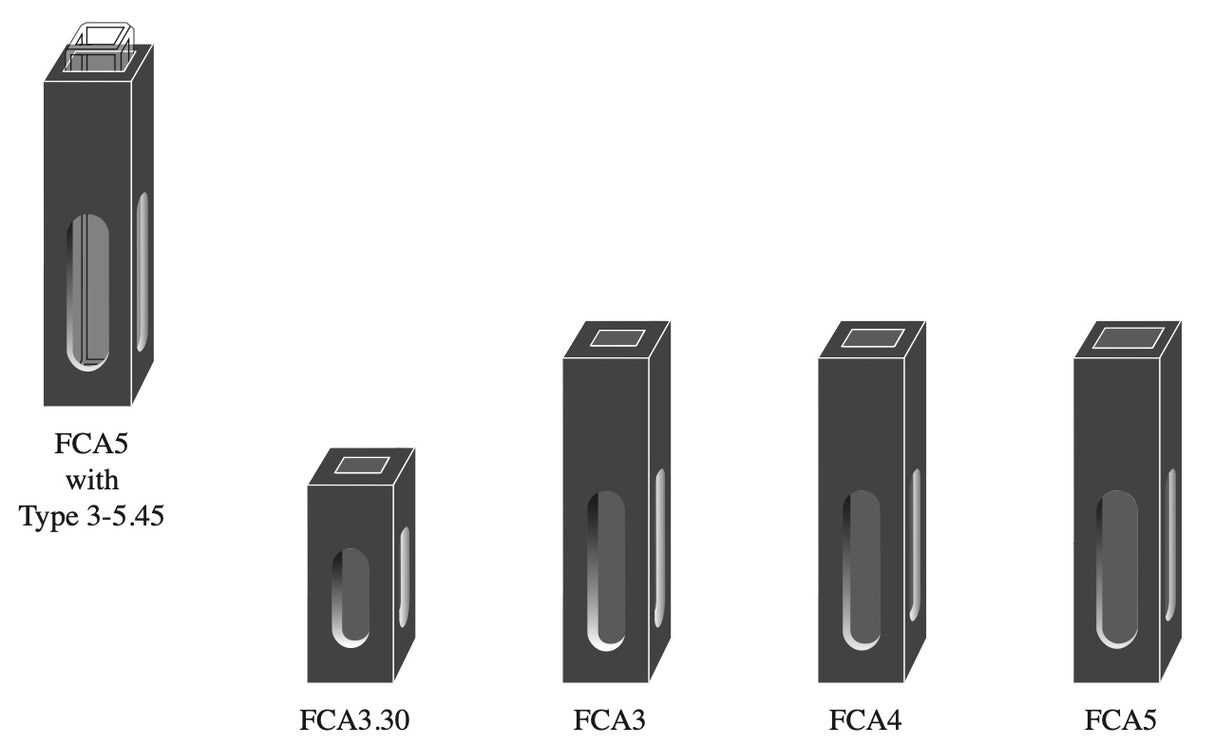

The FCA adaptors have exterior dimensions of a standard fluorometer cell (12.5mm x 12.5mm) and interior dimen sions to accommodate the square micro fluorometer cells listed. Apertures are machined into the adaptor wall to allow for transmission of the excitation and emission energy for instrument 'Z' dimensions of 8.5, 15 or 20mm. The aluminum adaptors are black anodized to eliminate stray light. The correct adaptor for a particular cell can be identified from the listing below.
|
|
Width mm |
Height mm |
Number of Openings |
|

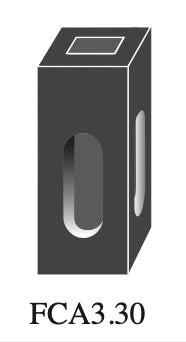

FCA3.30 |
2.5 |
11 |
4 |
|

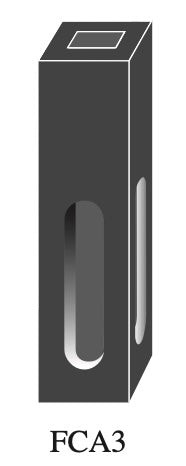

FCA3 |
2.5 |
21 |
4 |
|

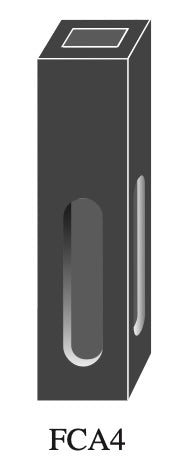

FCA4 |
3.5 |
21 |
4 |
|

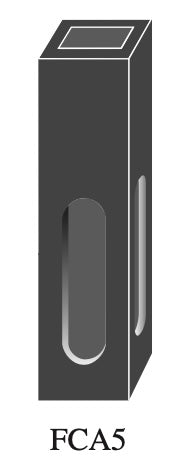

FCA5 |
4.5 |
21 |
4 |
From the bottom of the adaptor to the bottom of the opening is 5.5 mm for all adaptors.
FCA Series Adaptors for Square Micro Fluorometer Cells - FCA3 is backordered and will ship as soon as it is back in stock.
