32-I & 34-I Infrasil Quartz Cylindrical Cells with Stopper, 10-100mm
Type 32 and 34 cells range from path lengths of 10mm to 100mm with an internal diameter of 19mm. Other diameters available from 5mm ID to 30mm ID on request. Please note when filling cylindrical cells, to avoid damage to the windows, do not fill cell to the top. Leave an air gap otherwise the windows will be broken by the hydraulic pressure of the stopper being inserted. PTFE stoppers are supplied with each cell as pictured.
An optional adaptor for IR instruments is available: Starna CH-34/100 Adaptor for IR Instruments.
Starna 32-I & 34-I Cylindrical Cells with Stopper / Window material: Infrasil Quartz, 220-3800nm
|
Starna Catalog No |
Path Length (mm) |
Ext Width (mm) |
Ext Length (mm) |
Interior Width (mm) |
Interior Length (mm) |
Nominal Volume (ml) |
Number of Stoppers |
Number Polished Windows |
|

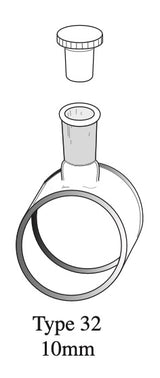

32-I-10 |
10 |
22 |
12.5 |
19 |
10 |
2.800 |
1 |
2 |
|

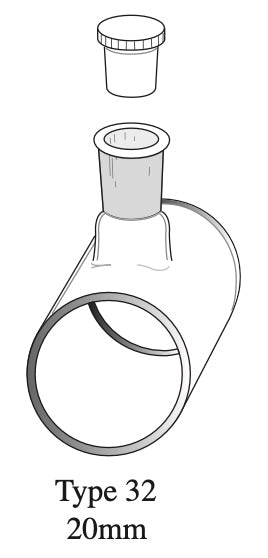

32-I-20 |
20 |
22 |
22.5 |
19 |
20 |
5.600 |
1 |
2 |
|

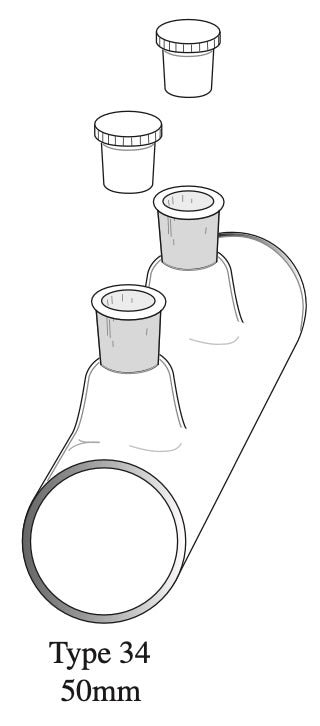

34-I-50 |
50 |
22 |
52.5 |
19 |
50 |
14.100 |
2 |
2 |
|

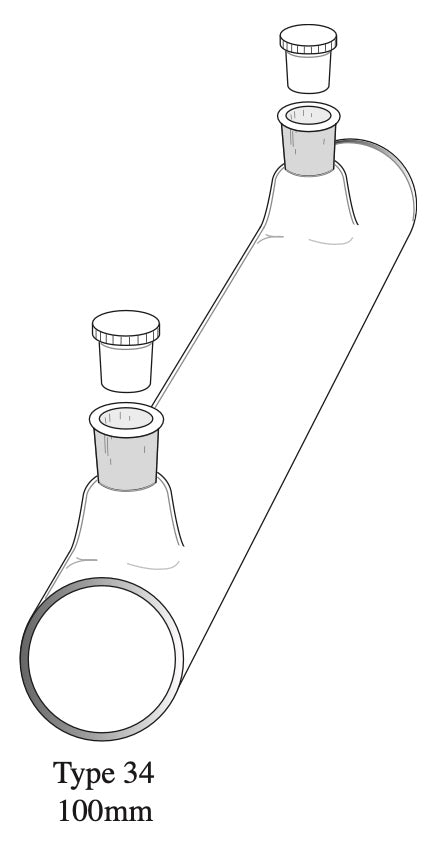

34-I-100 |
100 |
22 |
102.5 |
19 |
100 |
28.200 |
2 |
2 |
32-I & 34-I Infrasil Quartz Cylindrical Cells with Stopper, 10-100mm - 32-I-10 is backordered and will ship as soon as it is back in stock.
