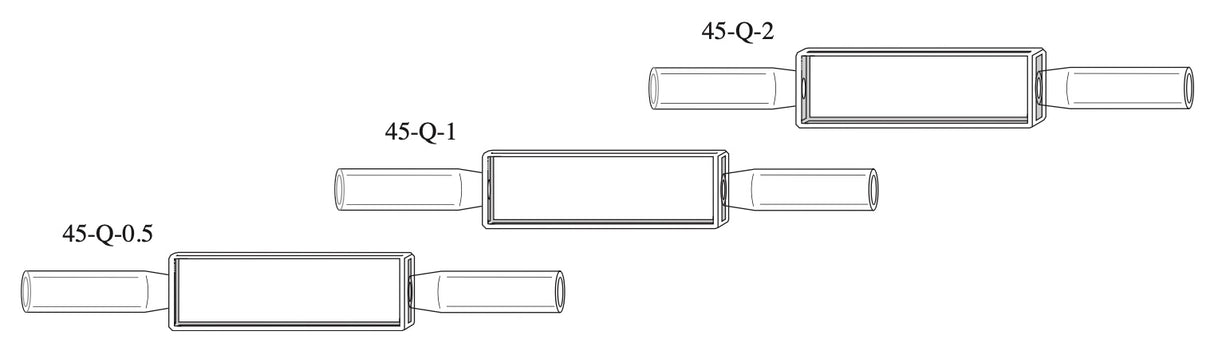

45-Q Series In-Line or Microscope Analysis Quartz Flow Cells, 0.5-2mm
The type 45 flow cells provide a large surface to view materials as they flow through the cham ber. The thin dimension (3 to 4.5mm external thickness) makes this cell ideal for use with most microscopes.
The inlet/outlet tube dimensions are 25mm long: Up to 2mm pathlength: 2mm ID, 4mm OD 5mm pathlength: 5mm ID, 7mm OD
Starna 45-Q Series In-Line or Microscope Flow Cells / Window material: Quartz, 170 to 2700 nm
|
Starna Catalog No |
Path Length (mm) |
Ext Width (mm) |
Ext Length (mm) |
Ext Height (mm) |
Int Width (mm) |
Int Length (mm) |
Nominal Volume (ml) |
Number Polished Windows |
|

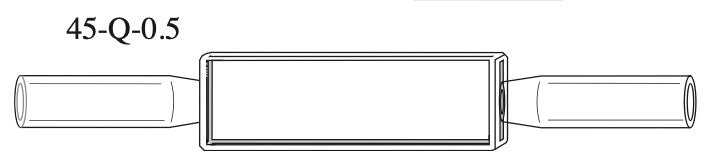

45-Q-0.5 |
0.5 |
12.5 |
3.0 |
40+tubes |
10 |
0.5 |
0.225 |
2 |
|
45-Q-1 |
1 |
12.5 |
3.5 |
40+tubes |
10 |
1 |
0.450 |
2 |
|

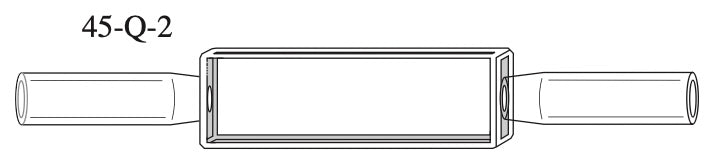

45-Q-2 |
2 |
12.5 |
4.5 |
40+tubes |
10 |
2 |
0.900 |
2 |
45-Q Series In-Line or Microscope Analysis Quartz Flow Cells, 0.5-2mm - 45-Q-0.5 is backordered and will ship as soon as it is back in stock.
