48-Q & 49-Q Series Short Path Length Rectangular Quartz Flow Cells, 0.1-5mm

StarnaSKU: 48-Q-0.1

SKU: 48-Q-0.1
Price:
Sale price$305.66

Description

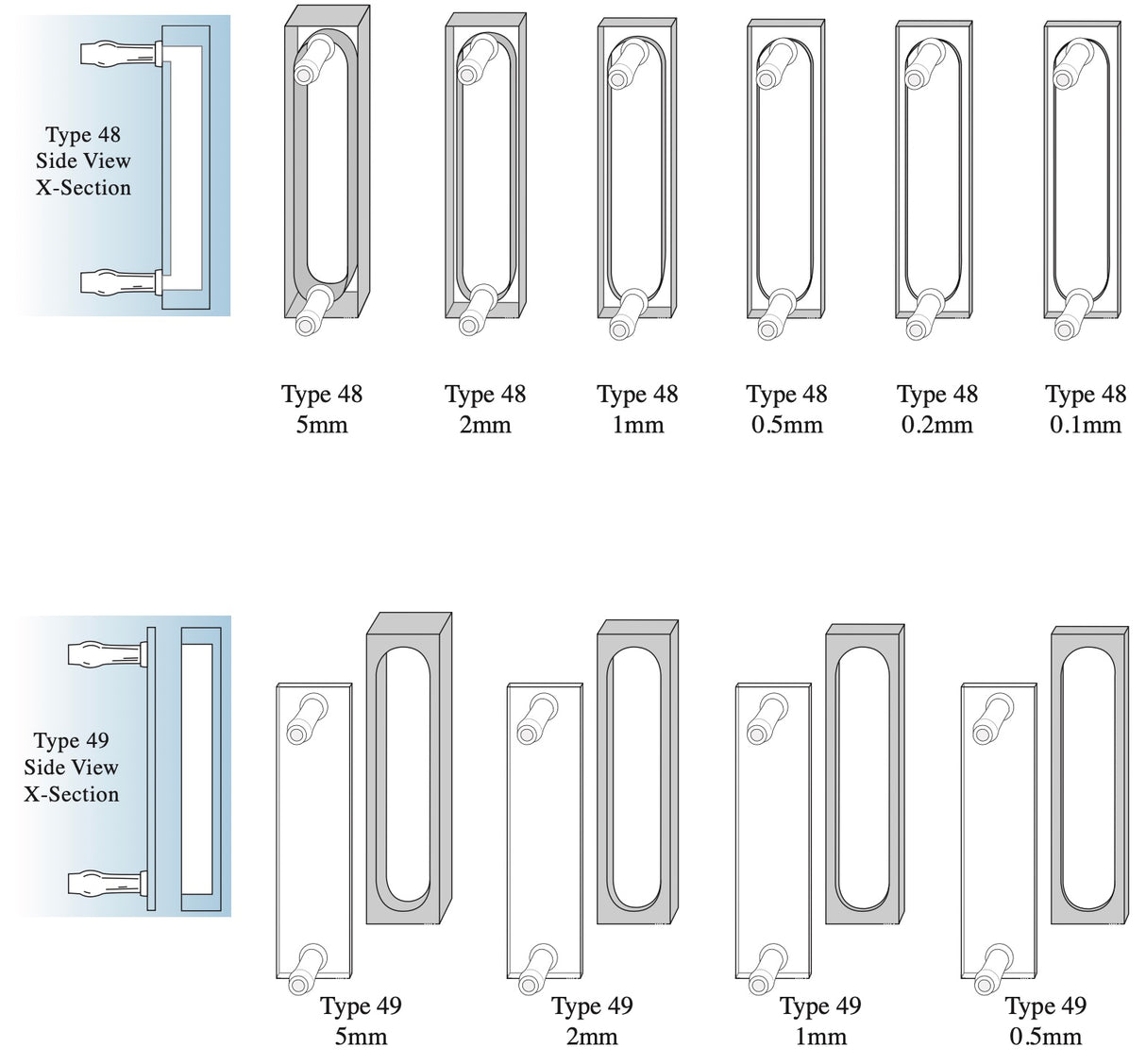

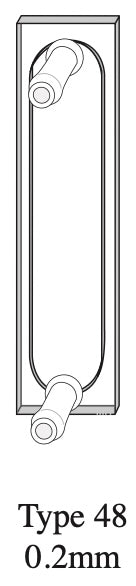

Cell Types 48 and 49 are designed for use in various applications where a flow cell with a small path length and a large window surface area is needed. Flow tubes are fused to the front window of the cell, in the case of Type 49, the removable window. The cells will fit any spectrophotome­ ter which can accommodate a normal cell with a 40mm path length. This allows introduction of the inlet/outlet tubes parallel to the light beam. The Type 48 is a fully fused cell.

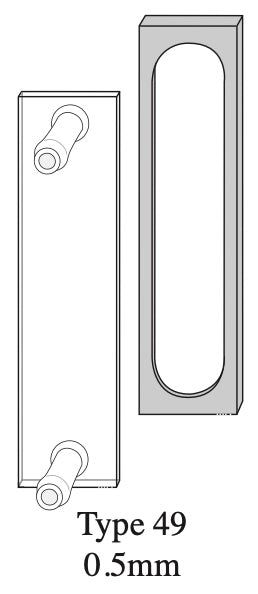

The demountable cells Type 49, with remov­able window, must be held together when being used. Cell holder Type CH­2049 is designed for this purpose. These cells may be taken apart for easy cleaning. This cell design is especially useful for opaque or viscose solutions. The cell consists of one fully fused component combining one window and the sides of the cell which forms the path length. The other window is separate and the cell can therefore be taken apart for cleaning. The cell wall and the removable window are polished so flat that the two will form a seal when placed in contact. Viscous and aque­ ous samples will allow the best seal to be formed, organic solvents will creep into the seal area for a less reliable seal.

Flow Cell Tubulation Dimensions:

OD ID  Length
4.2mm 2.0mm 16mm


Starna 48-Q & 49-Q Series Rectangular Short Path Length Flow Cells / Window material: Quartz, 170 to 2700 nm

Starna

Catalog

No

Path

Length

(mm)

Ext

Width

(mm)

Ext

Length

(mm)

Ext

Height

(mm)

Int

Width

(mm)

Int

Length

(mm)

Int

Height

(mm)

"Z" Dim-

ension

(mm)

Nominal

Volume

(ml)

Number

Polished

Windows

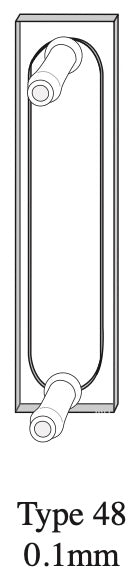

48-Q-0.1

0.1

12.5

2.6

45

8

0.1

38

15 or 20

0.030

2

48-Q-0.2

0.2

12.5

2.7

45

8

0.2

38

15 or 20

0.060

2

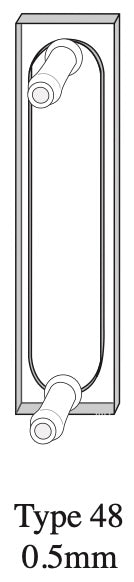

48-Q-0.5

0.5

12.5

3

45

8

0.5

38

15 or 20

0.150

2

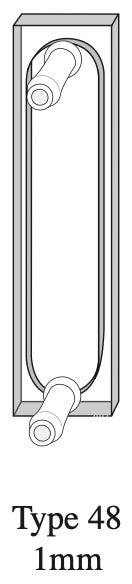

48-Q-1

1

12.5

3.5

45

8

1

38

15 or 20

0.300

2

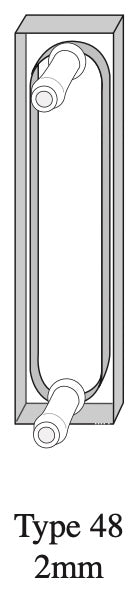

48-Q-2

2

12.5

4.5

45

8

2

38

15 or 20

0.600

2

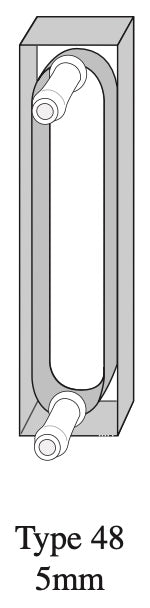

48-Q-5

5

12.5

7.5

45

8

5

38

15 or 20

1.560

2

49-Q-0.1

0.1

12.5

2.6

45

8

0.1

38

15 or 20

0.030

2

49-Q-0.2

0.2

12.5

2.7

45

8

0.2

38

15 or 20

0.060

2

49-Q-0.5

0.5

12.5

3

45

8

0.5

38

15 or 20

0.150

2

49-Q-1

1

12.5

3.5

45

8

1

38

15 or 20

0.300

2

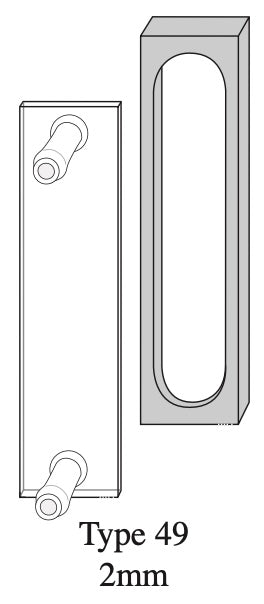

49-Q-2

2

12.5

4.5

45

8

2

38

15 or 20

0.600

2

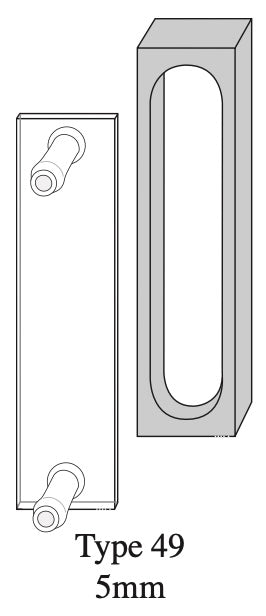

49-Q-5

5

12.5

7.5

45

8

5

38

15 or 20

1.560

2
