Description

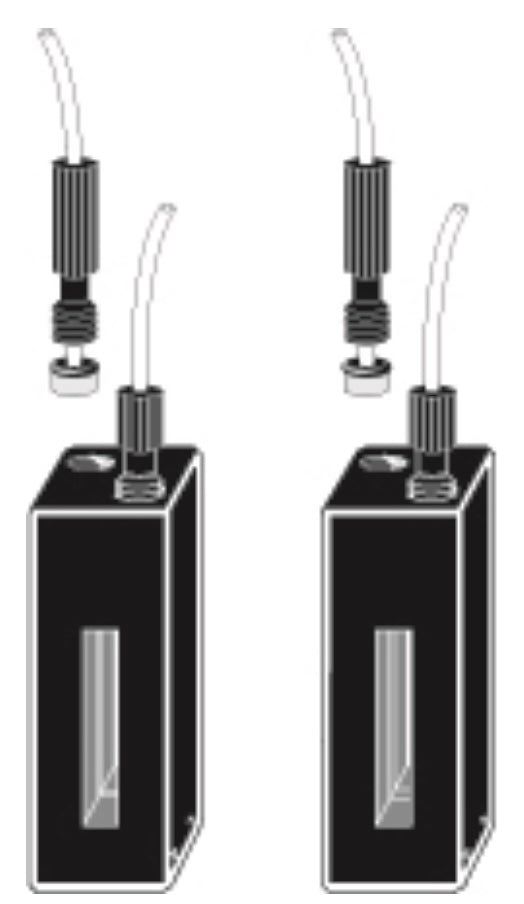

This series of flow cell is typified by a tall sample compartment with a window height of 17.5mm for use in both 8.5 and 15mm 'Z' dimension situations. Path lengths as short as 0.01mm are available in this range. Smooth flow characteristics at very short path lengths are achieved with a bypass facility at each side of the window which also avoids increased pressure in the cell and helps to minimize air bubbles. The width of the sample chamber is 4mm. The PTFE inlet and outlet tubes are connected into the flow cell with a M6 threaded connector. The tubing has an outer diameter of about 1.6mm and an inner diameter of about 1mm. The length of the tubing is approximately 400mm. Each cell is supplied with an inlet and an outlet tube. Extra tubing sets may be purchased: Starna M6-SET Pair of M6 Fittings.
Starna 584.4-Q Series M6 Threaded Short Path Length Flow Cells / Window material: Quartz, 170-2700nm
|
Starna Catalog No |
Path Length (mm) |
Ext Width (mm) |
Ext Length (mm) |
Ext Height (mm) |
Int Width (mm) |
Int Length (mm) |
Int Height (mm) |
"Z" Dim- ension (mm) |
Nominal Volume (ml) |
Number Polished Windows |
|
584.4-Q-0.01 |
0.01 |
12.5 |
12.5 |
35 |
4 |
0.01 |
17.5 |
8.5&15 |
0.036 |
2 |
|
584.4-Q-0.05 |
0.05 |
12.5 |
12.5 |
35 |
4 |
0.05 |
17.5 |
8.5&15 |
0.039 |
2 |
|
584.4-Q-0.1 |
0.1 |
12.5 |
12.5 |
35 |
4 |
0.1 |
17.5 |
8.5&15 |
0.041 |
2 |
|
584.4-Q-0.2 |
0.2 |
12.5 |
12.5 |
35 |
4 |
0.2 |
17.5 |
8.5&15 |
0.047 |
2 |
|
584.4-Q-0.5 |
0.5 |
12.5 |
12.5 |
35 |
4 |
0.5 |
17.5 |
8.5&15 |
0.095 |
2 |
|
584.4-Q-1 |
1 |
12.5 |
12.5 |
35 |
4 |
1 |
17.5 |
8.5&15 |
0.120 |
2 |
|
584.4-Q-2 |
2 |
12.5 |
12.5 |
35 |
4 |
2 |
17.5 |
8.5&15 |
0.240 |
2 |
