65 Series Cylindrical Water-Jacketed Constant Temperature Quartz Cells
65 Series Cylindrical Water-Jacketed Constant Temperature Quartz Cells - 65-Q-0.01 is backordered and will ship as soon as it is back in stock.
65 Series Cylindrical Water-Jacketed Constant Temperature Quartz Cells
Specifications
Specifications
-
Form Factor
-
Window Material
-
Pathlength (mm)0.01, 0.1, 1.0, 2.0, 5.0, 10.0, 50.0, 100.0
-
Z HeightUniversalUniversalUniversalUniversalUniversalUniversalUniversalUniversalUniversal

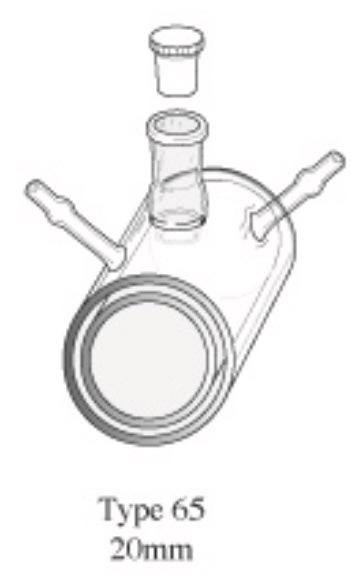

Constant temperature cell Types 62, 63 and 65 are designed with a separate chamber surrounding the sample compartment through which a temperature controlling fluid can be circulated to keep the sample at a specific temperature. Type 62 cells have connection tubes exiting from the top, Type 63 on the front face and Type 65 on the upper portion of the cell. The light beam of the spectrophotometer is not intended to pass through the water jacket. PTFE stoppers are supplied as pictured.
Starna 65 Series Cylindrical Water-Jacketed Cells / Window Material: Spectrosil Quartz, Usable Range 170-2700nm
|
Starna Catalog No |
Path Length (mm) |
Ext Diameter (mm) |
Ext Length (mm) |
Sample Chamber Width (mm) |
Sample Chamber Length (mm) |
Overall Height (mm) |
Nominal Volume (ml) |
Number Polished Windows |
|
65-Q-0.01 |
0.01 |
22 |
20 |
10 |
0.01 |
32 |
0.740 |
2 |
|
65-Q-0.1 |
0.1 |
22 |
20 |
10 |
0.1 |
32 |
0.750 |
2 |
|
65-Q-1 |
1 |
22 |
20 |
10 |
1 |
32 |
0.850 |
2 |
|
65-Q-2 |
2 |
22 |
20 |
10 |
2 |
32 |
0.960 |
2 |
|
65-Q-5 |
5 |
22 |
20 |
10 |
5 |
32 |
1.300 |
2 |
|
65-Q-10 |
10 |
22 |
20 |
10 |
10 |
32 |
0.830 |
2 |
|
65-Q-20 |
20 |
22 |
20 |
10 |
20 |
32 |
1.650 |
2 |
|
65-Q-50 |
50 |
22 |
50 |
10 |
50 |
32 |
4.130 |
2 |
|
65-Q-100 |
100 |
22 |
100 |
10 |
100 |
32 |
8.250 |
2 |
