71-Q & 72-Q Series Standard & Semi-Micro Rectangular Quartz Flow Cells, Clear & Self-Masking, 1mm & 10mm
Type 71 Standard, and 72 Semi-Micro series flow cells are suitable for use with instruments which have either 8.5 or 15 mm 'Z' dimensions, where the volume of the sample available is not a critical factor.
Flow Cell Tubulation Dimesions:
| OD | ID | Length |
| 3.5mm | 2.2mm | 10mm |
Starna 71-Q & 72-Q Standard & Semi-Micro Rectangular Flow Cells / Window material: Quartz 170 to 2700 nm
|
Starna Catalog No |
Path Length (mm) |
Ext Width (mm) |
Ext Length (mm) |
Ext Height (mm) |
Int Width (mm) |
Int Length (mm) |
Int Height (mm) |
"Z" Dim- ension (mm) |
Nominal Volume (ml) |
Number Polished Windows |
|
71-Q-10 |
10 |
12.5 |
12.5 |
48 |
7 |
10 |
40 |
fits all |
3.000 |
2 |
|
71B-Q-1 |
1 |
12.5 |
12.5 |
48 |
7 |
1 |
40 |
fits all |
0.300 |
2 |
|

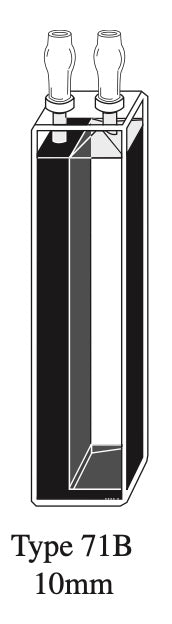

71B-Q-10 |
10 |
12.5 |
12.5 |
48 |
7 |
10 |
40 |
fits all |
3.000 |
2 |
|
72-Q-10 |
10 |
12.5 |
12.5 |
48 |
4 |
10 |
40 |
fits all |
1.800 |
2 |
|
72B-Q-1 |
1 |
12.5 |
12.5 |
48 |
4 |
1 |
40 |
fits all |
0.180 |
2 |
|

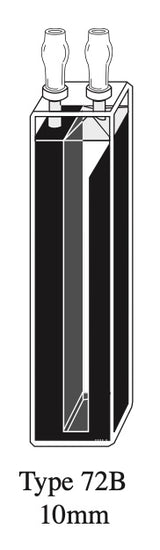

72B-Q-10 |
10 |
12.5 |
12.5 |
48 |
4 |
10 |
40 |
fits all |
1.800 |
2 |
71-Q & 72-Q Series Standard & Semi-Micro Rectangular Quartz Flow Cells, Clear & Self-Masking, 1mm & 10mm - 71-Q-10 is backordered and will ship as soon as it is back in stock.
