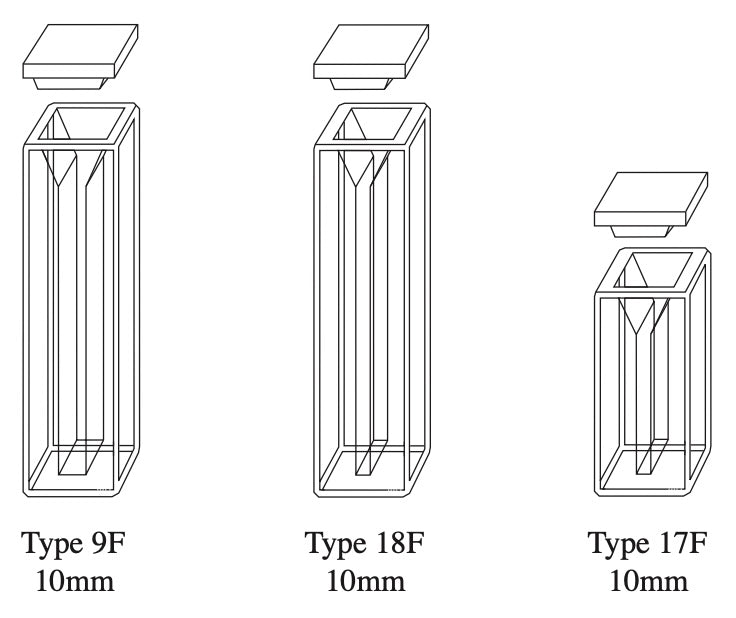

9F, 17F, 18F Series Semi-Micro & Micro Open Top Quartz Fluorometer Cells
9F, 17F, 18F Series Semi-Micro & Micro Open Top Quartz Fluorometer Cells - 9F-Q-10 is backordered and will ship as soon as it is back in stock.
9F, 17F, 18F Series Semi-Micro & Micro Open Top Quartz Fluorome...
Specifications
Specifications
-
Form Factor
-
Window Material
-
Pathlength (mm)
-
Z HeightUniversalUniversalUniversal
Smaller volume Types 9F, 17F & 18F are identical to the Type 9 SemiMicro, Type 17 ShortMicro and Type 18 Micro range, except that all cell walls and the base are optically polished.
Starna 9F, 17F, 18F Series Open Top Fluorometer Cells / Window Material: Spectrosil Quartz, Usable Range: 170-2700nm
|
Starna Catalog No |
Path Length (mm) |
Ext Width (mm) |
Ext Length (mm) |
Ext Height (mm) |
Int Width (mm) |
Int Length (mm) |
Nominal Volume (ml) |
Number Polished Windows |
Polished Base |
|

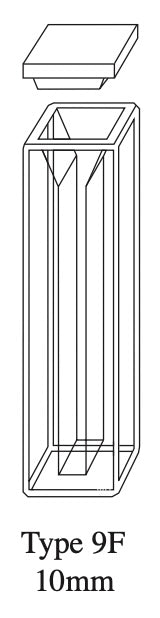

9F-Q-10 |
10 |
12.5 |
12.5 |
45 |
4 |
10 |
1.400 |
4 |
1 |
|

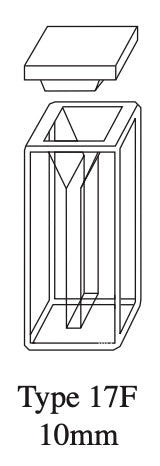

17F-Q-10 |
10 |
12.5 |
12.5 |
25 |
2 |
10 |
0.400 |
4 |
1 |
|
18F-Q-10 |
10 |
12.5 |
12.5 |
45 |
2 |
10 |
0.700 |
4 |
1 |
