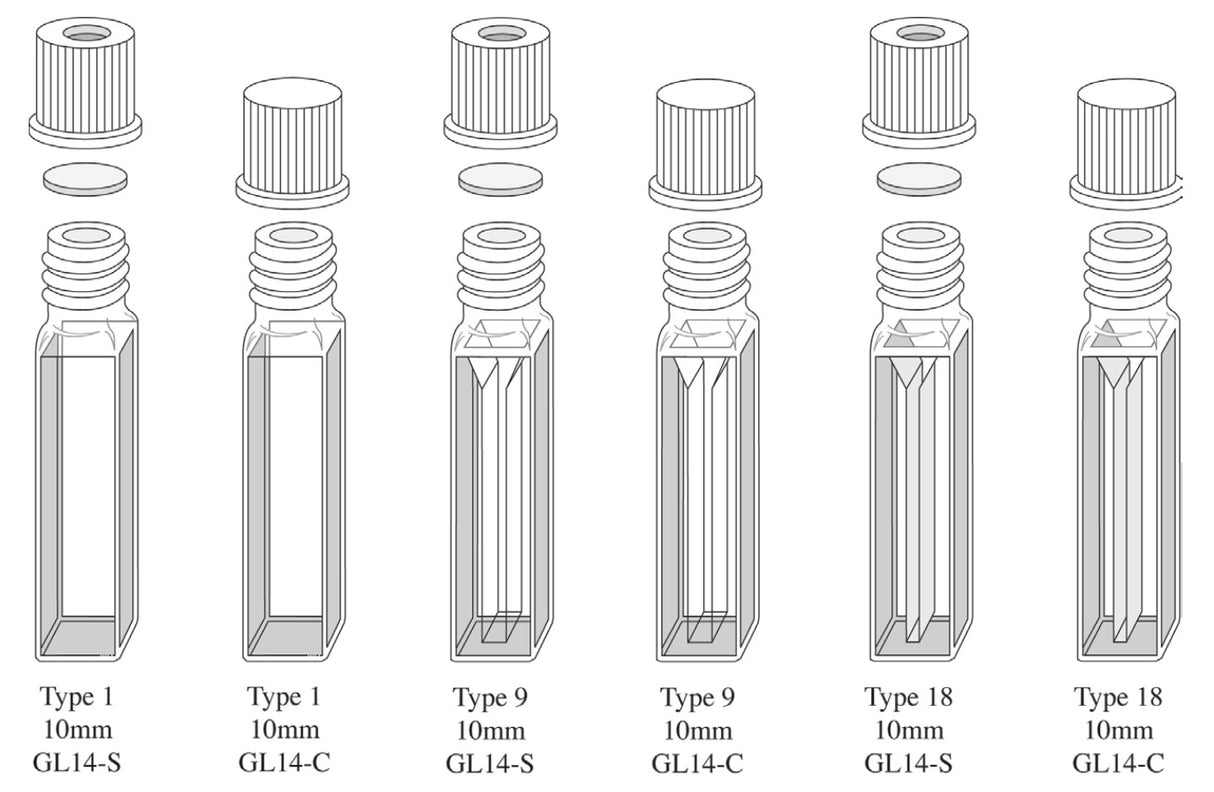

GL14 Series Rectangular Screw Cap Cuvettes, Quartz & Special Optical Glass, 10mm
Cell types with suffix GL14 are able to be used under anaerobic conditions. Cells designated with GL14 have a standard GL14 threaded top and cap which can be either a septum cap GL14-S or a plain closed cap GL14-C. Each cap contains a silicon seal to give you an air tight fit. The external diameter of the cap along the bottom rim is close to 20mm.
For replacement caps, see GL14 Closed-Septum-Insert caps.
Starna GL14 Rectangular Screw Cap Cells / Window material: Special Optical Glass, 320-2500nm
|
Starna Catalog No |
Description |
Path Length (mm) |
Ext Width (mm) |
Ext Length (mm) |
Ext Height (mm) |
Int Width (mm) |
Int Length (mm) |
Nominal Volume (ml) |
Number Polished Windows |
|
1-SOG-10-GL14-C |
Closed Cap, Standard |
10 |
12.5 |
12.5 |
68 |
10 |
10 |
3.500 |
2 |
|
1-SOG-10-GL14-S |
Septum Cap, Standard |
10 |
12.5 |
12.5 |
68 |
10 |
10 |
3.500 |
2 |
Starna GL14 Rectangular Screw Cap Cells / Window material: Quartz, 170-2700nm
|
Starna Catalog No |
Description |
Path Length (mm) |
Ext Width (mm) |
Ext Length (mm) |
Ext Height (mm) |
Int Width (mm) |
Int Length (mm) |
Nominal Volume (ml) |
Number Polished Windows |
|

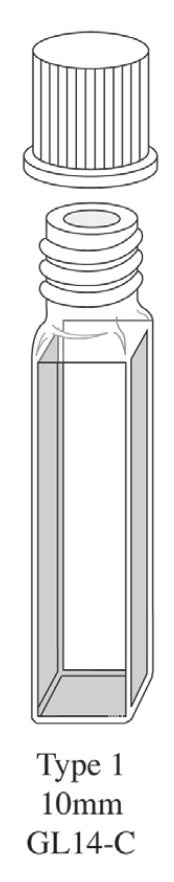

1-Q-10-GL14-C |
Closed Cap, Standard |
10 |
12.5 |
12.5 |
68 |
10 |
10 |
3.500 |
2 |
|

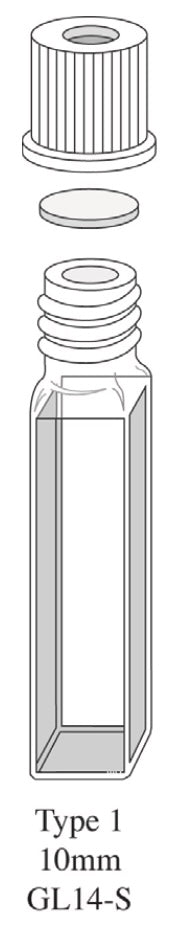

1-Q-10-GL14-S |
Septum Cap, Standard |
10 |
12.5 |
12.5 |
68 |
10 |
10 |
3.500 |
2 |
|

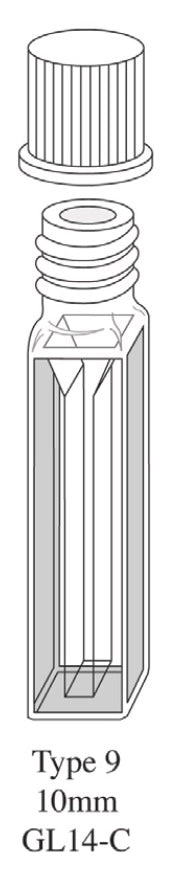

9-Q-10-GL14-C |
Closed Cap, Semi-Micro |
10 |
12.5 |
12.5 |
68 |
4 |
10 |
1.400 |
2 |
|

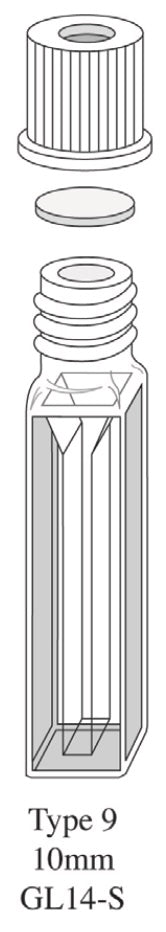

9-Q-10-GL14-S |
Septum Cap, Semi-Micro |
10 |
12.5 |
12.5 |
68 |
4 |
10 |
1.400 |
2 |
|

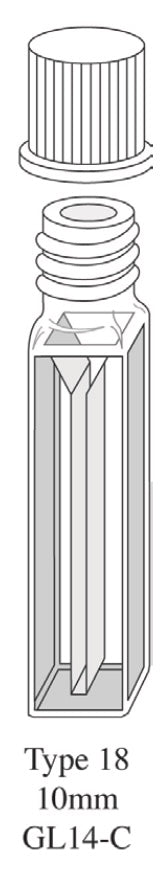

18-Q-10-GL14-C |
Closed Cap, Micro |
10 |
12.5 |
12.5 |
68 |
2 |
10 |
0.700 |
2 |
|

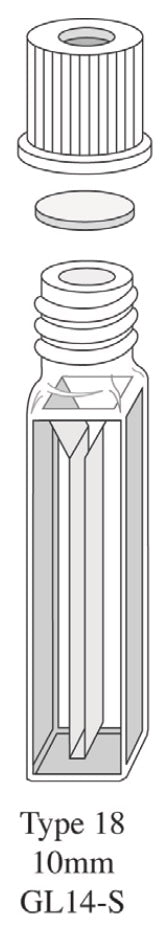

18-Q-10-GL14-S |
Septum Cap, Micro |
10 |
12.5 |
12.5 |
68 |
2 |
10 |
0.700 |
2 |
