GS Series Cells with Quartz-to-Pyrex Graded Seal
Quartz to Pyrex graded seals can be fused to most rectangular quartz cells, allowing them to be joined to other borosilicate apparatus. The price indicated is for the graded seal, the cost of fusing to a cell plus the cost of the chosen cell. The dimensions of the normal graded seals used are OD 10 mm, ID 8 mm, Length 70mm.

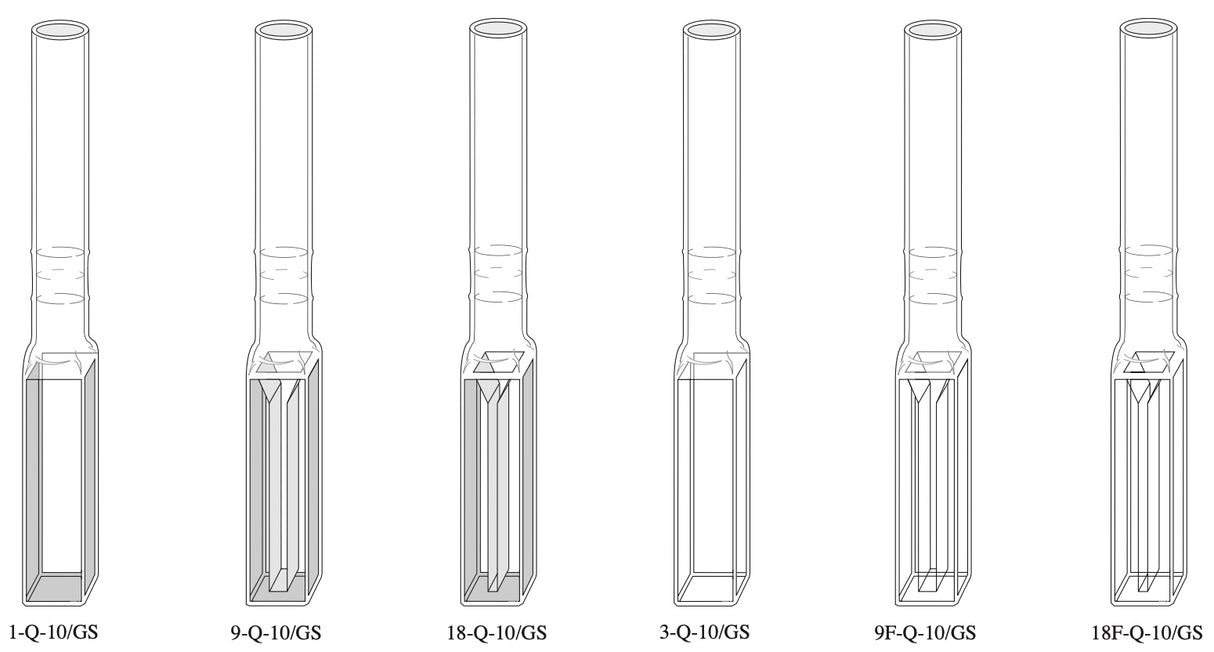

Starna GS Series Cells with Quartz-to-Pyrex Graded Seal / Window Material: Spectrosil Quartz, Usable Range: 170-2700nm
|
Starna Catalog No |
Path Length (mm) |
Ext Width (mm) |
Ext Length (mm) |
Ext Height (mm) |
Int Width (mm) |
Int Length (mm) |
Nominal Volume (ml) |
Number Polished Windows |
|

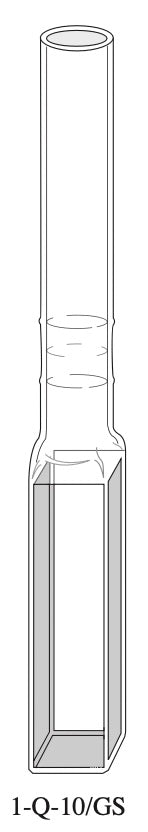

1-Q-10/GS |
10 |
12.5 |
12.5 |
115 |
10 |
10 |
3.500 |
2 |
|

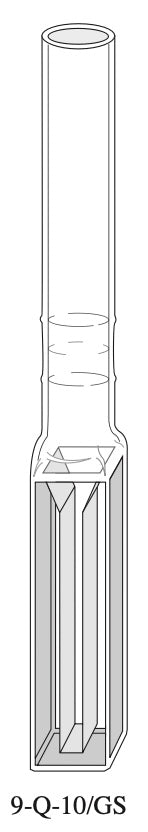

9-Q-10/GS |
10 |
12.5 |
12.5 |
115 |
4 |
10 |
1.400 |
2 |
|

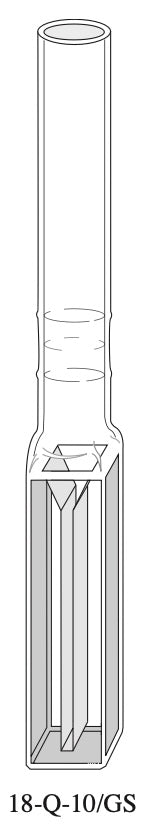

18-Q-10/GS |
10 |
12.5 |
12.5 |
115 |
2 |
10 |
0.700 |
2 |
|

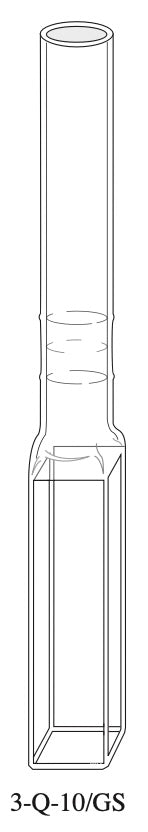

3-Q-10/GS |
10 |
12.5 |
12.5 |
115 |
10 |
10 |
3.500 |
5 |
|

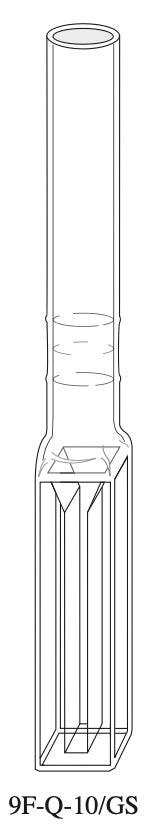

9F-Q-10/GS |
10 |
12.5 |
12.5 |
115 |
4 |
10 |
1.400 |
5 |
|

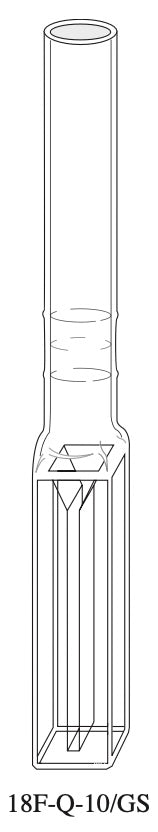

18F-Q-10/GS |
10 |
12.5 |
12.5 |
115 |
2 |
10 |
0.700 |
5 |
GS Series Cells with Quartz-to-Pyrex Graded Seal - 1-Q-10/GS is backordered and will ship as soon as it is back in stock.
