Type 4 & 24 Triangular Quartz Fluorometer Cells

SKU
$29900 USD
Shipping calculated at checkout.
View Other Cells and Cuvettes

Specifications
  • Form Factor
    Triangular
  • Window Material
    UV Quartz
  • Pathlength (mm)
    10
  • Z Height
    Universal

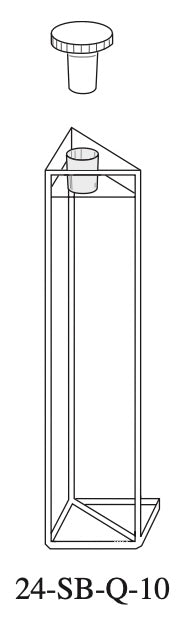

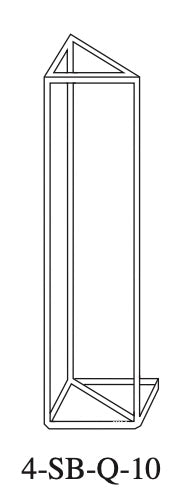

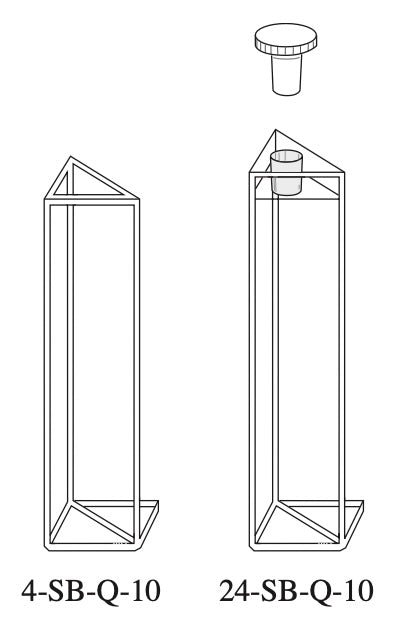

Triangular fluorometer cells Type 4, with open top or Type 24 with PTFE stopper, are useful for front surface fluorescence measurement. This technique is employed when the sample is too dense for the transmission of excitation or emission energy. Analysis is made by exciting the face of the sample at an angle of 45° to both the excitation source and the emission detector.

Starna Type 4 & 24 Triangular Fluorometer Cells / Window Material: Spectrosil Quartz, Usable Range: 170-2700nm

Starna

Catalog

No

Path

Length

(mm)

Ext

Width

(mm)

Ext

Length

(mm)

Ext

Height

(mm)

Int

Width

(mm)

Int

Length

(mm)

Nominal

Volume

(ml)

Number

Polished

Windows

4-SB-Q-10

Surface

12.5

12.5

45

10

10

1.700

3

24-SB-Q-10

Surface

12.5

12.5

48

10

10

1.700

3
