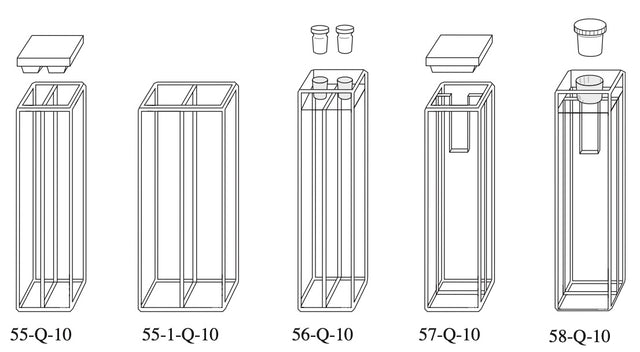

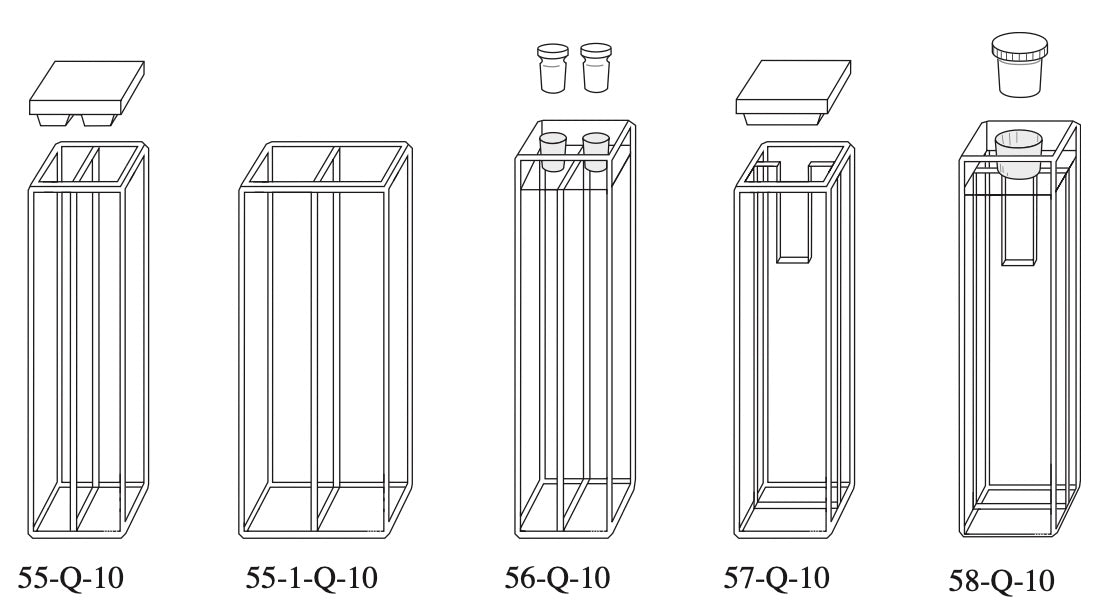

Type 55, 56, 57, 58 Tandem or Divided Rectangular Quartz Fluorometer Cells
Types 55, 56, 57 and 58 are all cells with two chambers which can be used either in parallel or series and with the exception of Type 551, have all walls polished. Types 57 and 58 have the facility for the intentional mixing of two liquids within the cell itself. PTFE stoppers supplied for type 56 and type 58 as pictured.
Starna Type 55, 56, 57, 58 Tandem or Divided Rectangular Cells / Window Material: Spectrosil Quartz, Usable Range: 170-2700nm
|
Starna Catalog No |
Path Length (mm) |
Ext Width (mm) |
Ext Length (mm) |
Ext Height (mm) |
Int Width (mm) |
Int Length (mm) |
Nominal Volume (ml) |
Number Polished Windows |
|

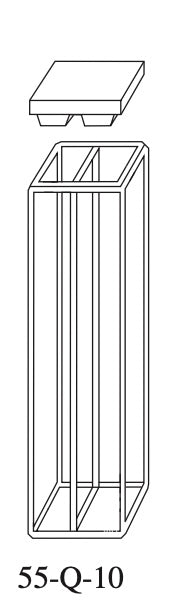

55-Q-10 |
2x10 |
12.5 |
12.5 |
45 |
10 |
2x4.375 |
2x1.500 |
6 |
|

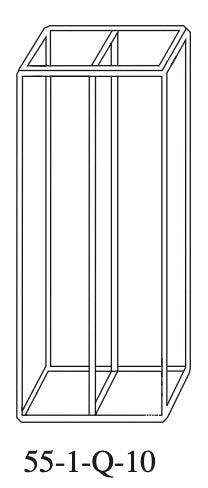

55-1-Q-10 |
2x10 |
12.5 |
23.75 |
45 |
10 |
2x10 |
2x3.500 |
3 |
|
56-Q-10 |
2x10 |
12.5 |
12.5 |
48 |
10 |
2x4.375 |
2x1.500 |
6 |
|

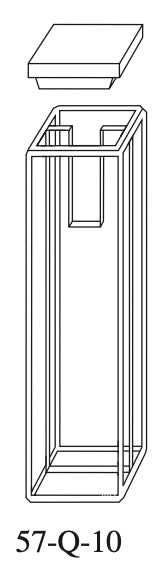

57-Q-10 |
2x10 |
12.5 |
12.5 |
45 |
10 |
2x4.375 |
2x1.000 |
6 |
|

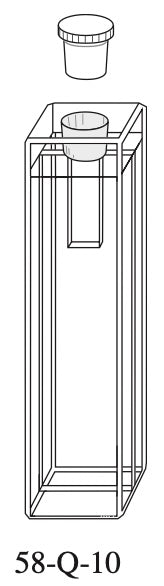

58-Q-10 |
2x10 |
12.5 |
12.5 |
48 |
10 |
2x4.375 |
2x1.000 |
2 |
Type 55, 56, 57, 58 Tandem or Divided Rectangular Quartz Fluorometer Cells - 55-Q-10 is backordered and will ship as soon as it is back in stock.
